MX-3114N OPERATIONAL DESCRIPTIONS 13 – 10

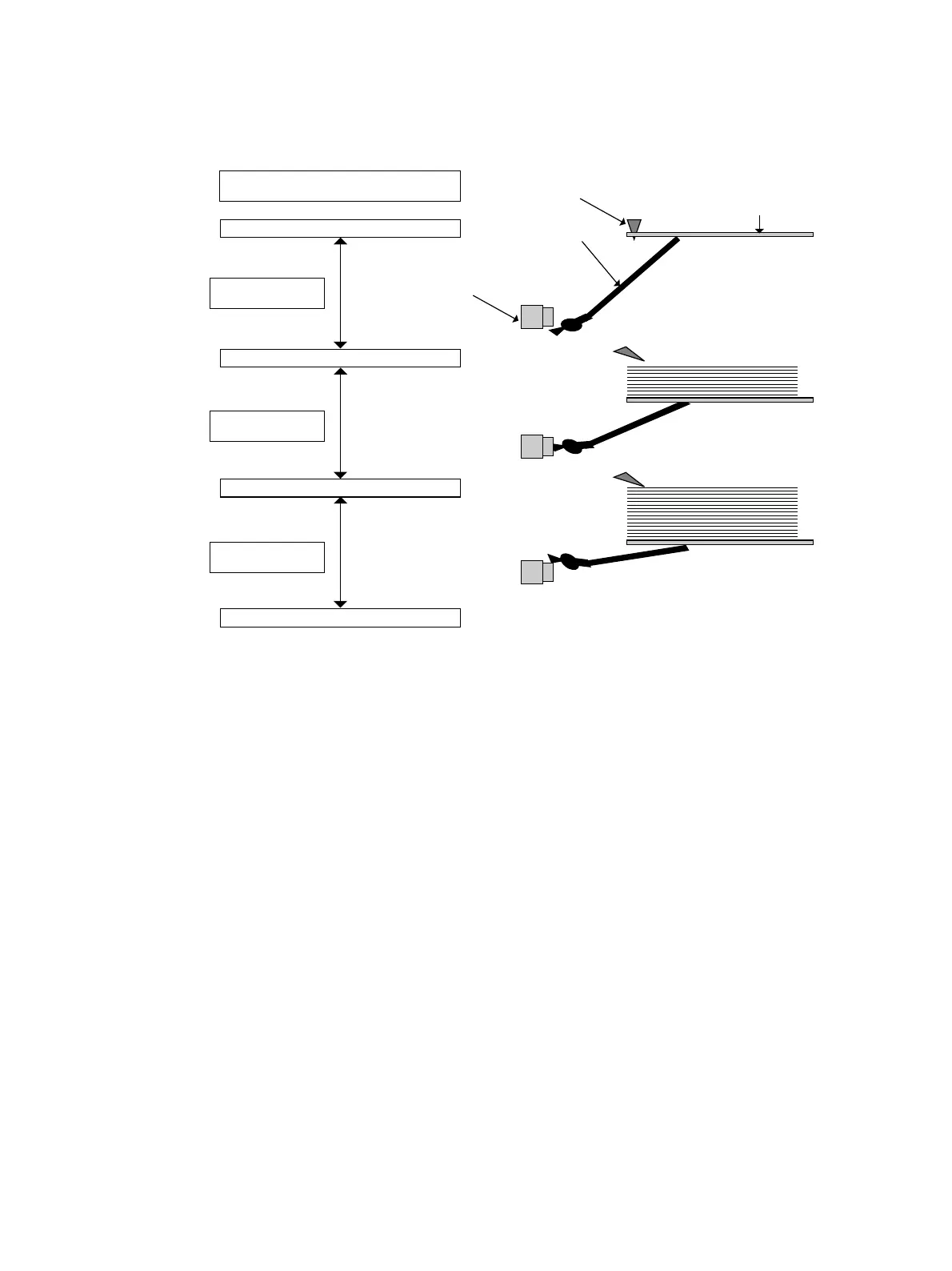

(4) Paper remaining quantity detection method
• The paper remaining quantity is judged from the number of rotations of the remaining quantity sensor from starting the lift-up operation of the
paper feed tray to turning ON the upper limit sensor.
The no-paper detection sensor detects
the state of no remaining paper.
During no-paper detection
1/3 Field
Sensor logic: Low
Remaining paper 1/3 position
Remaining paper 2/3 position
Remaining paper 3/3 position
2/3 Field
Sensor logic: Hi
3/3 Field
Sensor logic: Low
CPED
(paper sensor)
Remaining Paper
Detection Actuator
Turn plate
CSPD
(remaining paper detection)
(Figure showing state transition of the remaining paper detection sensor during tray elevation and
changes in status according to the number of remaining sheets)

Sharp MX-2314N Specifications

General

Print Technology	Laser
Print Speed	23 ppm
Print Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Copy Speed	23 cpm
Copy Resolution	600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Duplex Printing	Yes
Connectivity	USB, Ethernet
Functions	Print, Copy, Scan, Fax
Paper Size	A3, A4, A5, B4, B5
Max Paper Size	A3
Original Size	A3
