BEFORE USING THE MACHINE►BEFORE USING THE MACHINE

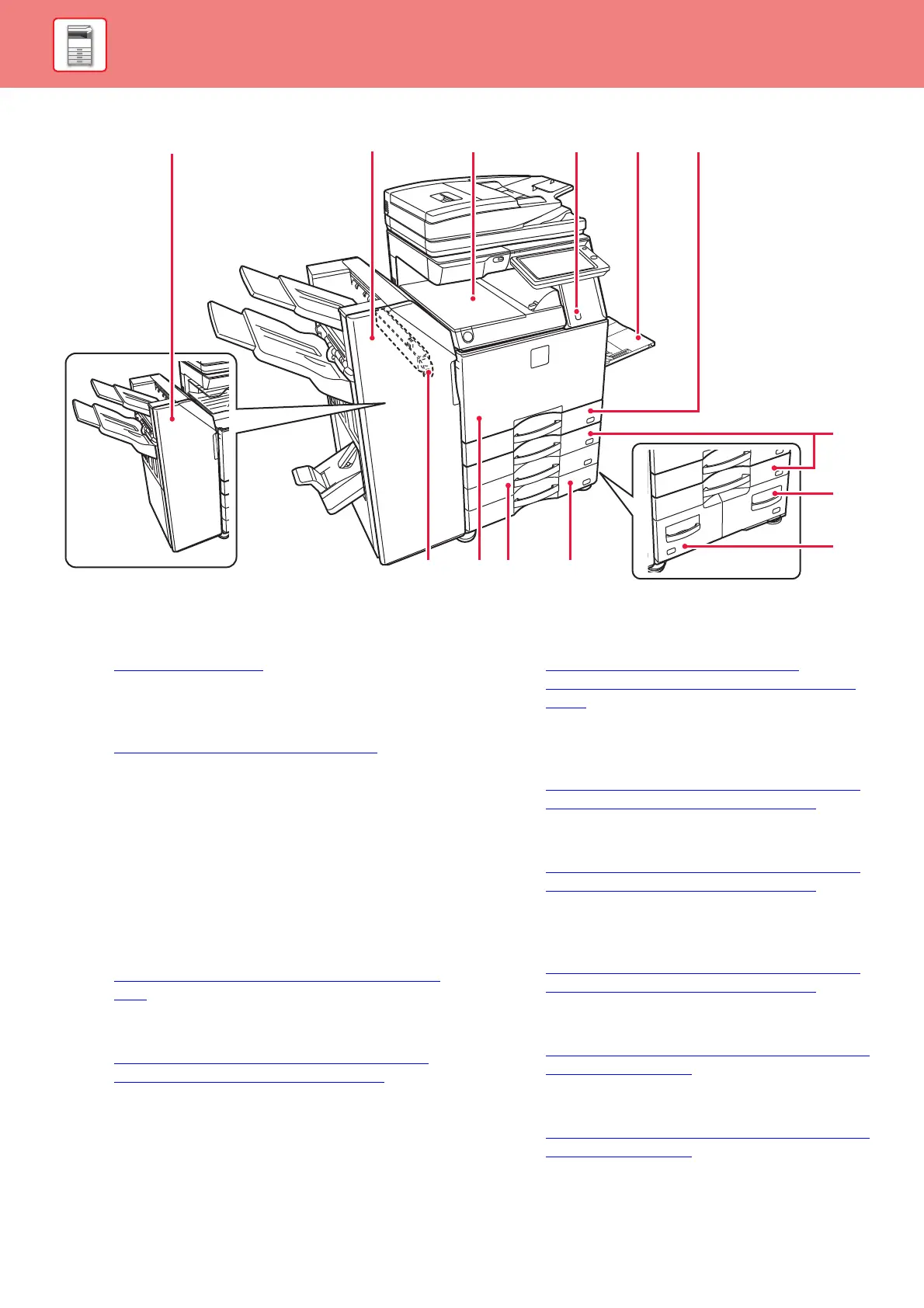

(8) Finisher*
This staples paper. A punch module can also be installed
to punch holes in output paper.
► FINISHER (page 1-100)
(9) Saddle Stitch Finisher*
This staples and folds paper. A punch module can also
be installed to punch holes in output paper.
► SADDLE STITCH FINISHER (page 1-103)
(10) Paper pass unit*
Relay between the machine and the finisher or saddle finisher.
(11) Person sensor
This sensor detects the presence of a person that
approaches the machine, and automatically wakes the
machine from sleep mode.
(12) Bypass tray
Use this tray to feed paper manually.
When loading paper larger than 8-1/2" x 11"R or A4R,
pull out the extension guide.
► LOADING PAPER INTO THE BYPASS TRAY (page
1-61)
(13) Tray 1
Store paper in this tray.
► TRAY 1 - 4 (when a stand/550/2x550/3x550/ 2100
sheet paper drawer is installed) (page 1-57)
(14) Punch module
This is used to punch holes in output. Requires an inner
finisher, finisher, or saddle stitch finisher.
(15) Front cover
Open this cover to switch the main power switch to "On"
or "Off" or to replace a toner cartridge.
► TURNING ON THE POWER (page 1-10)
► REPLACEMENT OF TONER CARTRIDGE (page
1-126)
(16) Tray 3 (when a stand/2x550/3x550 sheet paper
drawer is installed)*
Store paper in this tray.
► TRAY 1 - 4 (when a stand/550/2x550/3x550/ 2100
sheet paper drawer is installed) (page 1-57)
(17)
Tray 4 (when a stand/3x550 sheet paper drawer is installed)*
Store paper in this tray.
► TRAY 1 - 4 (when a stand/550/2x550/3x550/ 2100
sheet paper drawer is installed) (page 1-57)
(18) Tray 2 (when a stand/550/2x550/3x550/2100 sheet
paper drawer is installed)*
Store paper in this tray.
► TRAY 1 - 4 (when a stand/550/2x550/3x550/ 2100
sheet paper drawer is installed) (page 1-57)
(19)
Tray 4 (when a stand/2100 sheet paper drawer is installed)*
Store paper in this tray.
► TRAY 3 - 4 (when a stand/2100 sheet paper drawer
is installed) (page 1-59)
(20)
Tray 3 (when a stand/2100 sheet paper drawer is installed)*
Store paper in this tray.
► TRAY 3 - 4 (when a stand/2100 sheet paper drawer
is installed) (page 1-59)
* Optional
(16)(14) (15) (17)
(18)
(19)
(20)
(10) (11) (12) (13)
(9)
(8)
