BEFORE USING THE MACHINE►PERIPHERAL DEVICES
INNER FINISHER
This device outputs sorted paper while staggering each set of paper. As needed, it staples each set.
To punch holes in printed paper, install an optional hole punch module.
PART NAMES

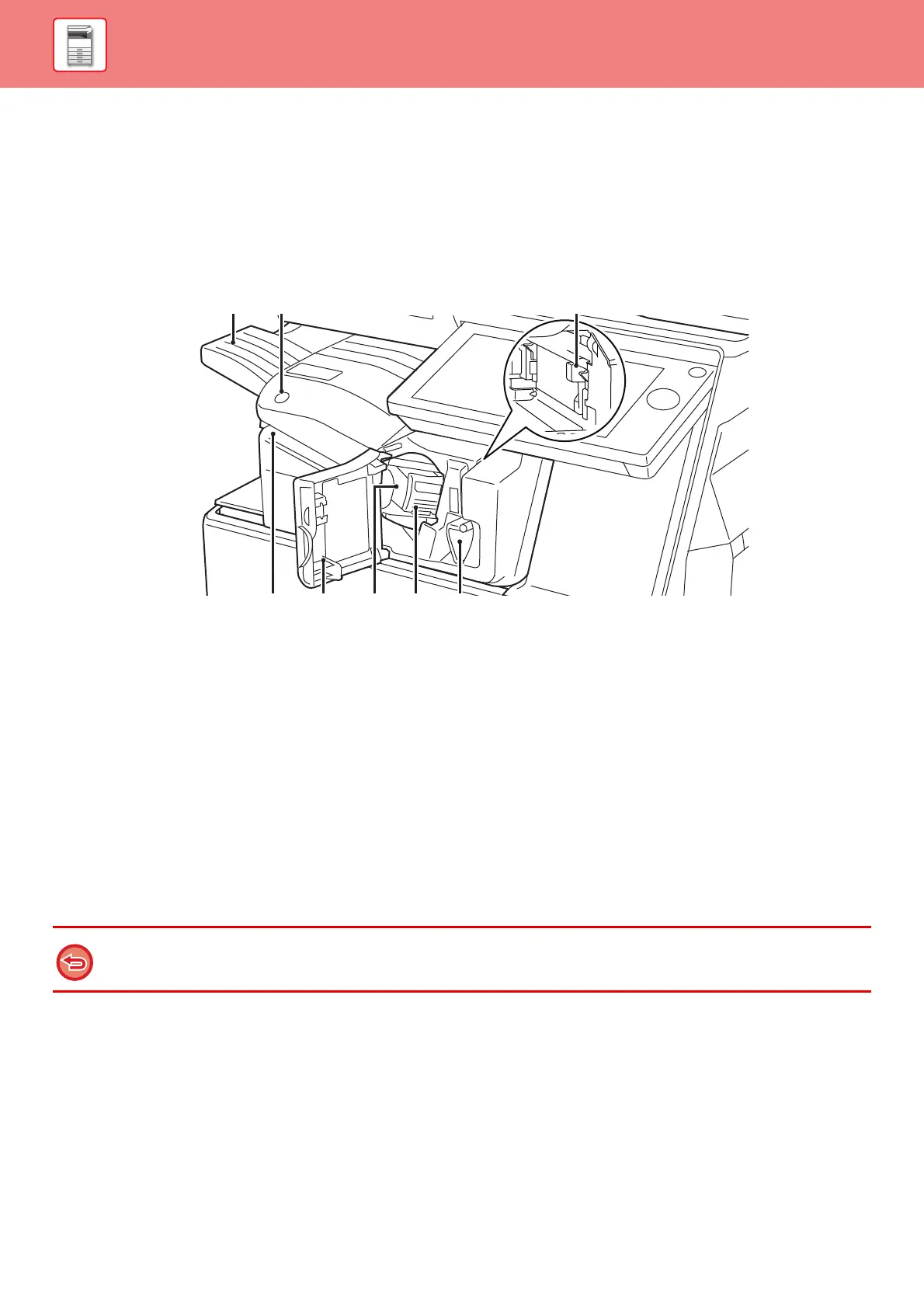

The following describes the parts that appear when the finisher is open.
(1) Output tray
Stapled and offset output is delivered to this tray.
The tray is slidable. To print on large paper such as A3
size, extend the tray.
(2) Manual staple key
Press to execute manual stapling.
(3) Punch waste box (when a punch module is installed)
This stores punch waste discharged from punching.
(4) Insertion slot
Place the paper that you want to staple in this slot.
Maximum thickness 4 mm (45 sheets).
(5) Front cover
Open this cover to remove a paper misfeed, replace
staples, remove a staple jam, or remove the punch scrap
case.
(6) Staple case
This holds the staple cartridge.
Pull the case out to replace the staple cartridge or
remove a staple jam.
(7) Staple case release lever
Use this lever to remove the staple case.
(8) Lever
Use this lever to move the finisher in order to remove a
paper misfeed, replace staples, or remove a staple jam.
(1) (3)(2)
(8)(7)(4) (5) (6)
• The inner finisher cannot be installed at the same time as the finisher or saddle stitch finisher.
• Exercise caution when you turn on the power and when printing is taking place, as the output tray may move up and down.
To Next Page
