BEFORE USING THE MACHINE►BEFORE USING THE MACHINE
PART NAMES AND FUNCTION

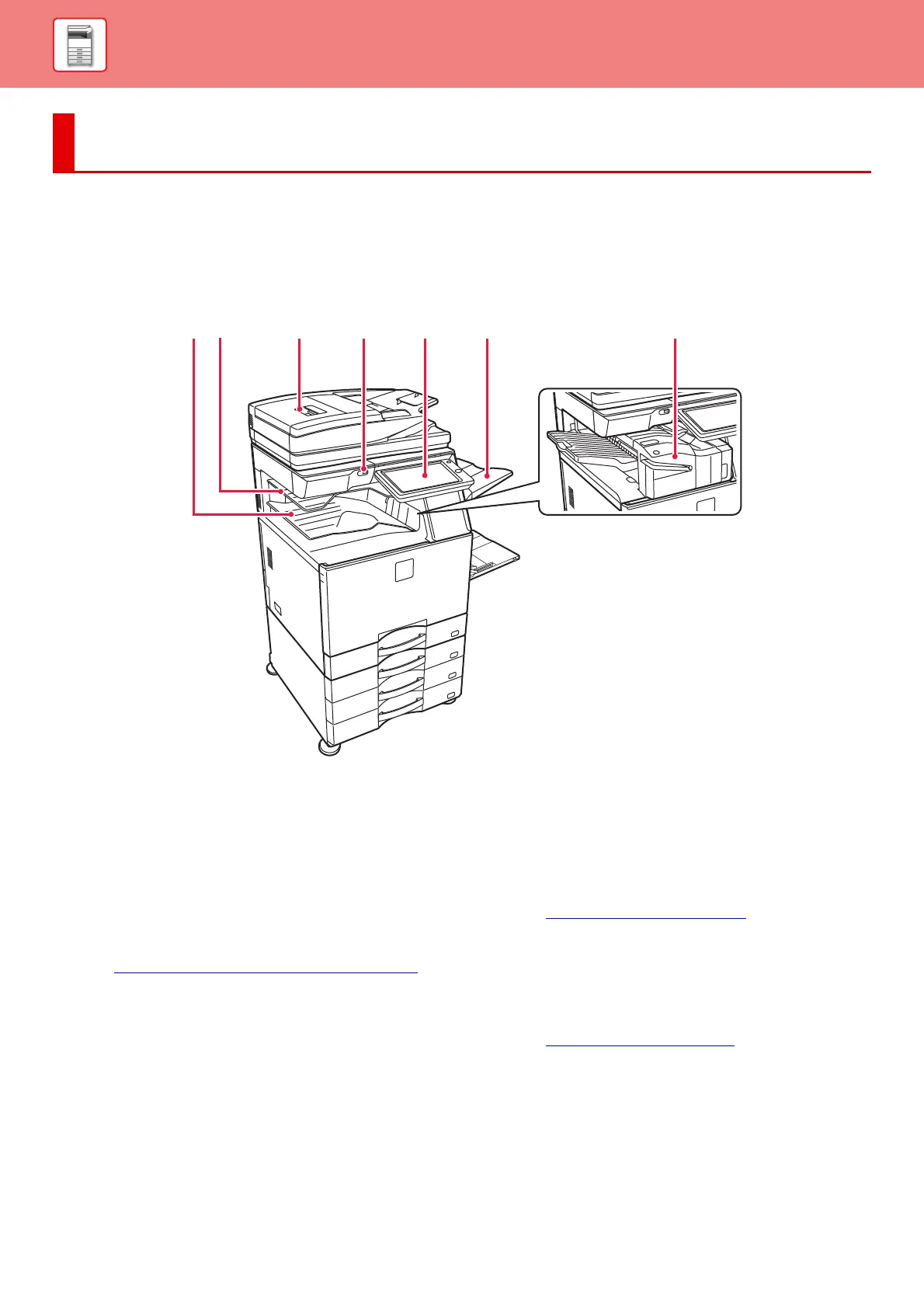

EXTERIOR
(1) Output tray (exit tray cabinet)*
Output is delivered to this tray.
(2) Job separator tray (upper tray)*
Received faxes and printed papers are delivered to this
tray.
(3) Automatic document feeder
This automatically feeds and scans multiple originals.
2-sided originals can be automatically scanned.
► AUTOMATIC DOCUMENT FEEDER (page 1-67)
(4) USB port (A type)
This is used to connect a USB device such as a USB
memory device to the machine.
Supports USB 2.0 (Hi-Speed).
(5) Operation panel
This panel hosts the [Power] button, [Power Save]
button/indicator, error indicater, [Home Screen] button,
main power button, data notification indicater and touch
panel.
Use the touch panel to operate each of these functions.
► OPERATION PANEL (page 1-8)
(6) Exit tray unit (right tray)*
Set this tray as the output tray if needed.
(7) Inner finisher*
This staples paper. A punch module can also be installed
to punch holes in output paper.
► INNER FINISHER (page 1-96)
* Optional
