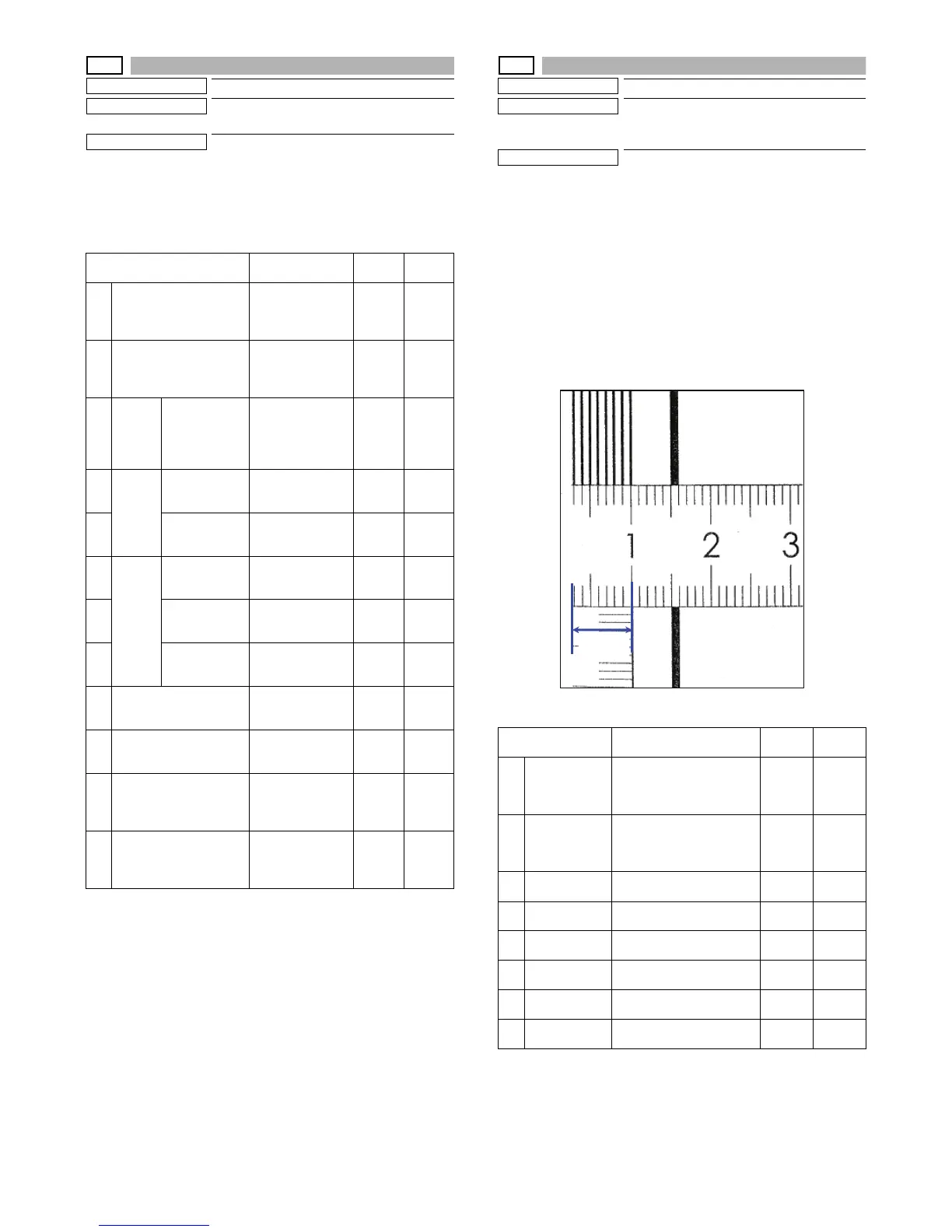

MX-M264U SIMULATION 6 – 57
50-6
Purpose
Adjustment
Function (Purpose)
Used to adjust the copy image position and
the image loss. (RSPF mode)
Section
RSPF
Operation/Procedure
1) Select an adjustment target item with scroll key on the touch
panel.
2) Enter the set value with 10-key.
3) Press [OK] key. (The set value is saved.)
Item A, B: When the adjustment value is increased, the scan timing
is delayed.
Item C - H: When the adjustment value is increased, the image loss
is increased.
Item E - H: When a shadow image appears on the rear edge,
increase the adjustment value to delete the shadow.
Item A - H: 1 step = 0.1mm change
50-7
Purpose
Adjustment
Function (Purpose)
Used to adjust the copy image position and
the image loss (RSPF mode). (This simula-
tion is a simplified version of SIM 50-6.)
Section
RSPF
Operation/Procedure
1) Select an adjustment target item with scroll key on the touch
panel.
2) Set item A (L4) and item B (L5) to 0.
3) Set the magnification ratio to 200%, and make a copy in the
RSPF duplex mode.
4) Measure the size of the printed image. Enter the actual mea-
surement value of distance a (RSPF) to L4 and L5 in the unit of
0.1mm.
(Adjustment value "1" for 0.1mm)
L4: Distance a (RSPF front surface: 200%) (unit: 0.1mm)
L5: Distance a (RSPF back surface: 200%) (unit: 0.1mm)
5) Press [EXECUTE] key. (The set value is saved.)
Item C - H: When the adjustment value is increased, the image loss
is increased.
Item A - H: 1 step = 0.1mm change
Items C - H are linked with items C - H of SIM50-06.
Item/Display Content
Setting
range
Default
value
A SIDE1 Front surface
document scan
position
adjustment (CCD)
1 - 99 50
B SIDE2 Back surface
document scan
position
adjustment (CCD)
1 - 99 50
CImage
loss
amount
setting
SIDE1
LEAD_EDGE
(SIDE1)
Front surface lead
edge image loss
amount setting
0 - 99 20
DImage
loss
amount
setting
SIDE1
FRONT_REAR
(SIDE1)
Front surface side
image loss amount
setting
0 - 99 20
E TRAIL_EDGE
(SIDE1)
Front surface rear
edge image loss
amount setting
0 - 99 40
FImage
loss
amount
setting
SIDE2
LEAD_EDGE
(SIDE2)
Back surface lead
edge image loss
amount setting
0 - 99 20
G FRONT_REAR
(SIDE2)
Back surface side
image loss amount
setting
0 - 99 20
H TRAIL_EDGE
(SIDE2)
Back surface rear
edge image loss
amount setting
0 - 99 40
I OFSET_SPF1 SPF front surface
document off-
center adjustment
1 - 99 50
J OFSET_SPF2 SPF back surface
document off-
center adjustment
1 - 99 50
K SCAN_SPEED_SPF1 RSPF document
front surface
magnification ratio
(Sub scan)
1 - 99 50
L SCAN_SPEED_SPF2 RSPF document
back surface
magnification ratio
(Sub scan)
1 - 99 50
Item/Display Content
Setting
range
Default
value
A L4 Distance (SPF 200%,
0.1mm unit) from the front
surface image lead edge to
the scale of 10mm.
0 - 999 -
B L5 Distance (SPF 200%,
0.1mm unit) from the back
surface image lead edge to
the scale of 10mm.
0 - 999 -
C LEAD_EDGE
(SIDE1)
Front surface lead edge
image loss amount setting
0 - 99 20
D FRONT_REAR
(SIDE1)
Front surface side image
loss amount setting
0 - 99 20
E TRAIL_EDGE
(SIDE1)
Front surface rear edge
image loss amount setting
0 - 99 40
F LEAD_EDGE
(SIDE2)
Back surface lead edge
image loss amount setting
0 - 99 20
G FRONT_REAR
(SIDE2)
Back surface side image
loss amount setting
0 - 99 20
H TRAIL_EDGE
(SIDE2)
Back surface rear edge
image loss amount setting
0 - 99 40
Distance "a"
