Sharp MX-M264N Service Manual

MX-M264U DISASSEMBLY AND ASSEMBLY 10 – 24

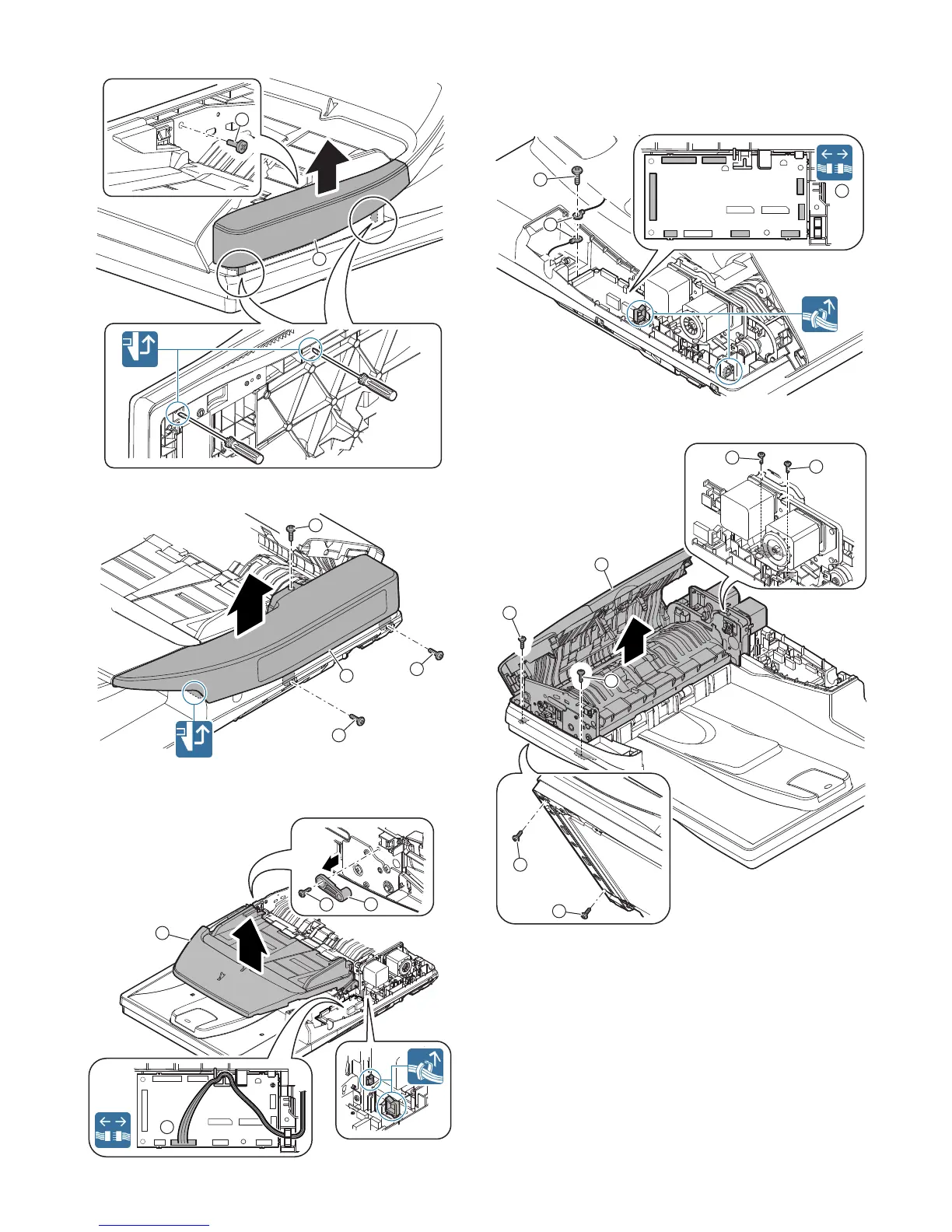

2) Remove the front cabinet.
3) Remove the rear cabinet.
4) Disconnect the connector from the RSPF driver PWB. Remove
the holder, and remove the RSPF paper feed tray unit.
C. RSPF transport unit
1) Remove the paper feed tray unit.
2) Remove the earth wire. Disconnect the connector from the
RSPF driver PWB.
3) Remove the RSPF transport unit.
