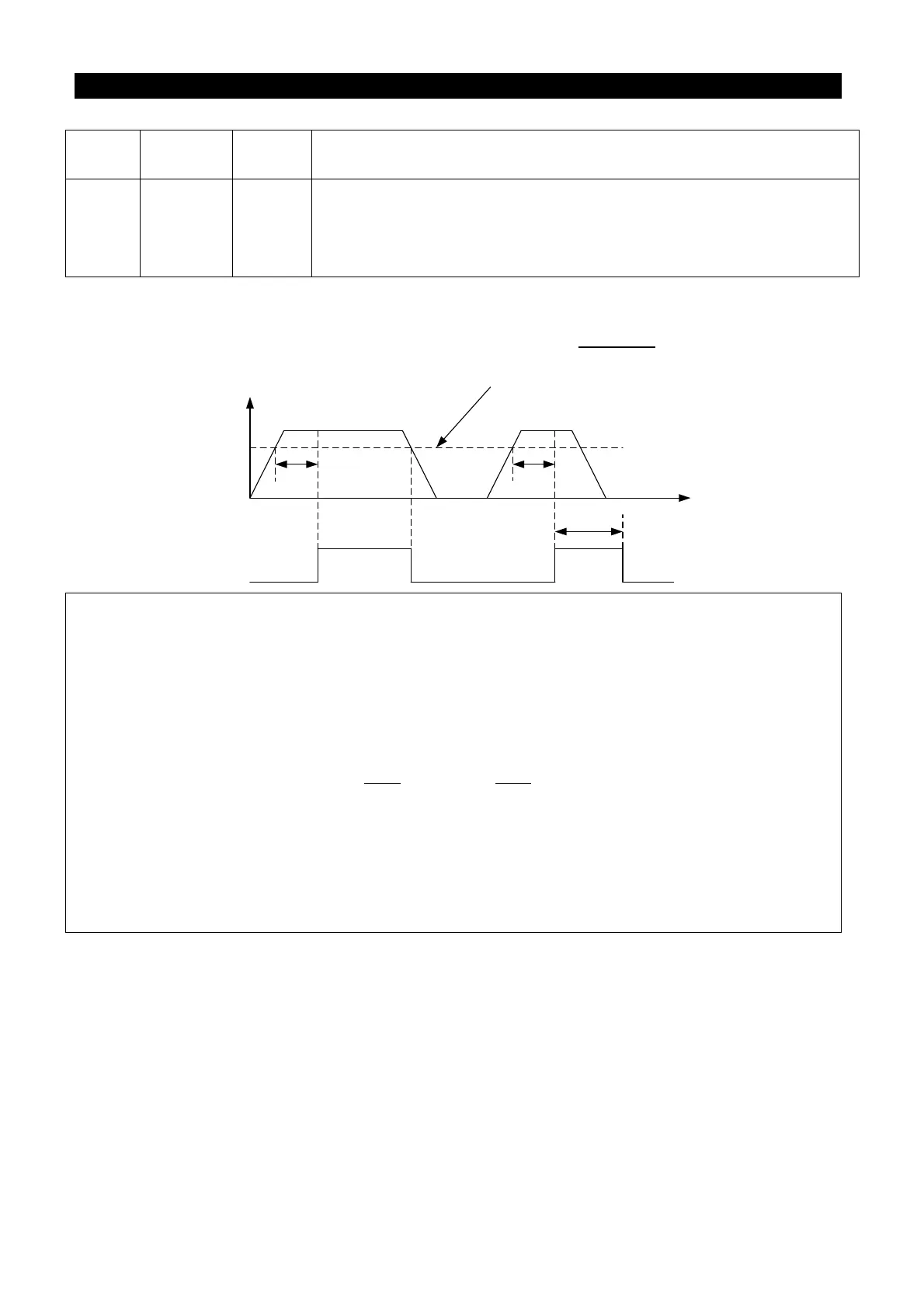

Parameter Description
Parameters
103
<Setting>
For example, FU (Output frequency detection) function (e.g., P.42/P.43=40Hz)
P.120
P.120
Output
frequency
Hz
40
Time
s
At least 100ms
OFF ON ONOFF OFF
SO2
Output frequency
detection value
P.42/P.43
Note: 1. For the multi-function output terminal SO1, the default value of P.40 is 1 which means the “SU
function. When changing the value of P.40, the corresponding function will change as shown in
the above table.
2. For the multi-function output terminal SO2, the default value of P.129 is 2 which means the “FU”
function. When changing the value of P.129, the corresponding function will change as shown in
the above table.
3. The internal structures for multi-function output terminals SO1/SO2-SE are “open collector
output.” Please refer to Section 3.5.6 and Section 3.5.7
.
4. For multi-function relay A1-B1-C1, the default set value of P.85 is 5 (i.e., the alarm function).
When the value of P.85 is revised, its function will change respectively according to the function
listed in the table above.
5. For multi-function relay A2-B2-C2, the default set value of P.130 is 0 (i.e., the run function). When
the value of P.130 is revised, its function will change respectively according to the function listed
in the table above.
Parame
ter
Factory
setting
Setting
range
Remarks
120 0 s
0.1~
3600s
1). When P.120=0
and the setting requirements of P.40 (P.85,
P.129~P.130) is met, the signal will output directly.
2). When P.120=0.1~3600 and the setting requirements of P.40 (P.85,
P.129~P.130) is met, the signal will output after a setting delay time.
