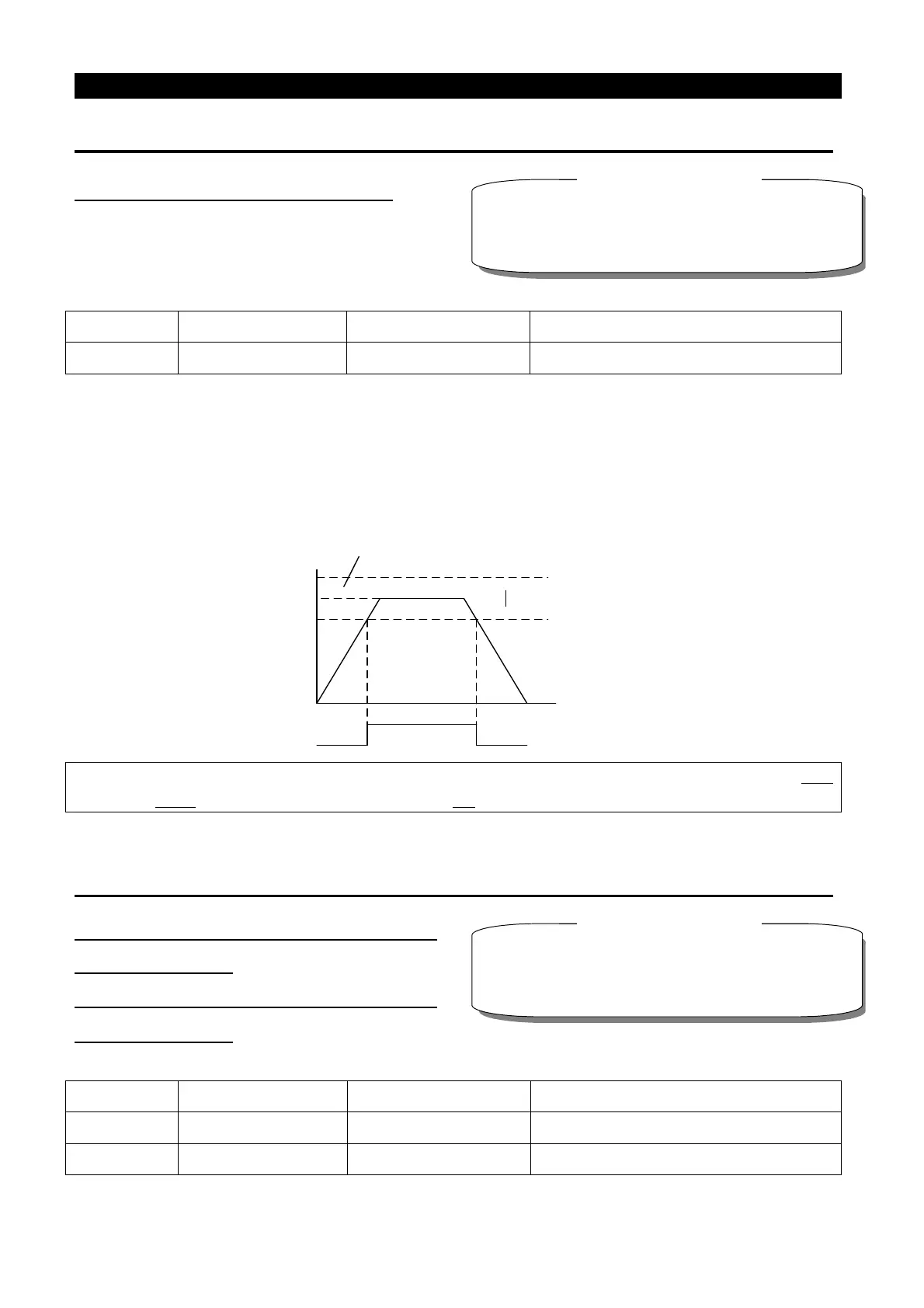

5.24 Up-to-frequency Sensitivity (P.41)
P.41 “Up-to-frequency sensitivity”
Related parameters
P.40
“Muti-function output terminal SO1-SE function selection
”
P.85
“
Function selection for multi-function relay A1-B1-C1
”
P.129
“
Function selection for multi-function output terminal SO2-SE”
P.130
“Function selection for multi-function relay A2-B2-C2"
Parameter Factory setting Setting range Remarks
41 10% 0~100% ---
<Setting>
• If P.41=5%, SU will send out signals when the output frequency enters the “5% region near
the target frequency”. For example, when the target frequency is set to 60Hz and P.41=5%,
then if the output frequency is between 60±60×5%=57Hz and 63Hz, a SU signal will be
sent out.
SO1
Adjustment
scope P.41
Output
frequency
(Hz)
Target frequency
Output signal
OFF
OFF
ON
Time（s）
Note: In this paragraph, SU is the function name for “multi-function output terminal”. Please refer to P.40
and P.13 0. For wiring, please refer to Section 3.5.
5.25 Output Frequency Detection (P.42 and P.43)
P.42 “Output frequency detection for
forward rotation”
P.43 “Output frequency detection for
reverse rotation”
Related parameters
P.40
“Muti-function output terminal SO1-SE function selection
”
P.85
“
Function selection for multi-function relay A1-B1-C1
”
P.129
“
Function selection for multi-function output terminal SO2-SE”
P.130
“Function selection for multi-function relay A2-B2-C2"
Parameter Factory setting Setting range Remarks
42 6Hz 0~650Hz ---
43 99999 0~650Hz, 99999 99999; same as P.42 setting
