Shihlin electric SF-GT Series User Manual

Parameter Description
Parameters
105
<Setting>

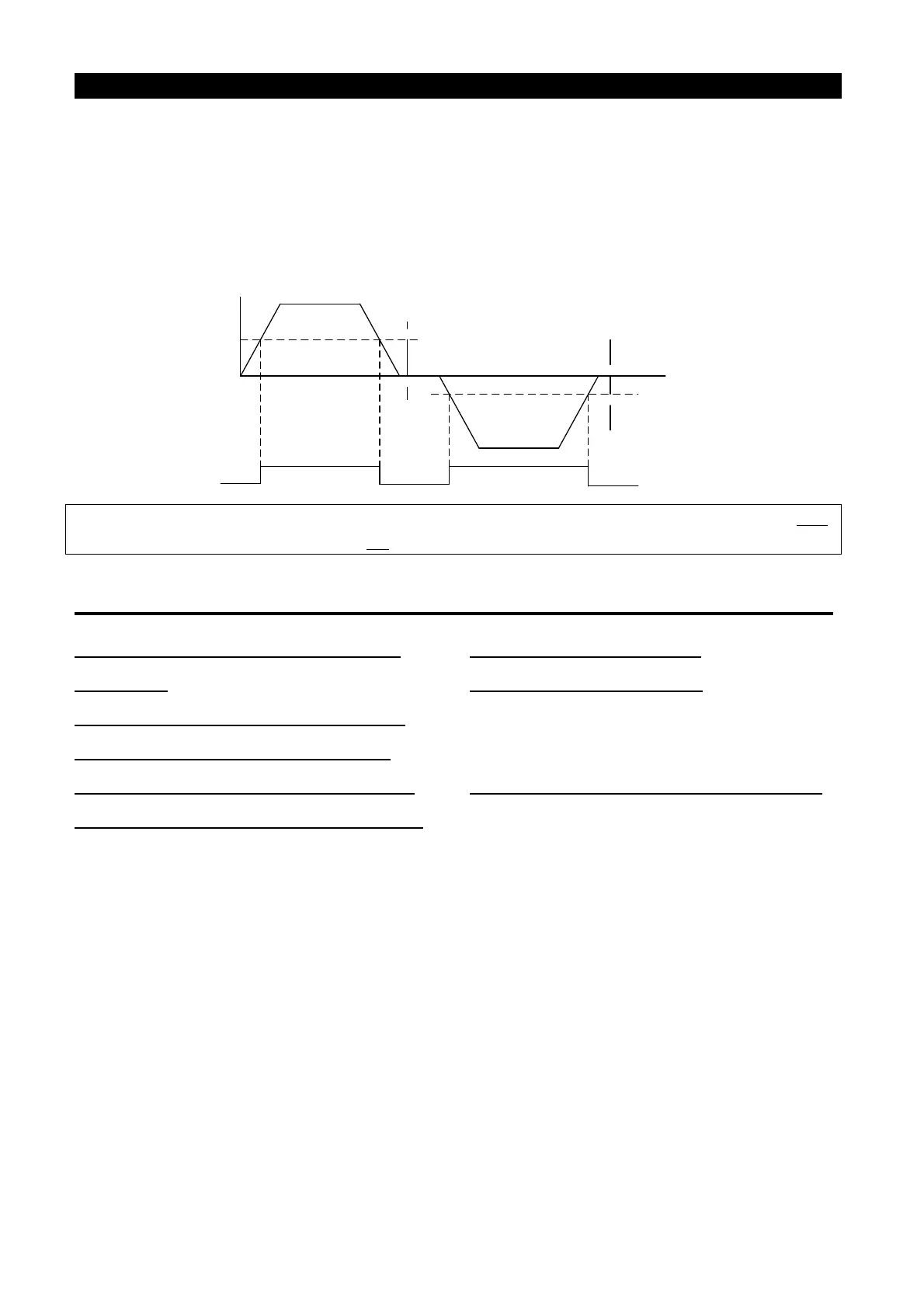

• If P.42=30 and P.43=20, then SO2 will send signals when the forward rotation output
frequency exceeds 30Hz or when the reverse rotation output frequency exceeds 20Hz.
• If P.42=30 and P.43=99999 (factory default), then SO2 will send out signals when the
forward or reverse rotation output frequency exceeds 30Hz.
SO2
Output
frequency
(
Hz)
Output signal
OFF OFFON
Time（s）
P.42
P.43
ON
OFF
Run forward
Run reverse
Note: In this paragraph, SO2 is the function name for “multi-function output terminal”. Please refer to P.40
.
For wiring, please refer to Section 3.5.
5.26 AM1/HDO Terminal (P.54~P.56, P.64, P.74, P.187, P.190 and P.191)
P.54 “AM1/HDO terminal function
selection”
P.55“Frequency display reference”
P.187 “FM calibration parameter”
P.190 “AM1 output bias”
P.191 “AM1 output gain”
P.56 “Current monitoring reference”
P.64 “AM1 output terminal selection”
P.74 “HDO output terminal selection”
● When the toggle switch SW12 is set to AM1 and P.64=0, 2, 3, the external terminal AM1 is
valid (please refer to note 1, 2). The following explanations about terminal AM1 are all
based on the premise.
● When the toggle switch SW12 is set to HDO and P.64=1, the external terminal HDO is
valid (please refer to note 3, 4). The following explanations about terminal HDO are all
based on the premise.
