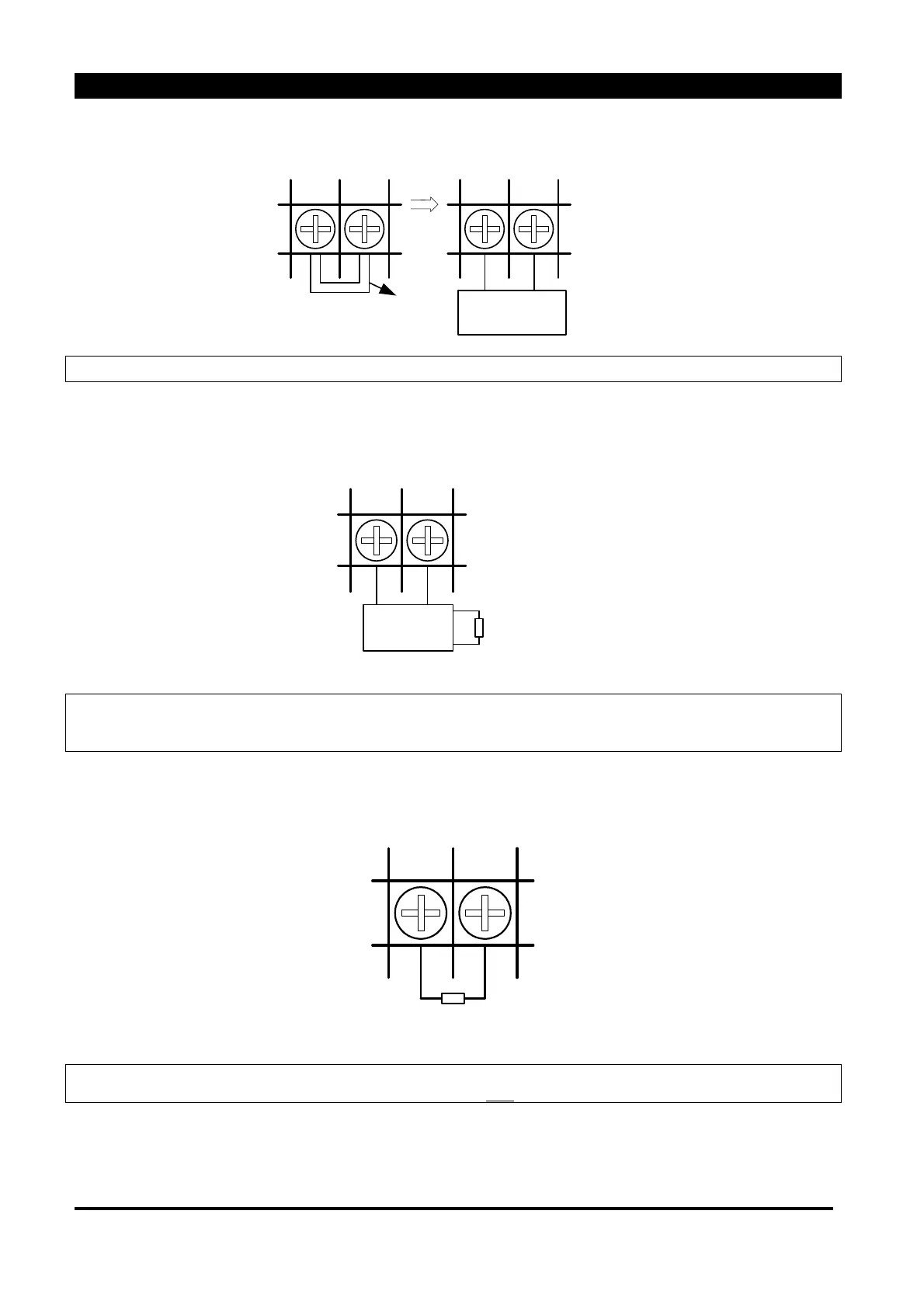

● DC reactor connection
+/P P1 +/P P1
remove
DC reactor
Note: Frame E and F corresponded inverters have built-in DC reactor.
● Brake unit connection
Break
uint
+/P -/N
Break
resistance
Note: Frame C, D, E and F corresponded inverters have no built-in brake unit. Brake units and brake
resistors can be selected for use. The built-in brake unit of frame A and B corresponded inverters can
have brake resistors.
● Brake resister connection
+/P
PR
Break resister
Note: 1. it is only suitable for frame AA, A and B corresponded inverters
2. Instruction on the frames is presented in Section 3.3.
