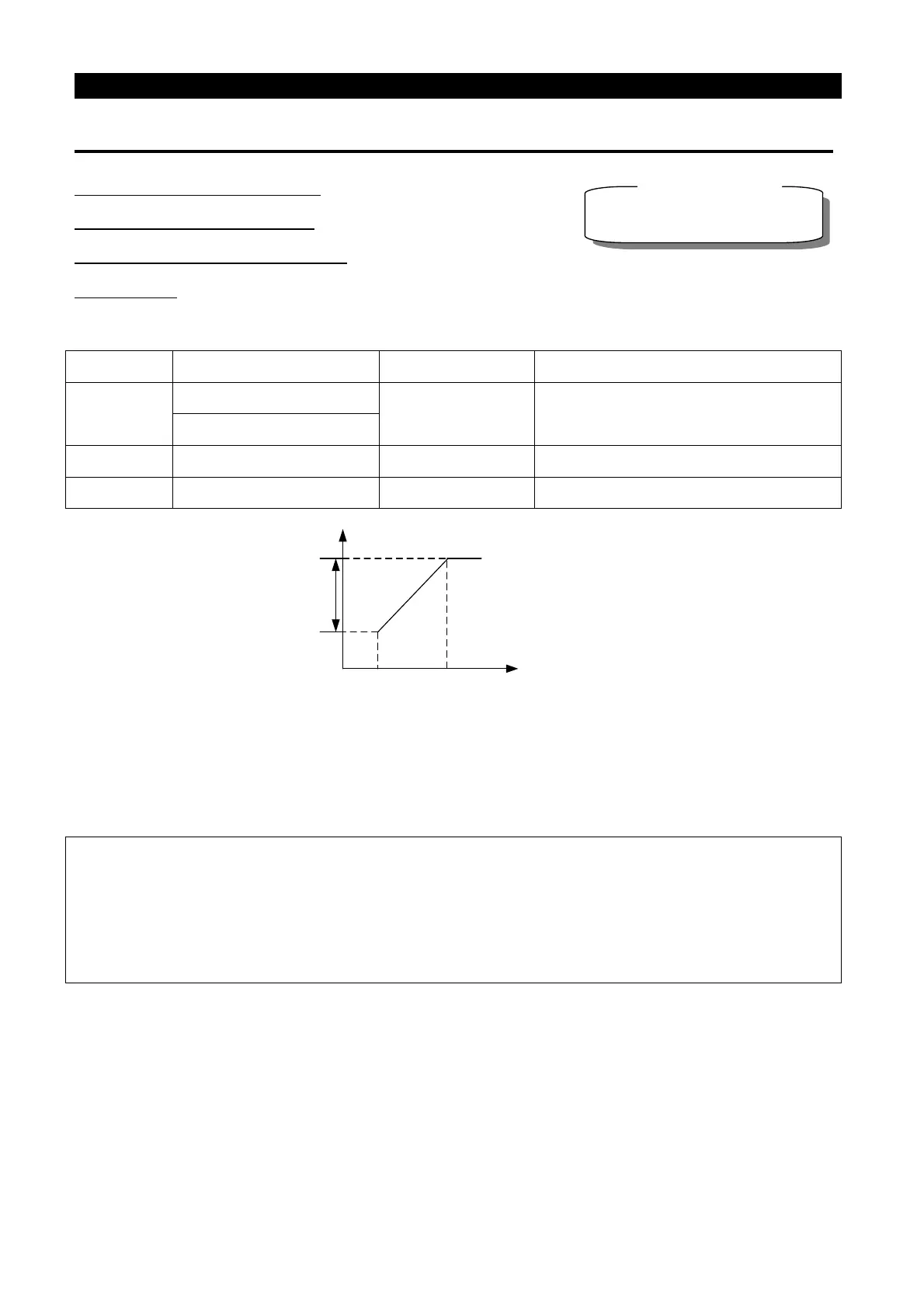

Parameter Description
5.2 The Rage of the Output Frequency (P.1, P.2 and P.18)
P.1 “Maximum frequency”
P.2 “Minimum frequency”
P.18 “High-speed maximum
frequency”
Related parameters
P.13“Starting frequency”
● The upper and lower limits of the output frequency can be restricted.
Parameter Factory setting Setting range Remarks
1
120Hz(55kW or below)
0~120Hz ---
60Hz(75kW or above)
2 0Hz 0~120Hz ---
18 120Hz 120~650Hz ---
P.1(P.18)
P.2
Output
frequency
（Hz）
Setting frequency(Hz）
<Setting>
• If the target frequency ≦P.2, the steady output frequency equals to P.2.
• If P.2<target frequency≦P.1 (P.18), the steady output frequency equals target frequency.
• If P.1 (P.18)＜target frequency, the steady output frequency equals P.1.
Note: 1. The “maximum frequency" and the “high-speed maximum frequency” are interrelated. If the target
upper limit frequency is set below 120Hz, use P.1 as the maximum frequency (the setting range
of P.1 is 0~120 Hz). If the target frequency limited to between 120~650 Hz, use P.18 as the
maximum frequency (the setting range of P.18 is 120~650 Hz).
2. If P.1<P.2, the steady output frequency will be clamped to P.1.
3. The set frequency value cannot exceed the value of P.1.
