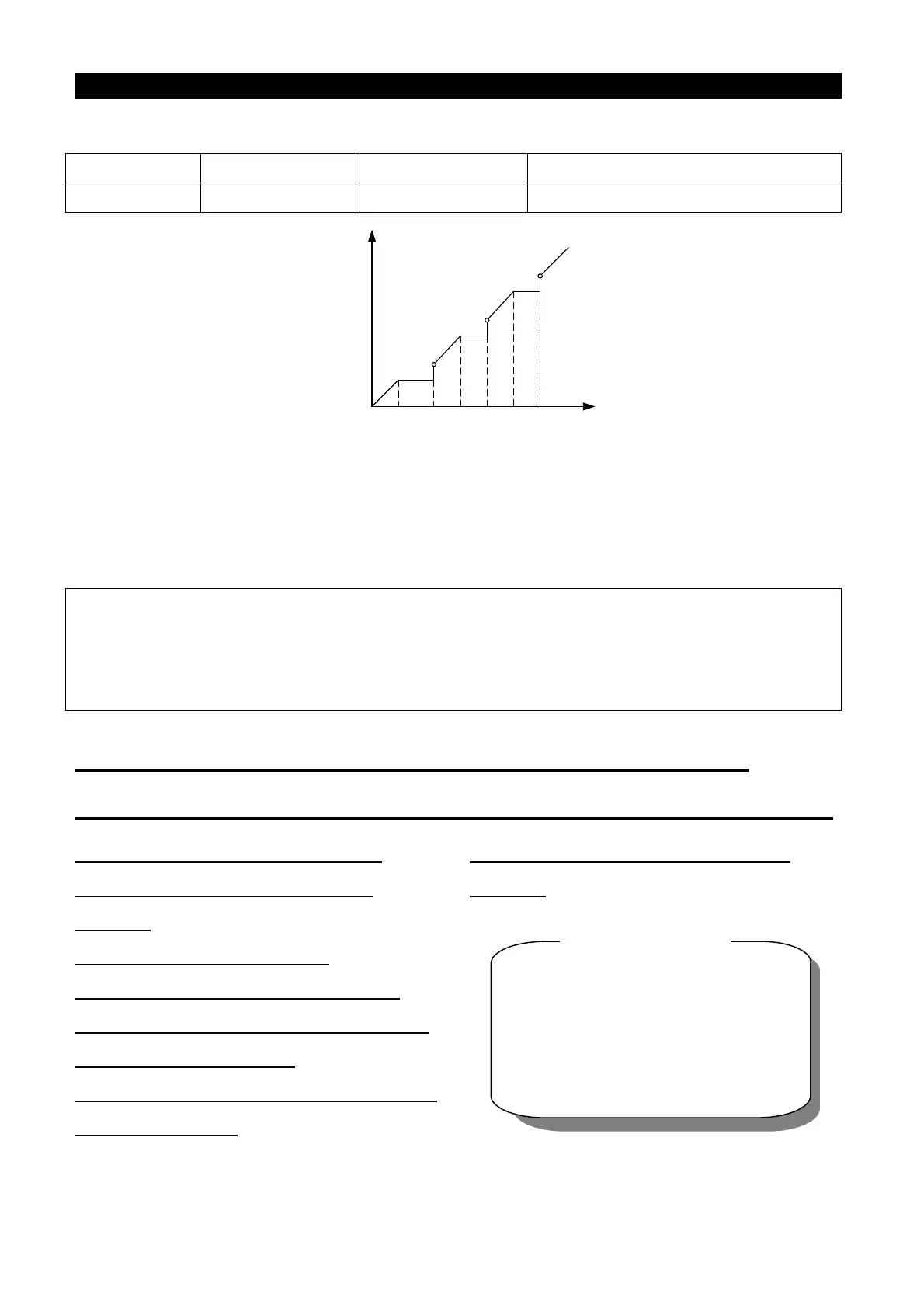

Page #131 background image
Parameter Description
Parameters
130
and P.95 and P.96 (the third set).
Parameter Factory setting Setting range Remarks
91~96 99999 0~650Hz, 99999 99999: invalid
P.91 P.92 P.93 P.94P.95 P.96
Output
frequency
(Hz)
<Setting>
For example: assuming P.91=45 and P.92=50;
If the target frequency 45Hz, then the steady output frequency=the target frequency.
If 45Hz target frequency50Hz, then the steady output frequency=45Hz.
If the target frequency50Hz, then the steady output frequency=the target frequency.
Note: 1. During the acceleration / deceleration period, the output frequency of the inverter will still pass
through the jump frequency.
2. When P.91=99999 or P.92=99999, the first set of frequency jump is invalid.
When P.93=99999 or P.94=99999, the second set of frequency jump is invalid.
When P.95=99999 or P.96=99999, the third set of frequency jump is invalid.
5.45 Programmed Operation Mode (P.100~P.108, P.111~P.118,
P.121~P.123, P.131~P.138)
P.100 “Minute/second selection
P.101~P.108 “Runtime of each
section”
P.111~P.118 “Acceleration/
deceleration time of each section”
P.121 “Run direction in each section
P.122 “Cycle selection”
P.123 “Acceleration/deceleration time
setting selection
P.131~P.138 Frequency of each
section”
Related parameters
P.80~P.84, P.86,P.126, P.550
Multi-function terminals selection
P.8 Deceleration time
P.7 Acceleration time
P.21 Acceleration/deceleration
time increments
