Parameter Description
<Setting>

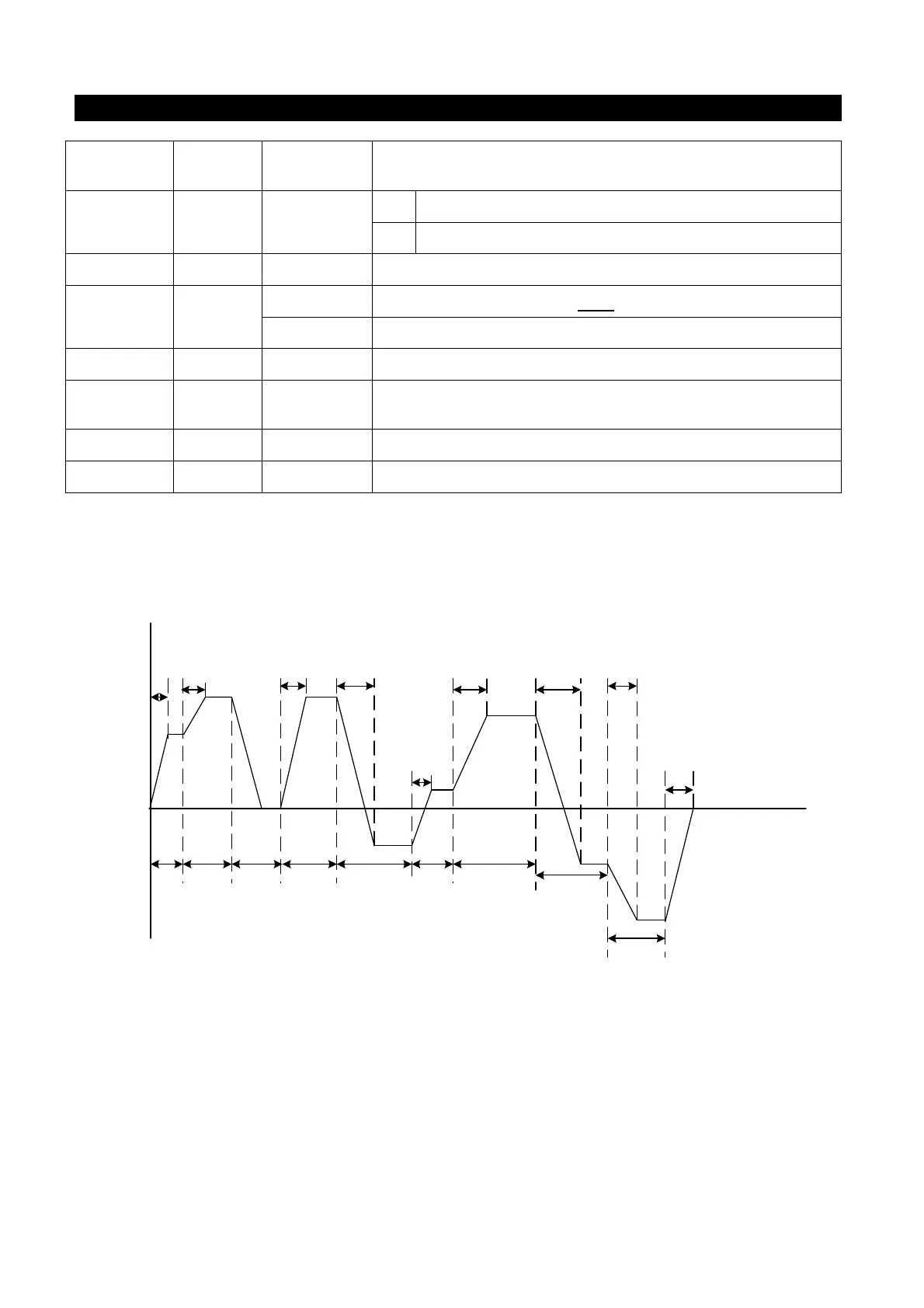

1. Programmed operation mode
• The calculation of runtime and acceleration/deceleration time in each section is presented
in the figure below:
frequency
Run
forward
Run
reverse
P.111
P.101
P.112 P.113 P.114
P.115
P.102
pause P.103
P.104
P.116
P.105 P.106
P.117
P.107
P.118
P.108
P.118
• The run direction is set in binary form (8-bit), and then translated to decimal form and
stored in P.121. “1” means run forward, and “0” means run reversely. The highest bit is the
run direction of section 8, while the lowest bit is the direction of the section 1.
For example: Suppose that section 1 is run forward, section 2 is run reverse, section 3 is
run reverse, section 4 is run forward, section 5 is run reverse, section 6 is
run forward, section 7 is run forward, section 8 is run reverse, then the value
in binary form is 01101001.
P.121＝0×2
7
+1×2
6
+1×2
5
+0×2
4
+1×2
3
+0×2
2
+0×2
1
+1×2
0
＝105
• When P.122=0, it will not run in circular motion.
Parameter
Remarks
100 1 0, 1
0 The minimum increment of run time is 1 minute.
1 The minimum increment of run time is 1 second.
101~108 0s 0.1~3600s ---
111~118 0s
0~600s P.21=0
0~6000s P.21=1
121 0 0~225 ---
122 0 0~8
0: Cycle function invalid;
1~8: Run circularly
123 0 0, 1 ---
131~138 0 Hz 1~650Hz ---
