Parameter Description
Parameters
156
P.231
P.230
P.232
P.233
P.13
time
Output
frequency

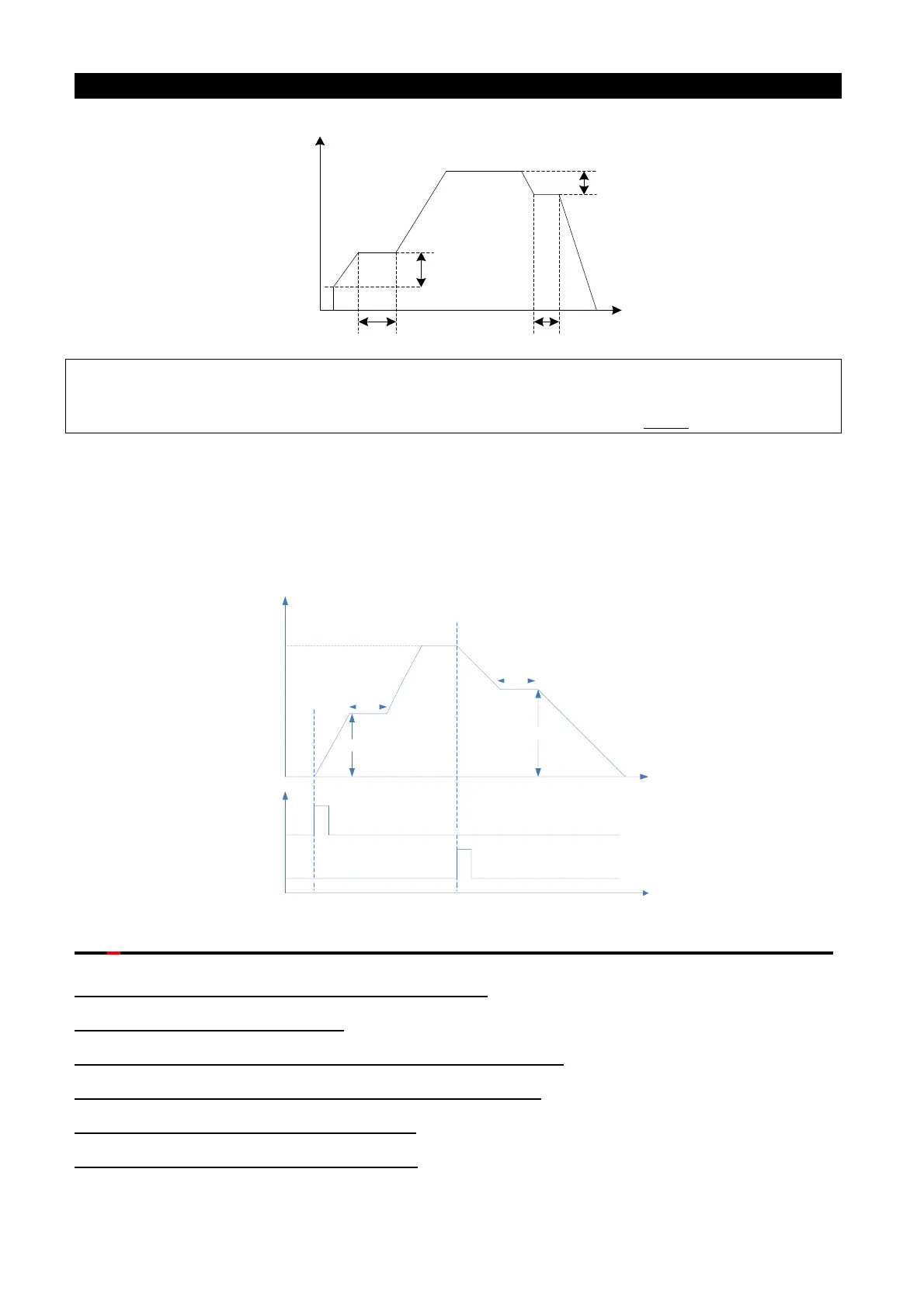

Backlash compensation function
Note: 1. The setting of the backlash compensation will only prolong the acceleration/deceleration time
during the period of interruption.
2. This function is only valid under the V/F mode; i.e., it is effective when P.300
= 0.
●Acceleration and Deceleration Interrupt Waiting Function
When P.229=2, start acceleration and deceleration interrupt waiting function. When
accelerating to the frequency set by P.230, wait for the time set by P.231 and then accelerate
to the target. When decelerating to the frequency set by P.232, wait for the time set by P.233,
and then decelerate to the target.
S
Start
Stop
Hz
P.231
P.230
Target
frequency
P.233
P.232
Acc/
Dec
stop
ping
funct
ion
Three-
wire
contro
l mode
5.64 Triangular Wave Function (P.234~P.239)
P.234 “Triangular wave function selection”
P.235 “Maximum amplitude”
P.236 “Amplitude compensation for deceleration”
P.237 “Amplitude compensation for acceleration”
P.238 “Amplitude acceleration time”
P.239 “Amplitude deceleration time”
