Appendix 4 Optional Equipment
Appendix 4 Optional Equipment
1. Expansion board (Please set the parameters according to the expansion board and the function)

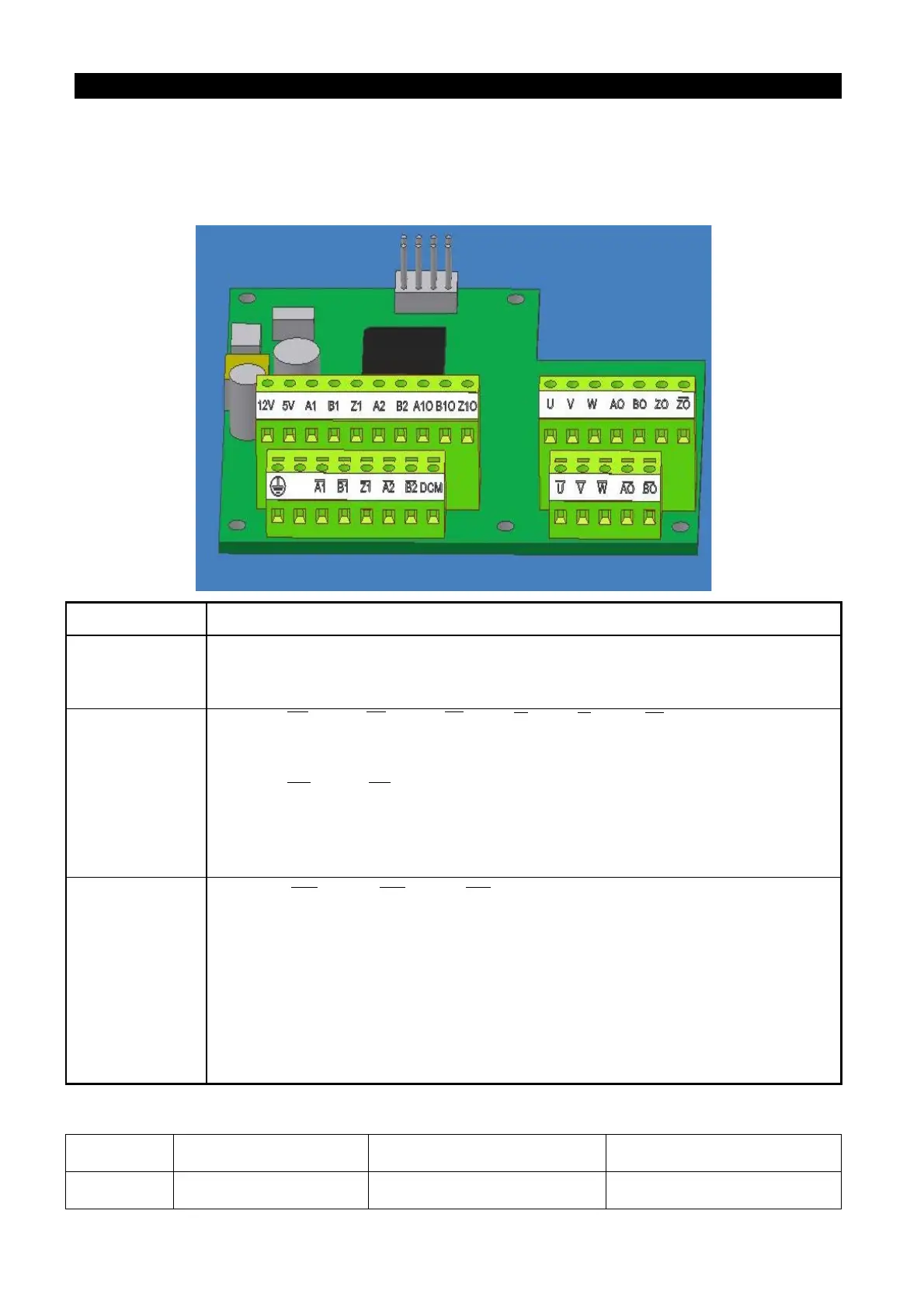

1). PG03 expansion card
Name Explanation
Power source
1. Supplied by the noumenon
2. supply 5V and 12V (±5%) power supply in the meantime, the maximum supply is
Input terminals
1. A1、
、B1、
、Z1、
、U、
、V、
、W、
：
The input of encoder signal support open collector, voltage, line drive and
push-pull input type, the maximum acceptable is 500KP/Sec.
2. A2、
、B2、
：
The input of pulse signal connect to the upper c
ontroller and support open
collector, voltage, line drive and push-pull input type, the maximum acceptable is
500 KP/Sec.
Output terminals
1. AO、
、BO、
、ZO、
：
The line drive dividing frequency output which is 1~255 times dividing frequency.
The maximum output current is 50mA, the output voltage is 5V, the maximum
output frequency is 500 KP/Sec.
2. A1O、B1O、Z1O：
The open collector dividing frequency output which is 1~255 times dividing
frequency. The maximum output current is 50mA, the maximum output frequency
is 500 KP/Sec.
The explanation of ordering code:
NO. Type Name Ordering Code
1 PG03 PG03 expansion card SNKPG03
