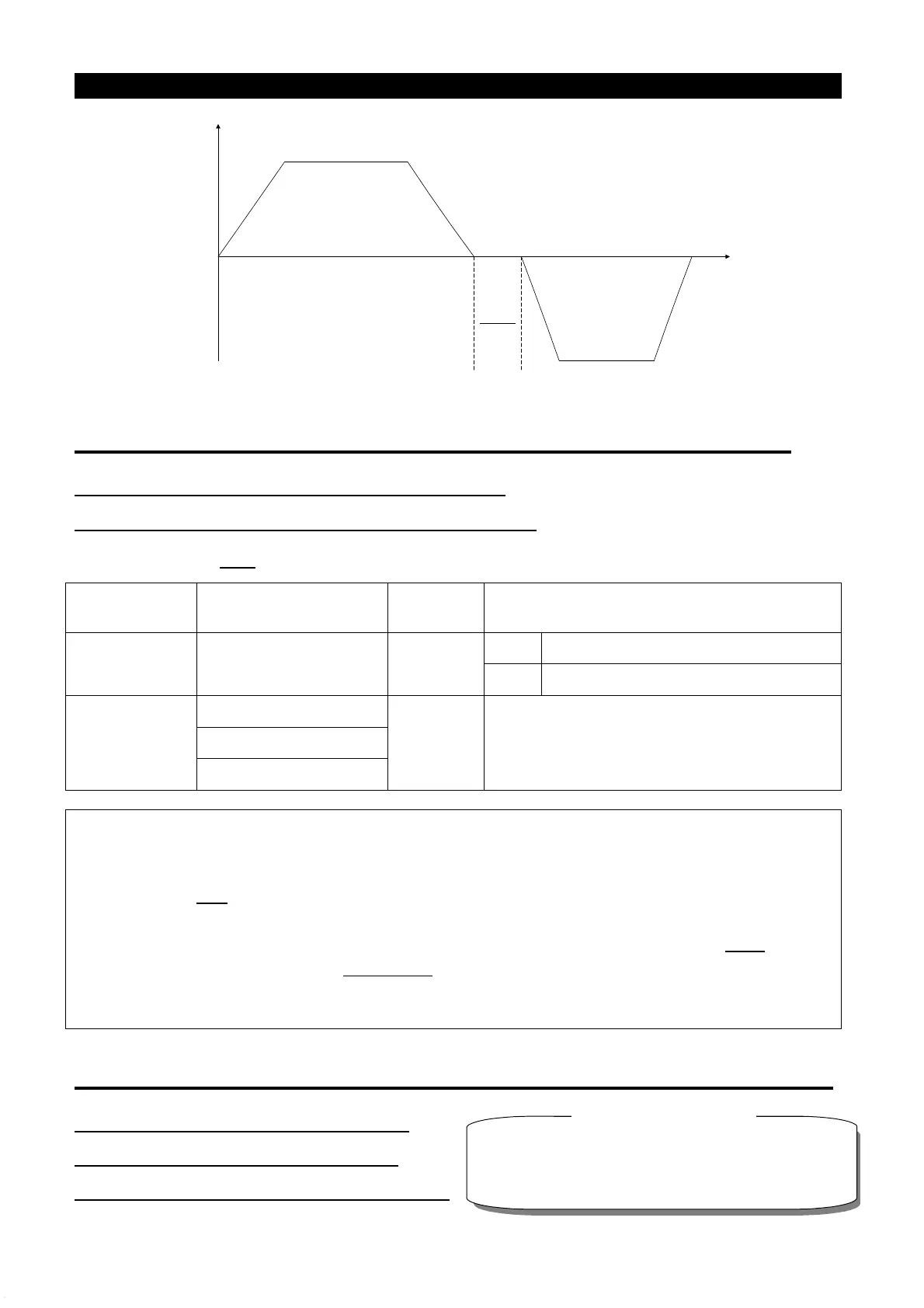

Parameter Description
Parameters
134
Output
frequency
The positive rotation
The reverse rotation
Time
The dead time of
positive and
reverse rotation
5.48 Zero-Speed Function (P.151~P.152)
P.151 “Zero-speed control function selection”
P.152 “Voltage instruction at zero-speed control”
Make sure that P.13 (Start frequency) is set to zero when using this function.
Parameter Factory setting
Setting
range
Remarks
151 0 0, 1
0 There is no output at zero-speed.
1 (Note 1, 3 and 4)
152
4% (7.5kW or below)
0~30% (Note 2) 2%(11kW~55kW)
1% (75kW or above)
Note: 1. The output mode is selected by the value of P.151. When P.151 is 0, then there is no output.
When P.151 is 1, then the voltage of output DC voltage of P.152 is the keep torque.
2. Suppose that P.152 = 6%, then the output voltage of zero speed is 6% of base frequency
voltage P.19
.
3. This function is valid only at V/F, close-loop V/F control system, and close-loop vector control
mode. For more details, please refer to the motor control mode parameter P.300
and the
feedback control parameter P.350~P.354.
4. When P.151=1, the zero-speed running is carried out in close-loop vector control mode, DC
voltage breaking is carried out in V/F close-loop control mode.
5.49 Over Torque Detection (P.155~P.156, P.260)
P.155 “Over torque detection level”
P.156 “Over torque detection time
P.260 “Over torque detection selection
Related parameters
P.40
Muti-function output terminal SO1-SE function selection
P.
85
Function selection for multi-function relay A1-B1-C1
P.129
Function selection for multi-function output terminal SO2-SE
P.130
Function selection for multi-function relay A2-B2-C2"
