Shihlin electric SF-GT Series User Manual

Shihlin Inverter Introduction
Inverter Introduction
14

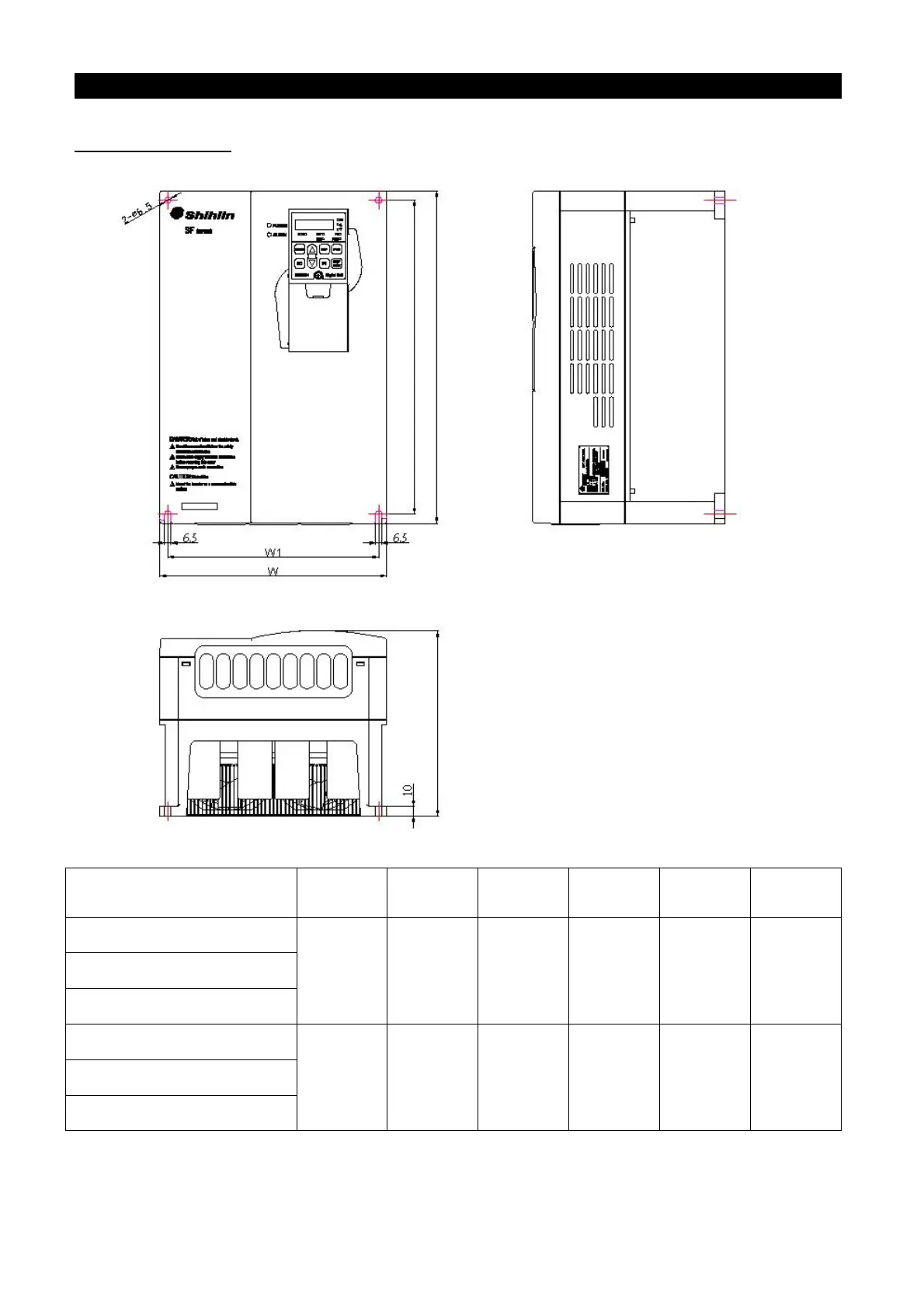

3.3.2 Frame A/B
Model Frame
H
(mm)
H1
(mm)
W
(mm)
W1
(mm)
D
(mm)
SF-040-5.5K-GT
A 323 303 200 186 186 SF-040-7.5K-GT
SF-040-11K-GT
SF-040-15K-GT
B 350 330 230 214 195 SF-040-18.5K-GT
SF-040-22K-GTS
D
H1
H

Shihlin electric SF-GT Series Specifications

General

Frequency	50/60 Hz
Power Range	0.4kW ~ 630kW
Cooling Method	Forced air cooling
Output Frequency	0~400Hz
Control Method	V/F control, Sensorless Vector Control, Torque control
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Short Circuit
Communication	Modbus RTU, Profibus DP, CANopen
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C
Altitude	Below 1000m (derating required above 1000m)
Efficiency	98%
Humidity	Less than 95% RH (non-condensing)
Dimensions	Varies by model
Weight	Varies by model
Series	SF-GT Series
