Shihlin electric SF-GT Series User Manual

Parameter Description
Parameters
112

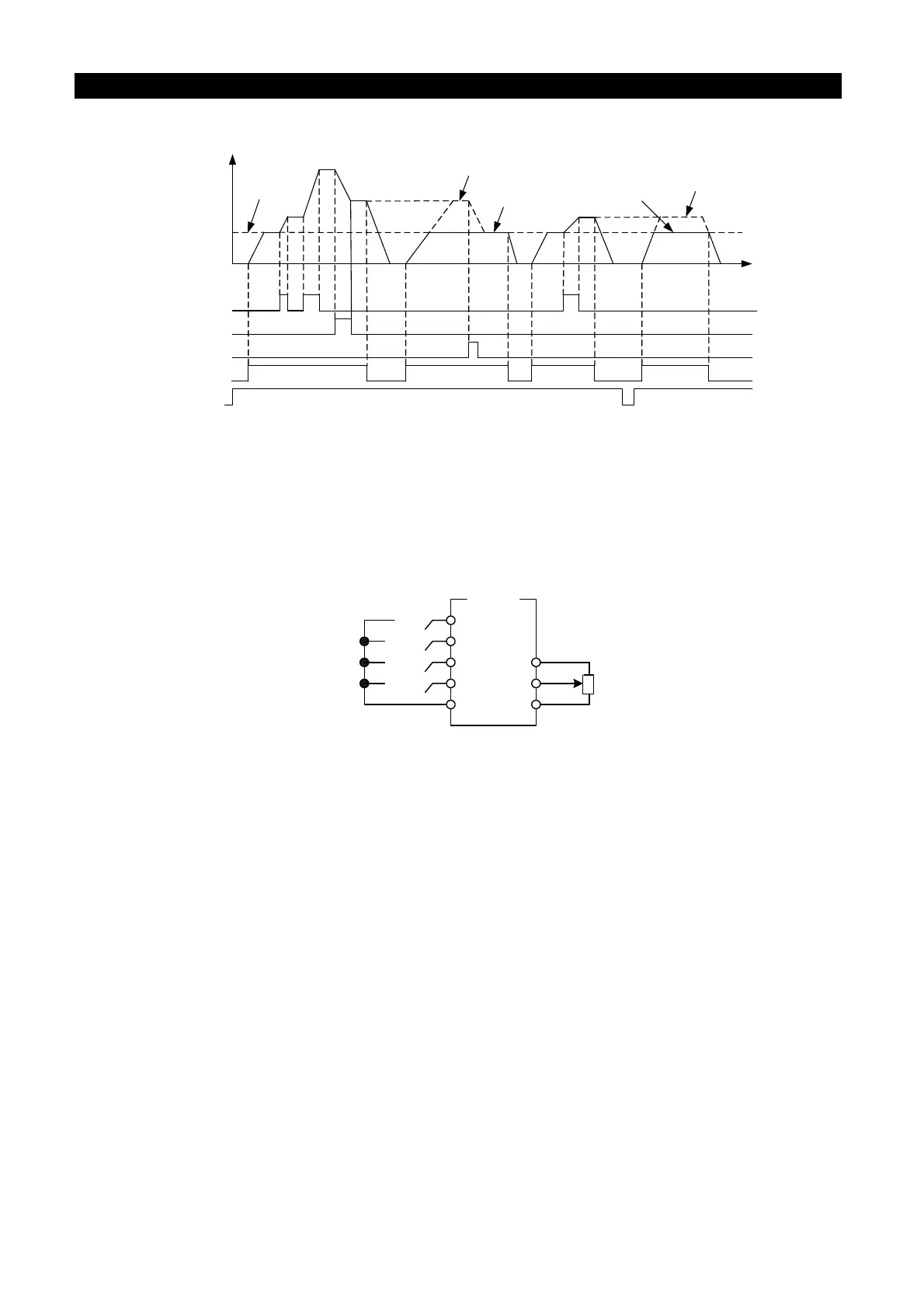

<Setting>
Acceleration(RH)
Deceleration (RM)
Clear (RL)
Forward
rotation(STF)
ON
ON
ON
ON ON ON
ON ON
ON
P. 61
＝
1
P. 61
＝
3
P. 61
＝
2
、
3
P. 61
＝
1
、
2
Power supply
Output
frequency
(Hz)
0
Time
*
*external target frequency (except multi-speed) or PU target frequency
• Remote setting function
1. Whether the remote setting function is valid and whether the frequency setting storage
function in the remote setting mode is used or not are determined by P.61.
Set P.61=1~3 (valid remote setting function), the function of terminal RM, RH and RL will
be changed to acceleration (RH), deceleration (RM) and clear (RH).See the following
figure:
Inverter
Forward rotation
Acceleration
Deceleration
Clear
STF
RH
RL
RM
SD
10
2
5
Wiring of the remote control setting
2. In the remote setting, the output frequency of the inverter is: (frequency set by RH/RM
operation + external set frequency other than multi-speeds/PU set frequency)
• Frequency setting storage condition
The frequency setting storage function is to store the remote-set frequency (frequency set
by RH/RM operation) in memory (EEPROM). Once the power supply is cut off and turned
on again, the inverter can start running again at the remote-set frequency (P.61=1).
<Frequency setting storage condition>
(1). It is the frequency when the start signal (STF/STR) is “off”.
(2). When the signal RH (acceleration) and RM (deceleration) are both “off” and “on”, the
remote-set frequency is stored every minute. (Current frequency set value and the last
frequency set value are compared ever minute. If they are different, then the current
frequency set value is written in the memory. If RL is on, write-in will unavailable).
