Shihlin electric SF-GT Series User Manual

Shihlin Inverter Introduction
Inverter Introduction
28

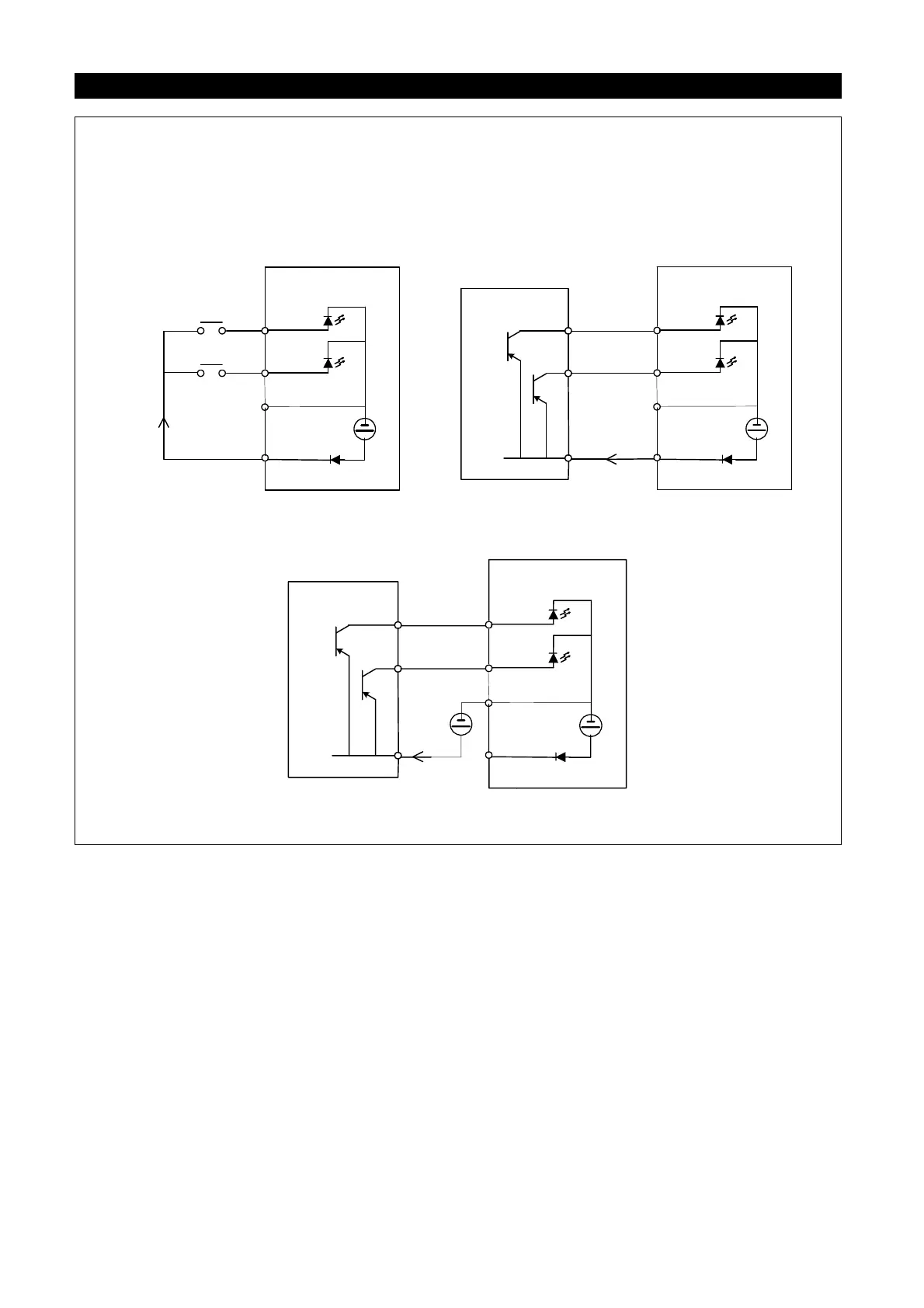

If "Source Input” mode is selected, the function of the terminal is active when it is shorted with PC
or connected with the external PLC. In this mode, the current flows into the corresponding
terminal when it is “on". Terminal PC is common to the contact input signals. When using an
external power supply for transistor, please use terminal SD as a common to prevent
misoperation caused by leakage current.
STF
STR
PC
Inverter
Source Input:
the multi-function control
terminal is shorted directly with PC
Source Input:
the multi-function control terminal
is connected directly with open-emitter PLC
PLC
I
I
DC
24V
SD
STF
STR
PC
Inverter
DC
24V
SD
Source Input: the multi-function control terminal is connected
with open-emitter PLC and external power supply
PLC
I
STF
STR
PC
Inverter
DC
24V
SD
DC
24V
