b

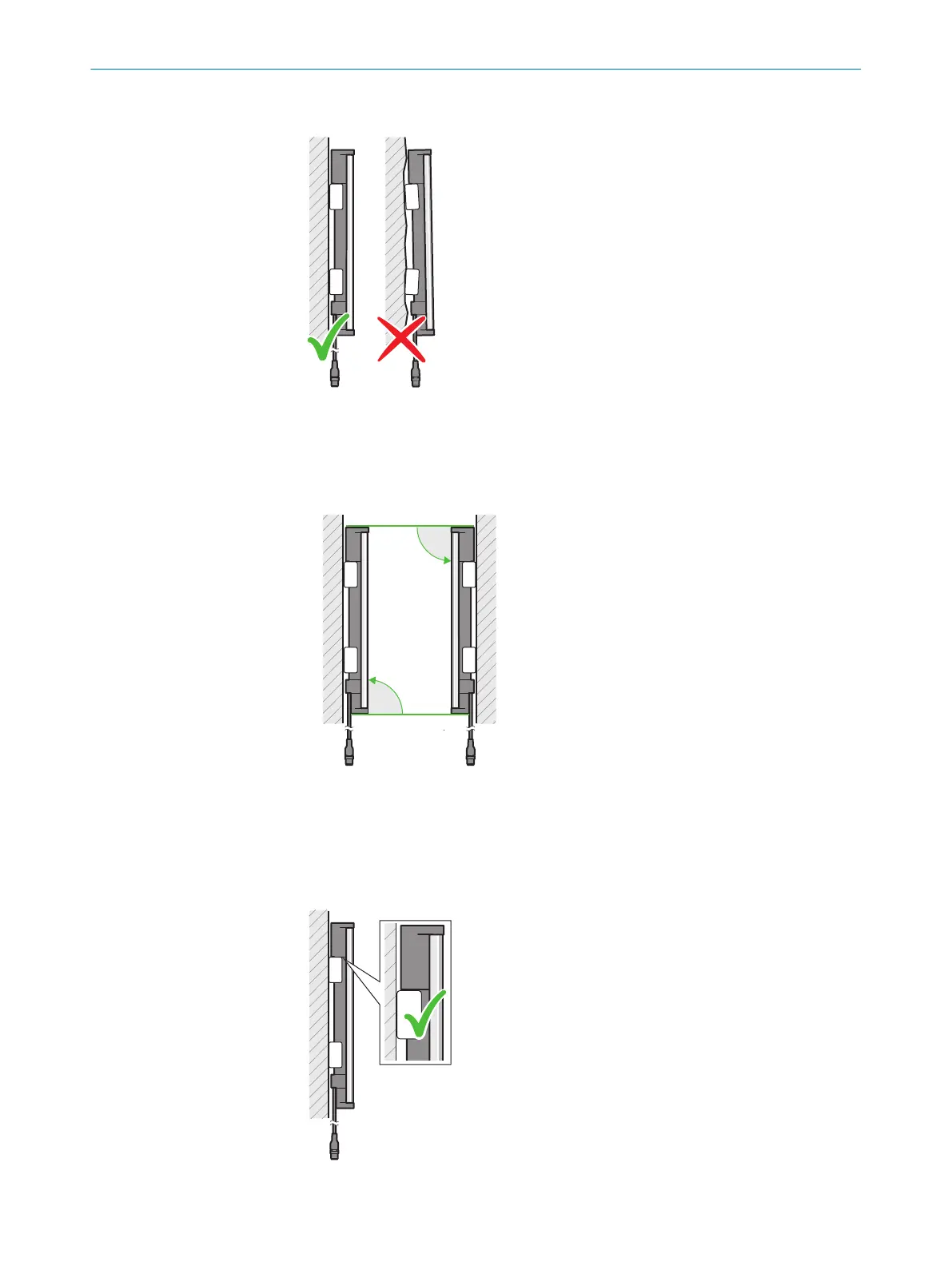

Mount t
he sender and receiver such that a right-angled protective field is estab‐
lished, i.e., when mounted vertically at the same height. For minor adjustments
during alignment, the sender and receiver can be adjusted longitudinally in the
brackets (").
b
P
osition the brackets near the ends of the housing. For devices with a protective
field height > 300 mm, the distance between the bracket and the end of the
housing must not exceed 1/4 of the length of the housing. If the device is exposed
to strong vibrations during operation, mount the top bracket at a height where the
offset in the safety light curtain housing rests on the bracket (§).
MOUNTING 5
8021645/1EB0/2022-04-28 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec4
79
