SICK M4000 Advanced Manual

Operating Instructions Chapter 13
M4000 Adv., Adv. A/P, Area
8010797/PA53/27-06-05 © SICK AG • Industrial Safety Systems • Germany • All rights reserved
103
Annex
How to make the alignment templates:
 Copy this page.
 Cut the copied template along the edge and at the line marked.
 Cut out the two targets on the laser alignment aid and the circular opening for the beam
optics.

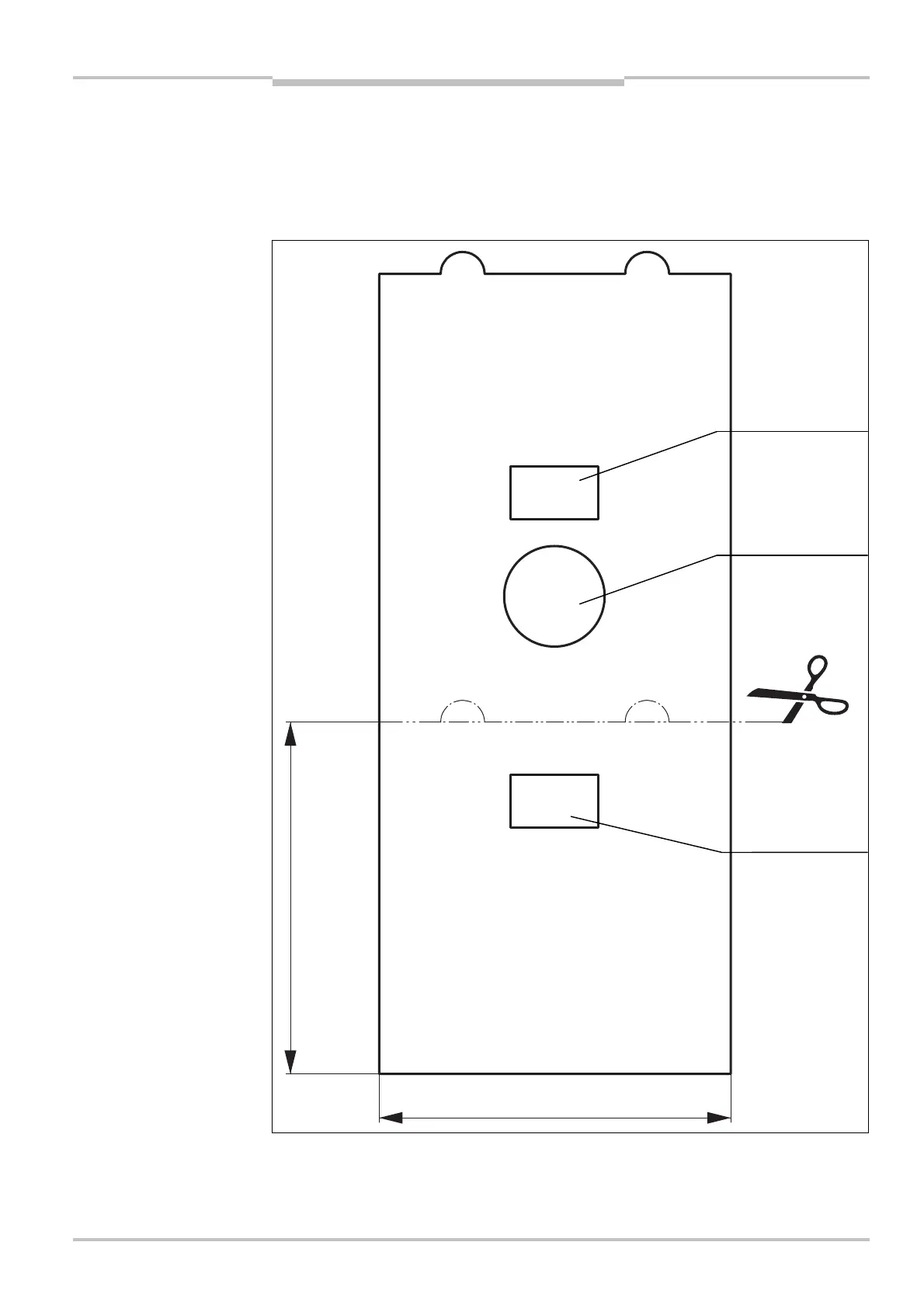

Fig. 59: Alignment templates
copying master
Laser alignment aid
target
80
mm
80
mm
Cut line
Alignment
template
for
sender
Alignment
template
for
mirrors
Laser alignment aid
target
Circular opening for
beam optics
AUDIN - 7 bis rue de Tinqueux - 51100 Reims - France - Tel : 03.26.04.20.21 - Fax : 03.26.04.28.20 - Web : http: www.audin.fr - Email : info@audin.fr

SICK M4000 Advanced Specifications

General

Type	Multiple light beam safety device
Enclosure rating	IP65
Supply voltage	24 V DC
Safety integrity level	SIL3
Performance level	PL e
Protection Rating	IP65
Operating Voltage	24 V DC
Number of beams	2 to 4 beams
Resolution	70 mm
Ambient operating temperature	-25 °C ... +55 °C
Angular Resolution	Not applicable
Operating Temperature	-25 °C ... +55 °C
