Technical specifications
11.3.5 Side bracket
11.3.6 Rigid mounting bracket

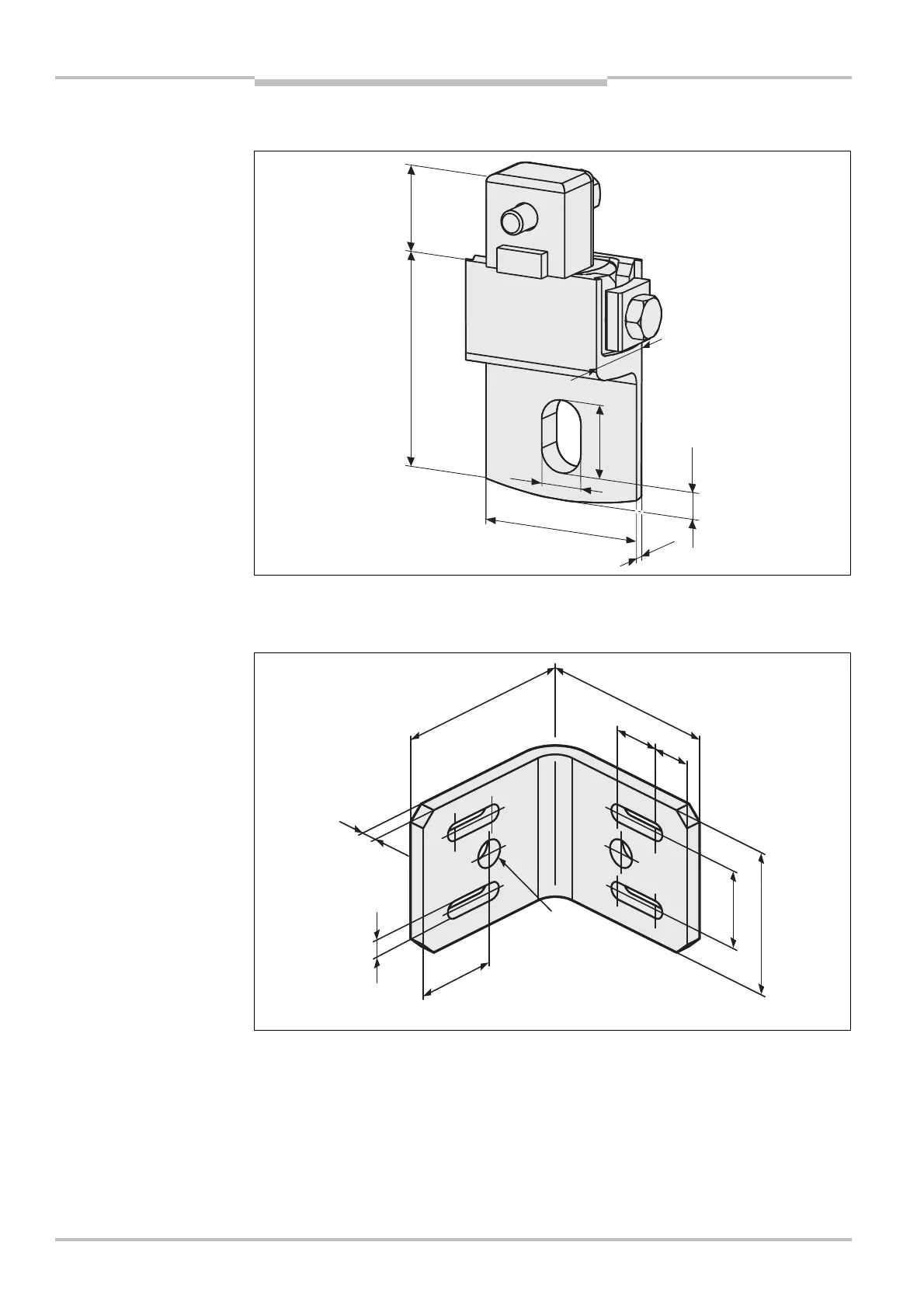

Fig. 52: Dimensional drawing
side bracket (mm)
Fig. 53: Dimensional drawing
rigid mounting bracket (mm)
18
15
5.5
6
34.5
9
19
50
Part No.
2019506
55
±1
55
±1
44
±1
14
12
24
25
5.3
5

8.3
Part No.
7021352
AUDIN - 7 bis rue de Tinqueux - 51100 Reims - France - Tel : 03.26.04.20.21 - Fax : 03.26.04.28.20 - Web : http: www.audin.fr - Email : info@audin.fr

SICK M4000 Advanced Specifications

General

Type	Multiple light beam safety device
Enclosure rating	IP65
Supply voltage	24 V DC
Safety integrity level	SIL3
Performance level	PL e
Protection Rating	IP65
Operating Voltage	24 V DC
Number of beams	2 to 4 beams
Resolution	70 mm
Ambient operating temperature	-25 °C ... +55 °C
Angular Resolution	Not applicable
Operating Temperature	-25 °C ... +55 °C
