Chapter 5 Operating Instructions
M4000 Adv., Adv. A/P, Area
38 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 8010797/PA53/27-06-05
Mounting
5.2.2 Mounting with side bracket
The side bracket is made of die cast zinc ZP 0400. It is enamelled in black. The side
bracket will be covered by the device after mounting. It provides adjustment so that the
vertical alignment of sender and receiver can be corrected by ±2.5° after mounting.
Attach the bolts of the side bracket with a torque of between 5 and 6 Nm. Higher
torques can damage the bracket; lower torques provide inadequate protection against
vibration.

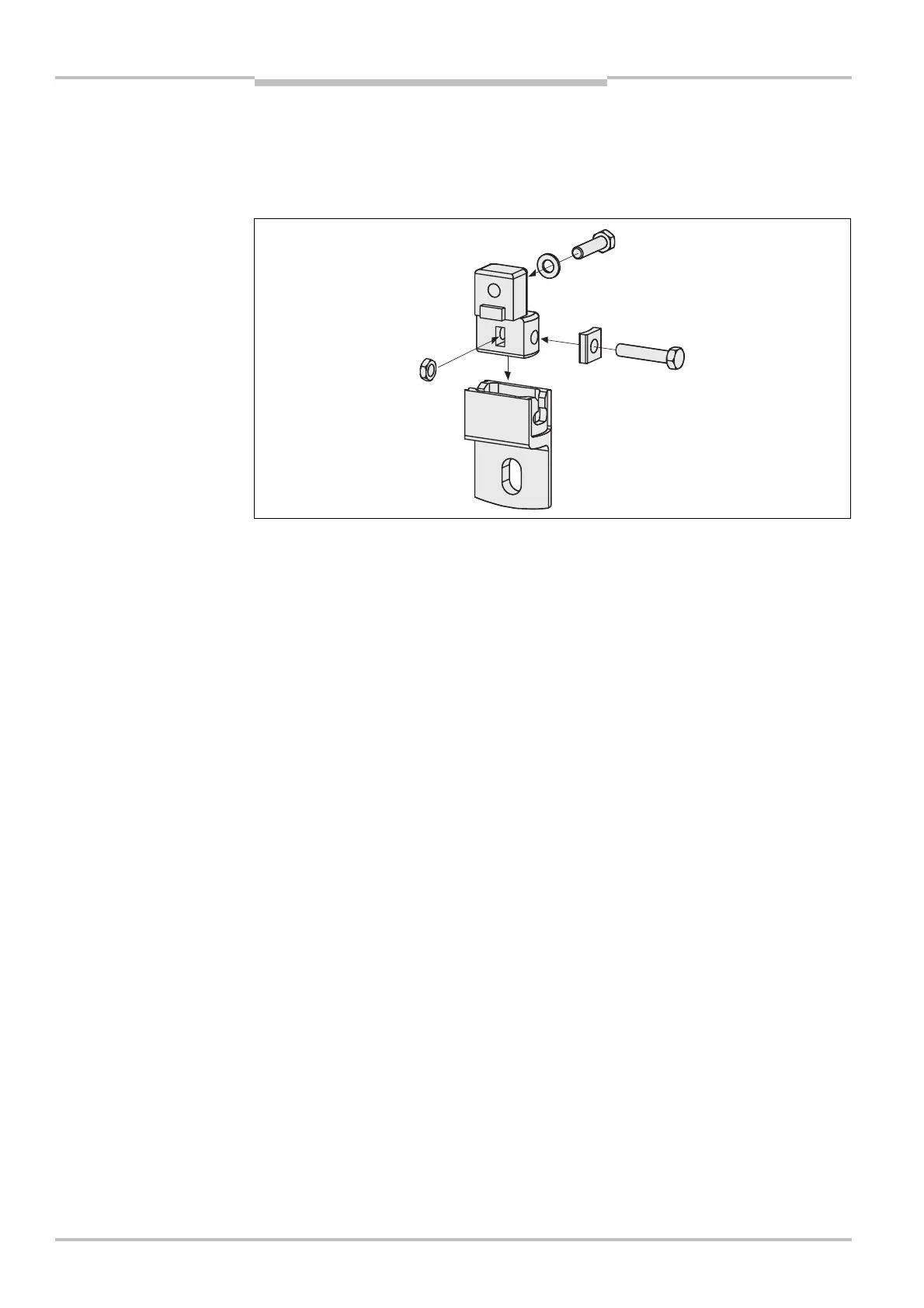

Fig. 24: Composition of the
side bracket
Notes
