Mounting
5.2.4 Mounting with pivoting mounting bracket
The pivoting mounting bracket is made of black anodised aluminium. It will be covered by
the device after mounting. The pivoting mounting bracket provides adjustment for
correcting the horizontal alignment of sender and receiver by ±2.0° after mounting.
 Tighten the bolts on the pivoting mounting bracket to a torque of between 5 and 6 Nm.
Higher torques can damage the bracket; lower torques provide inadequate protection
against vibration.

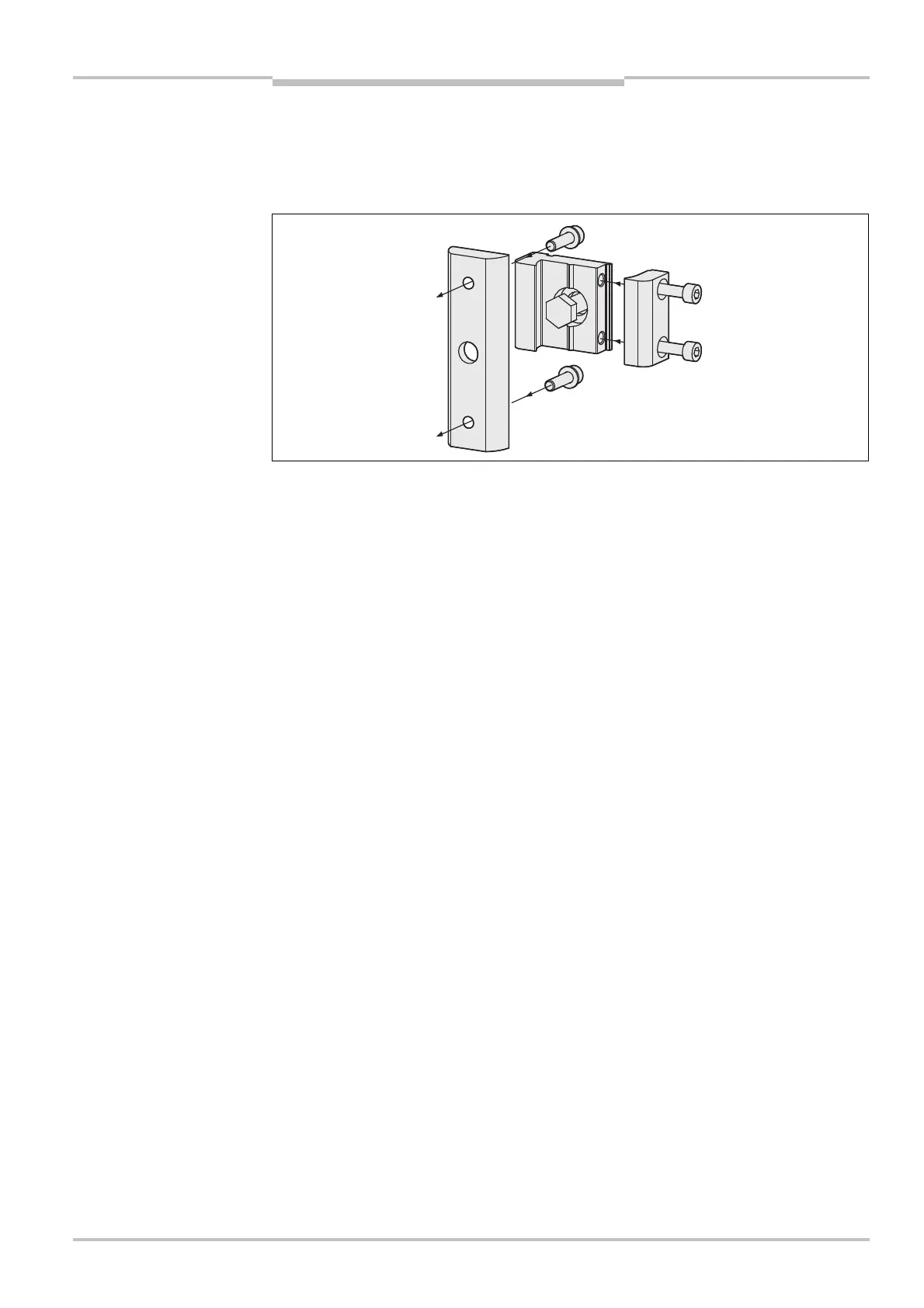

Fig. 28: Assembly of the
pivoting mounting bracket
Note
Part No.
2017751
AUDIN - 7 bis rue de Tinqueux - 51100 Reims - France - Tel : 03.26.04.20.21 - Fax : 03.26.04.28.20 - Web : http: www.audin.fr - Email : info@audin.fr

SICK M4000 Advanced Specifications

General

Type	Multiple light beam safety device
Enclosure rating	IP65
Supply voltage	24 V DC
Safety integrity level	SIL3
Performance level	PL e
Protection Rating	IP65
Operating Voltage	24 V DC
Number of beams	2 to 4 beams
Resolution	70 mm
Ambient operating temperature	-25 °C ... +55 °C
Angular Resolution	Not applicable
Operating Temperature	-25 °C ... +55 °C
