Technical specifications
11.3.8 Deflector mirror PNS75@008
Mirror height
S [mm]
Dimension
L1 [mm]
Dimension
L2 [mm]
Dimension
L3 [mm]
Dimension
A [mm]
80 112 136 200 180
• When using deflector mirrors, the effective scanning range is reduced (see Tab. 7 on
page 25).
• The formation of droplets of heavy contamination can be detrimental to the reflection
behaviour. Take the necessary organisational measures to avoid the formation of
droplets on the deflector mirrors.
• The mounting kit is included in the delivery of the deflector mirror PNS75@008.

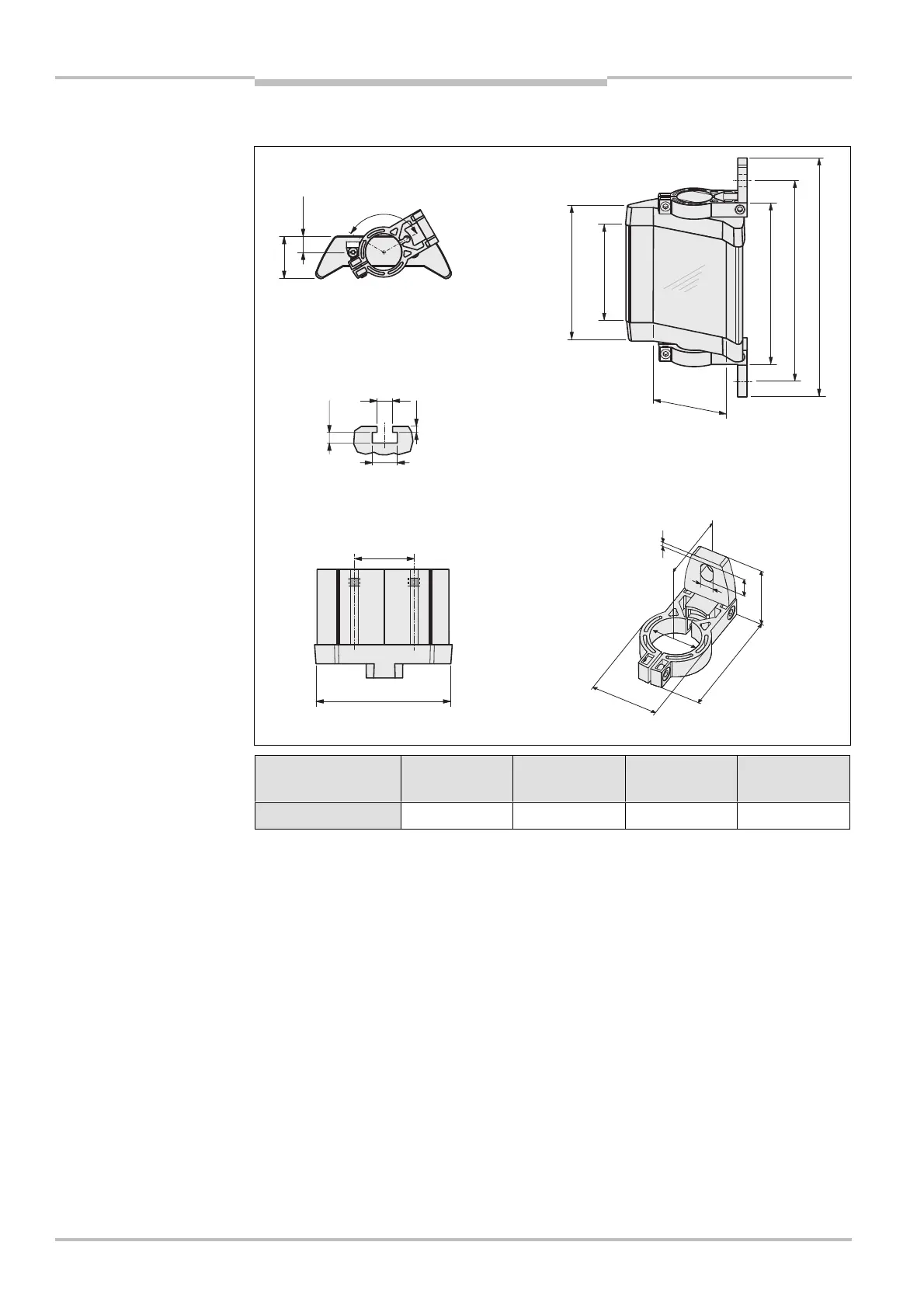

Fig. 55: Dimensional drawing
deflector mirror PNS756008
(mm)
Tab.
34
:
Dimensions of the
deflector mirror PNS756008
Note
Part No. 1026647
35
13.3
160°
L1
S
L2
A
L3
73
Mounting
with
swivel mount bracket
Sliding nut
groove
for
side
mounting
6.5
10.5
4.5
2.5
50
114
44.4
3.8
44
13
8
30.6
75
42
