SICK M4000 Advanced Manual

Chapter 5 Operating Instructions
M4000 Adv., Adv. A/P, Area
36 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 8010797/PA53/27-06-05
Mounting
Sender and receiver can be mounted in four different ways:
• mounting with swivel mount bracket
• mounting with side bracket
• mounting with rigid mounting bracket
• mounting with pivoting mounting bracket
5.2.1 Mounting with swivel mount bracket
The swivel mount bracket is made of high-strength black plastic. The bracket is designed
such that sender and receiver can still be accurately aligned even after the bracket has
been mounted.
Attach the screws of the swivel mount bracket with a torque of between 2.5 and 3 Nm.
Higher torques can damage the bracket; lower torques provide inadequate protection
against vibration.
Note

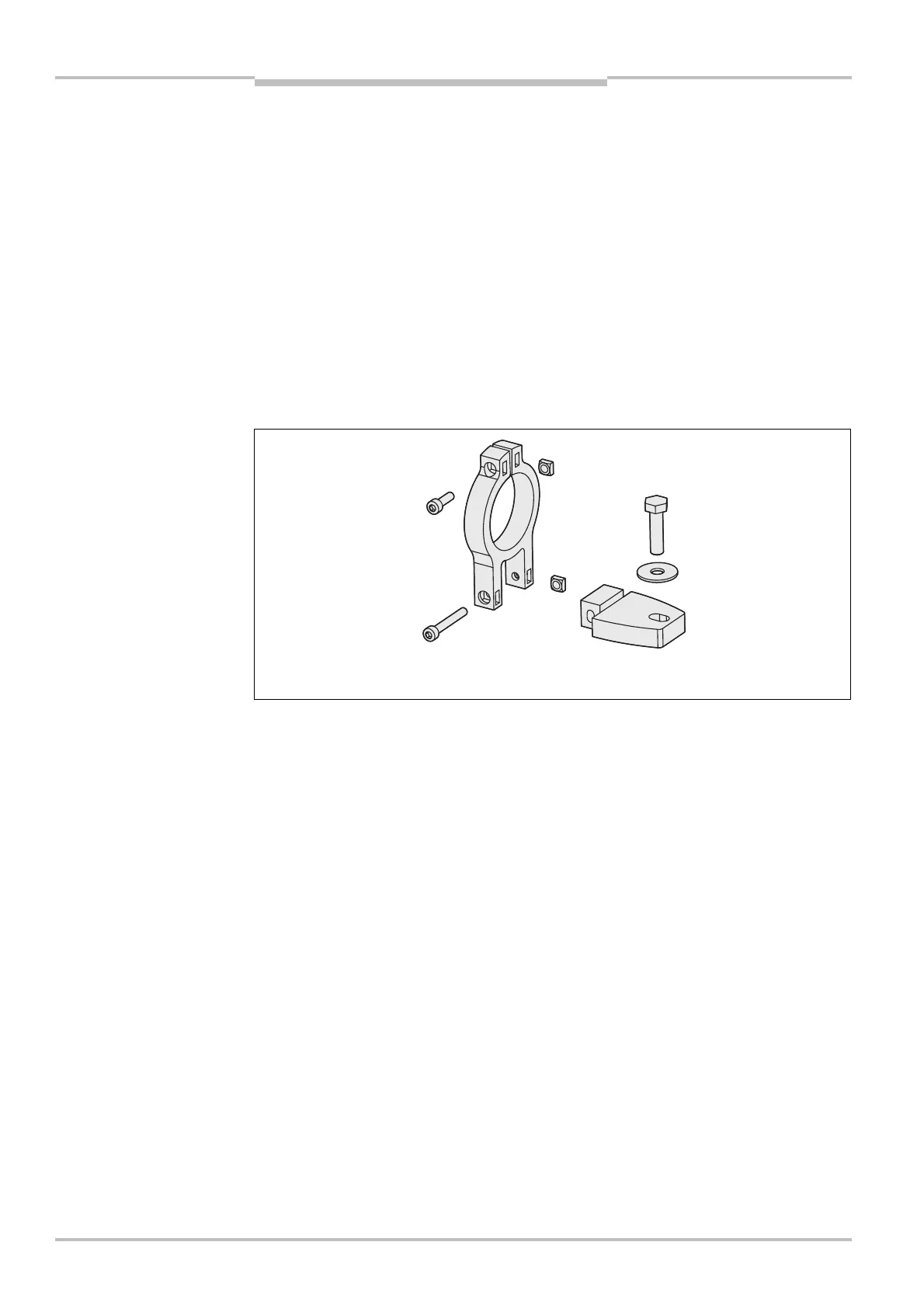

Fig. 22: Composition of the
swivel mount bracket
Part No.
2030510
AUDIN - 7 bis rue de Tinqueux - 51100 Reims - France - Tel : 03.26.04.20.21 - Fax : 03.26.04.28.20 - Web : http: www.audin.fr - Email : info@audin.fr

SICK M4000 Advanced Specifications

General

Type	Multiple light beam safety device
Enclosure rating	IP65
Supply voltage	24 V DC
Safety integrity level	SIL3
Performance level	PL e
Protection Rating	IP65
Operating Voltage	24 V DC
Number of beams	2 to 4 beams
Resolution	70 mm
Ambient operating temperature	-25 °C ... +55 °C
Angular Resolution	Not applicable
Operating Temperature	-25 °C ... +55 °C
