SICK M4000 Advanced

Chapter 13 Operating Instructions
M4000 Adv., Adv. A/P, Area
102 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 8010797/PA53/27-06-05
Annex
13.3 Alignment templates
For the alignment of the M4000 Advanced with integrated laser alignment aid you need
two alignment templates:
• alignment template for mirrors
• alignment template for the sender
The alignment templates are in the delivery of the M4000 receiver
34)
. If you no longer have
the alignment templates supplied, you can make new templates using the master for
copying on the next page.
 Separate the alignment templates along the perforated line.
 Pull the protective film off the self-adhesive strips on the rear of the alignment
templates.
34)
Only with devices with integrated laser alignment aid.
Note

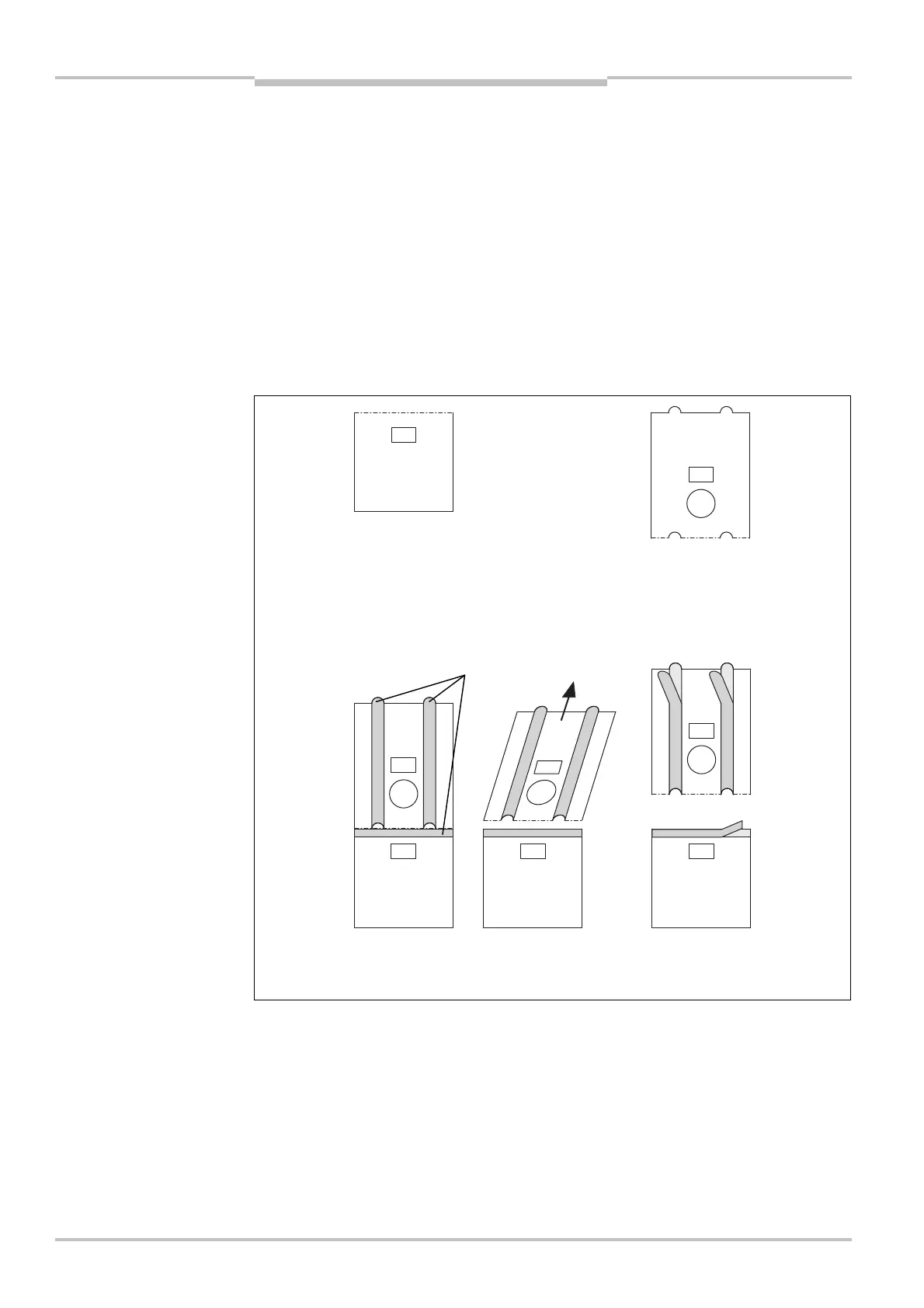

Fig. 58: Illustration of the
alignment templates
Alignment template for mirrors
(front view)
Alignment template for the sender
(front view)
Separate
alignment
templates at
perforation (rear view)
Remove
protective film
from
the
self-
adhesive strips (rear view)
Self-adhesive
strips
