SICK M4000 Advanced Manual

Operating Instructions Chapter 3
M4000 Adv., Adv. A/P, Area
8010797/PA53/27-06-05 © SICK AG • Industrial Safety Systems • Germany • All rights reserved
17
Product description

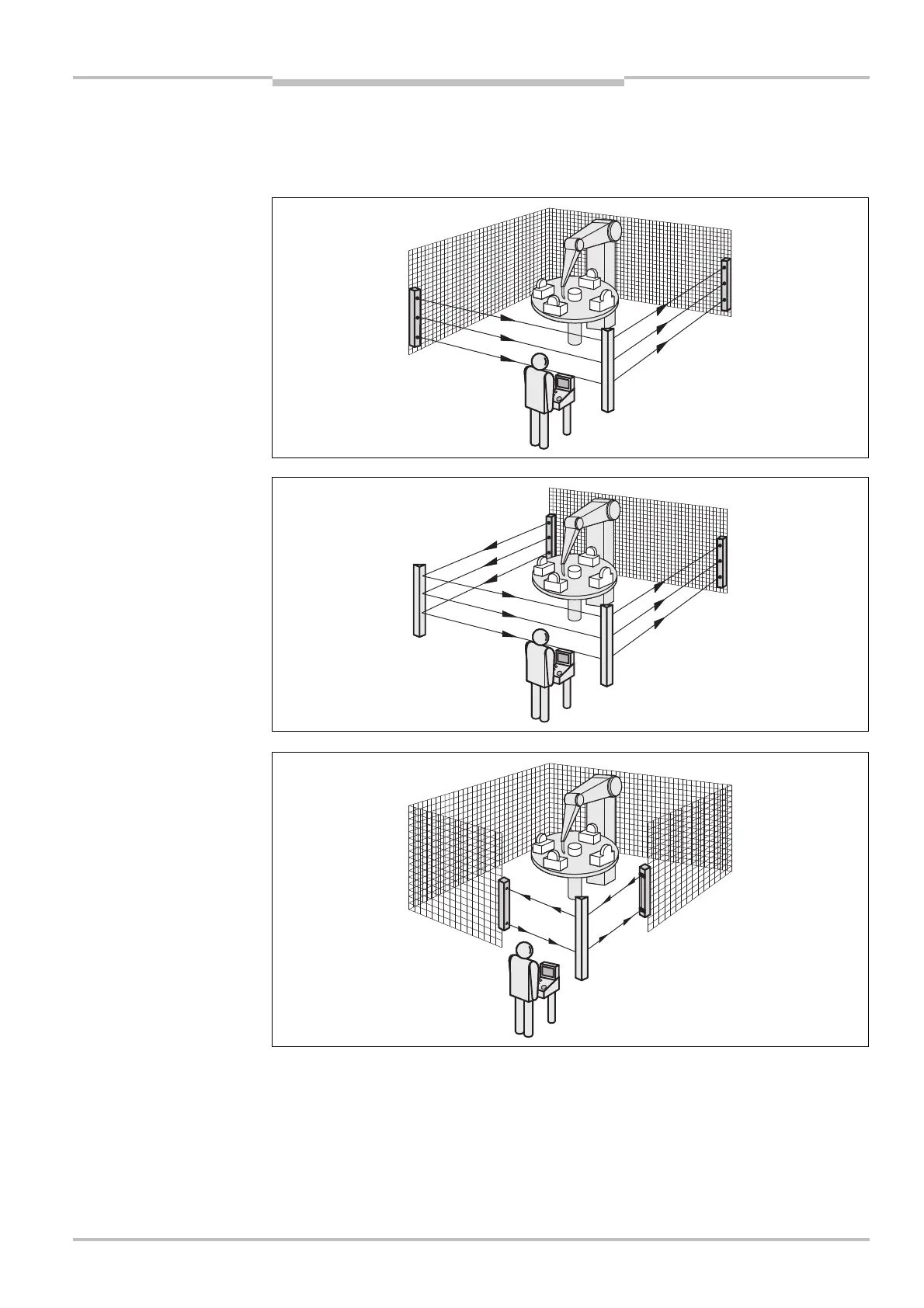

3.3.2 Access protection on several sides with the aid of deflector mirrors
You can secure two sides of a hazardous area by using one deflector mirror (see Fig. 8),
with two deflector mirrors you can secure three sides (see Fig. 9).
Fig. 8: Access protection with
an M4000 Advanced multiple
light beam safety device and
one deflector mirror
Fig. 9: Access protection with
an M4000 Advanced multiple
light beam safety device and
two deflector mirrors
Fig. 10: Access protection
with an
M4000 Advanced A/P
multiple light beam safety
device and one deflector
mirror
AUDIN - 7 bis rue de Tinqueux - 51100 Reims - France - Tel : 03.26.04.20.21 - Fax : 03.26.04.28.20 - Web : http: www.audin.fr - Email : info@audin.fr

SICK M4000 Advanced Specifications

General

Type	Multiple light beam safety device
Enclosure rating	IP65
Supply voltage	24 V DC
Safety integrity level	SIL3
Performance level	PL e
Protection Rating	IP65
Operating Voltage	24 V DC
Number of beams	2 to 4 beams
Resolution	70 mm
Ambient operating temperature	-25 °C ... +55 °C
Angular Resolution	Not applicable
Operating Temperature	-25 °C ... +55 °C
