Product description
The M4000 multiple light beam safety device operates correctly as a protective device only
if the following conditions are met:
• The control of the machine must be electrical.
• It must be possible to achieve a safe state on the machine at any time.
• Sender and receiver must be mounted in a way that objects penetrating the hazardous
area are safely identified by the M4000.
• The reset button must be fitted outside the hazardous area such that it cannot be
operated by a person working inside the hazardous area. When operating the reset
button, the operator must have full visual command of the hazardous area.
• The statutory and local rules and regulations must be observed when installing and
using the device.

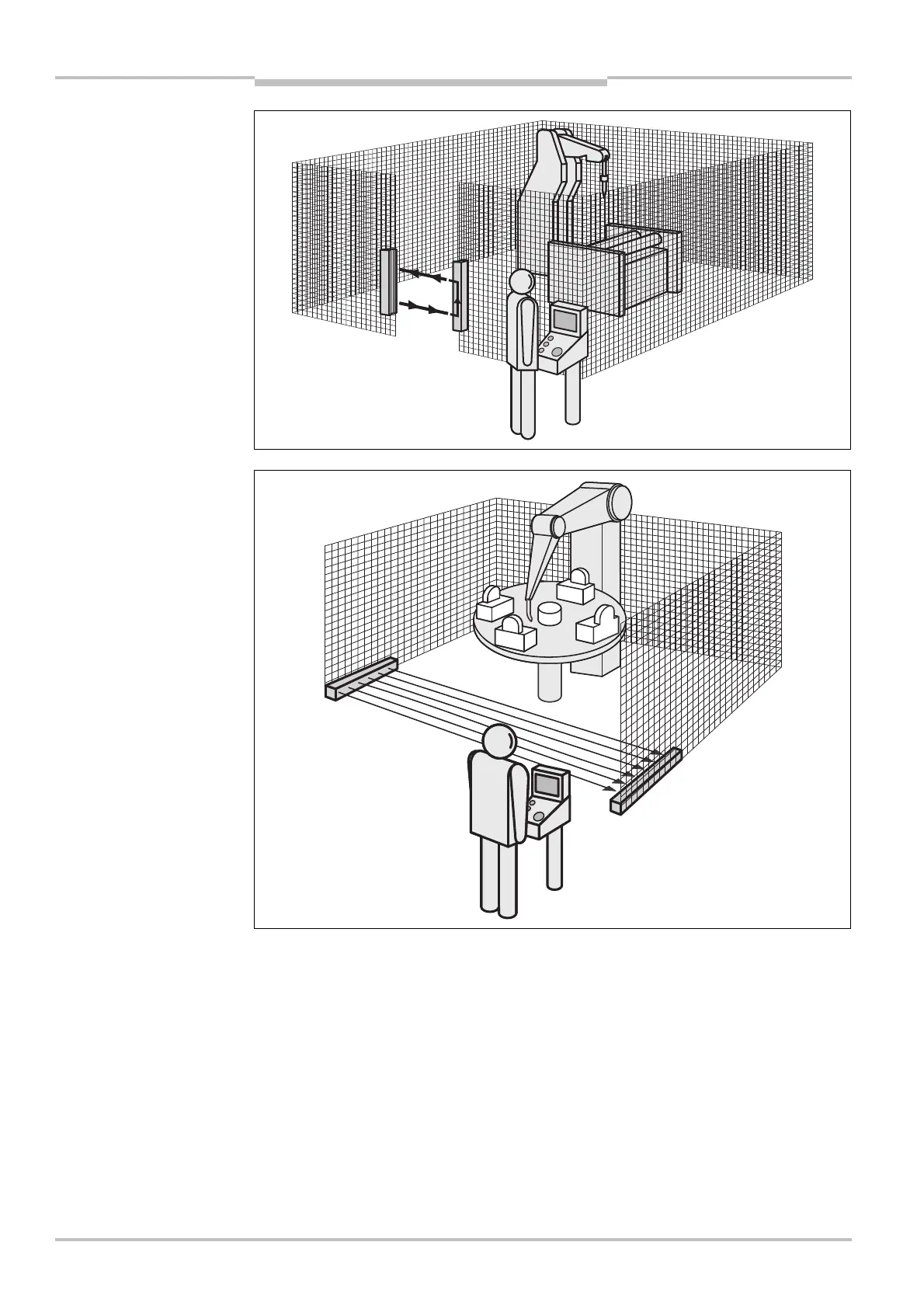

Fig. 6: Access protection with
an M4000 Advanced A/P
multiple light beam safety
device
Fig. 7: Access protection with
an M4000 Area 60/80
multiple light beam safety
device
