11.3.9 Deflector mirror PSK45
• If you use a two-beam M4000 Advanced A/P, then you can use two PSK45 deflector
mirrors instead of the M4000 Passive.
• The deflector mirror PSK45 is not suitable for column mounting.
• When using deflector mirrors, the effective scanning range is reduced (see Tab. 9 on
page 26).
• The formation of droplets of heavy contamination can be detrimental to the reflection
behaviour. Take the necessary organisational measures to avoid the formation of
droplets on the deflector mirrors.

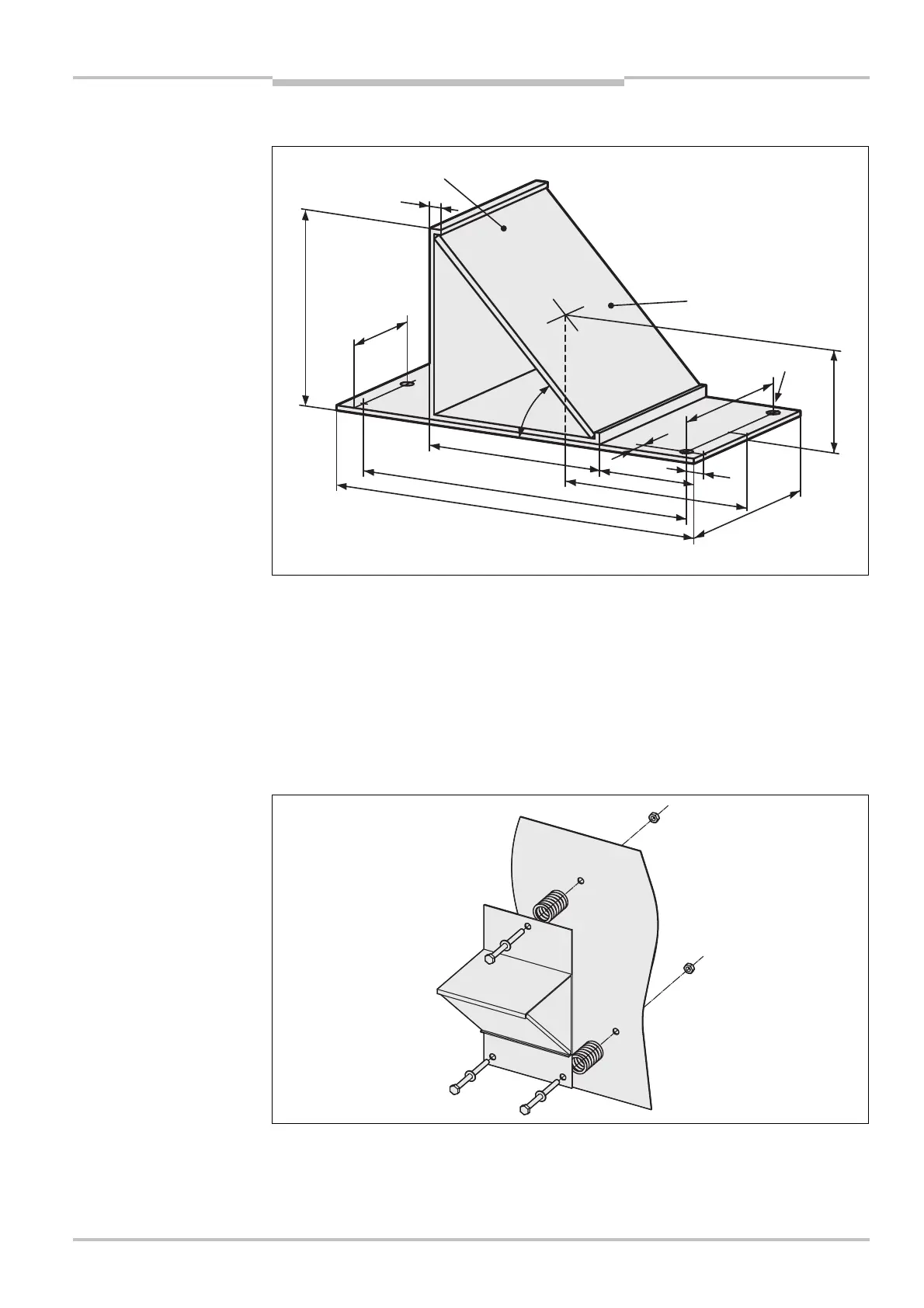

Fig. 56: Dimensional drawing
deflector mirror PSK45 (mm)
Notes
Fig. 57: Mounting of the
deflector mirror PSK45
Mirror
Mirror: 80
×
96.8
×
3
±0.3
Middle of rear surface of the
mirror
40
4
±0.5
8
±0.5
64
80
(37.5)
8
±0.5
31
(61)
129
145
73.5
±0.5
75
+1
3
×

5.3
Part No.
5306053
45°
