Chapter 5 Operating Instructions
M4000 Adv., Adv. A/P, Area
40 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 8010797/PA53/27-06-05
Mounting
5.2.3 Mounting with rigid mounting bracket
The rigid mounting bracket is a black, powder-coated bracket without adjustment. It is only
suitable for mounting surfaces on which it is not necessary to compensate for large
mechanical tolerances. The alignment of the sender and receiver can be corrected after
mounting using only the slots.
When mounting the rigid mounting bracket ensure that the four bolts marked and
remain accessible, allowing you later to adjust and lock the multiple light beam safety
device in position.
When mounting the bracket, note the distance and the position of the sliding nuts as
described in chapter 11.3 “Dimensional drawings” on page 80f.
The mounting screw is not included in the delivery.

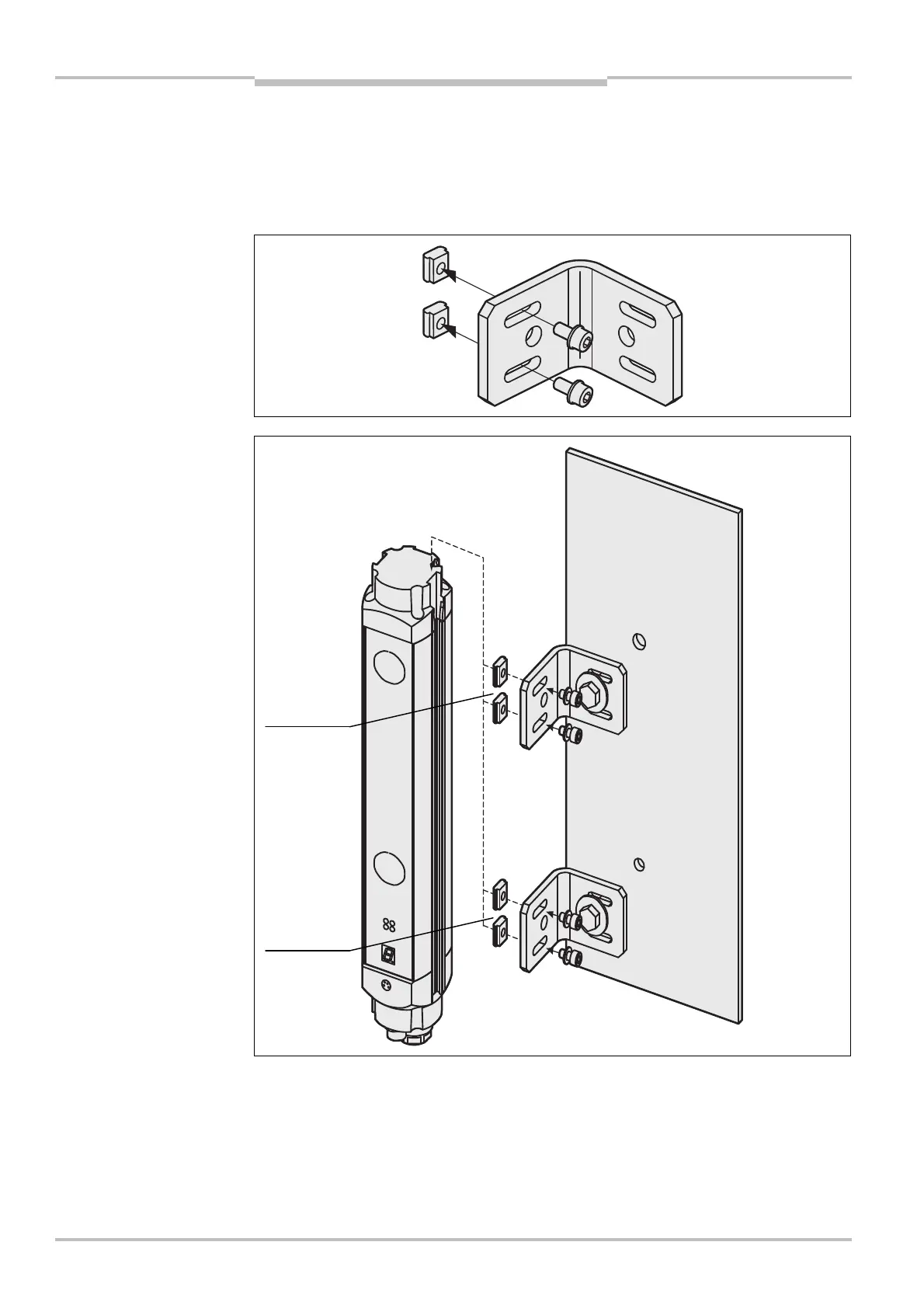

Fig. 26: Rigid mounting
bracket
Fig. 27: Mounting the M4000
with rigid mounting bracket
Notes
