Technical specifications
Length of the monitored area S
[mm]
Dimension L1
[mm]
Dimension L2
[mm]
300 387 416
450 537 566
600 687 716
750 837 866
900 987 1016
1050 1137 1166
1200 1287 1316
1350 1437 1466
1500 1587 1616
1650 1737 1766
1800 1887 1916
11.3.4 Swivel mount bracket
Tab.
33
:
Dimensions of the
M4000 Area 60/80,
dependent of the length of
the monitored area

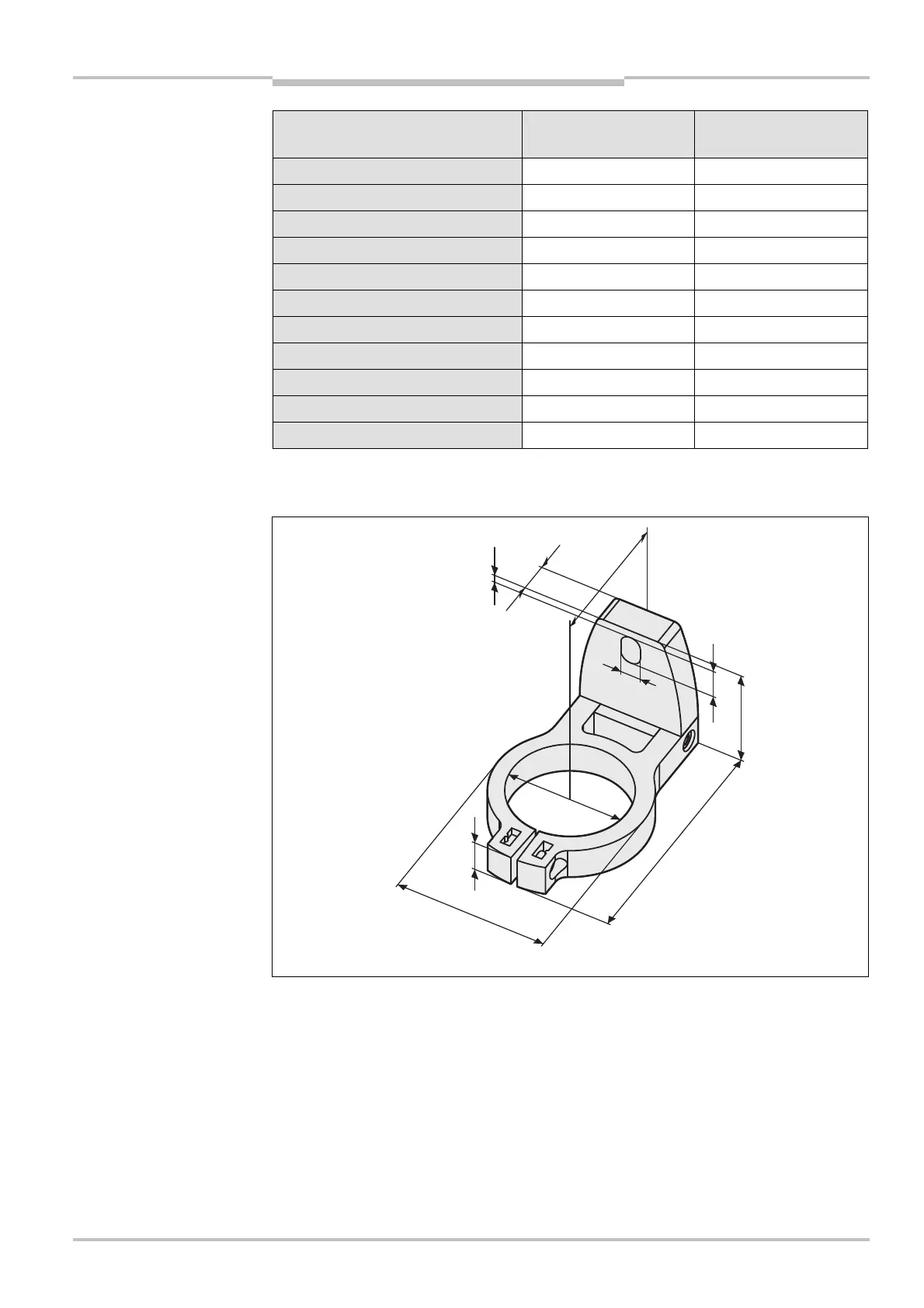

Fig. 51: Dimensional drawing
swivel mount bracket (mm)
3.6
12.5
58
8
13
59
100
49
64
14
Part No.
2030510
AUDIN - 7 bis rue de Tinqueux - 51100 Reims - France - Tel : 03.26.04.20.21 - Fax : 03.26.04.28.20 - Web : http: www.audin.fr - Email : info@audin.fr

SICK M4000 Advanced Specifications

General

Type	Multiple light beam safety device
Enclosure rating	IP65
Supply voltage	24 V DC
Safety integrity level	SIL3
Performance level	PL e
Protection Rating	IP65
Operating Voltage	24 V DC
Number of beams	2 to 4 beams
Resolution	70 mm
Ambient operating temperature	-25 °C ... +55 °C
Angular Resolution	Not applicable
Operating Temperature	-25 °C ... +55 °C
