Electrical installation
Pin Wire colour Sender Receiver or
M4000 Advanced A/P
10 Purple Device communication (EFI
B
) Device communication (EFI
B
)
11 Grey/pink Reserved Belt stop/C1 (only in conjunction
with external switching amplifier,
e.g. UE403)
FE Green Functional earth Functional earth
• For the connection of pin 9 and 10 only use cable with twisted cores, e.g. the SICK
connection cables available as accessories (see section 12.7 “Accessories” on
page 98).
• If you do not use either a SICK switching amplifier or a SICK bus node on the system
connections pin 9 and pin 10 (EFI device communication), to improve the EMC
behaviour we recommend — especially when using the combination M4000 Advanced
or M4000 Advanced A/P with the UE403 switching amplifier at the extension
connection — the termination of the connections pin 9 and 10 (EFI device
communication) on the system connection in the control cabinet using a resistor of
182 (SICK part number 2027227).
6.1.2 M4000 Area 60/80
Pin Wire colour Sender Receiver
1 Brown Input 24 V DC (voltage supply) Input 24 V DC (voltage supply)
2 Blue 0 V DC (voltage supply) 0 V DC (voltage supply)
3 Grey Test input:
0 V: external test active
24 V: external test inactive
OSSD1 (output signal switching
device 1)
4 Pink Reserved OSSD2 (output signal switching
device 2)
5 Red Reserved Reset/restart
6 Yellow Reserved External device monitoring
(EDM)
7 White Reserved Application diagnostic output
(ADO)
8 Red/blue Reserved Reset required
Notes

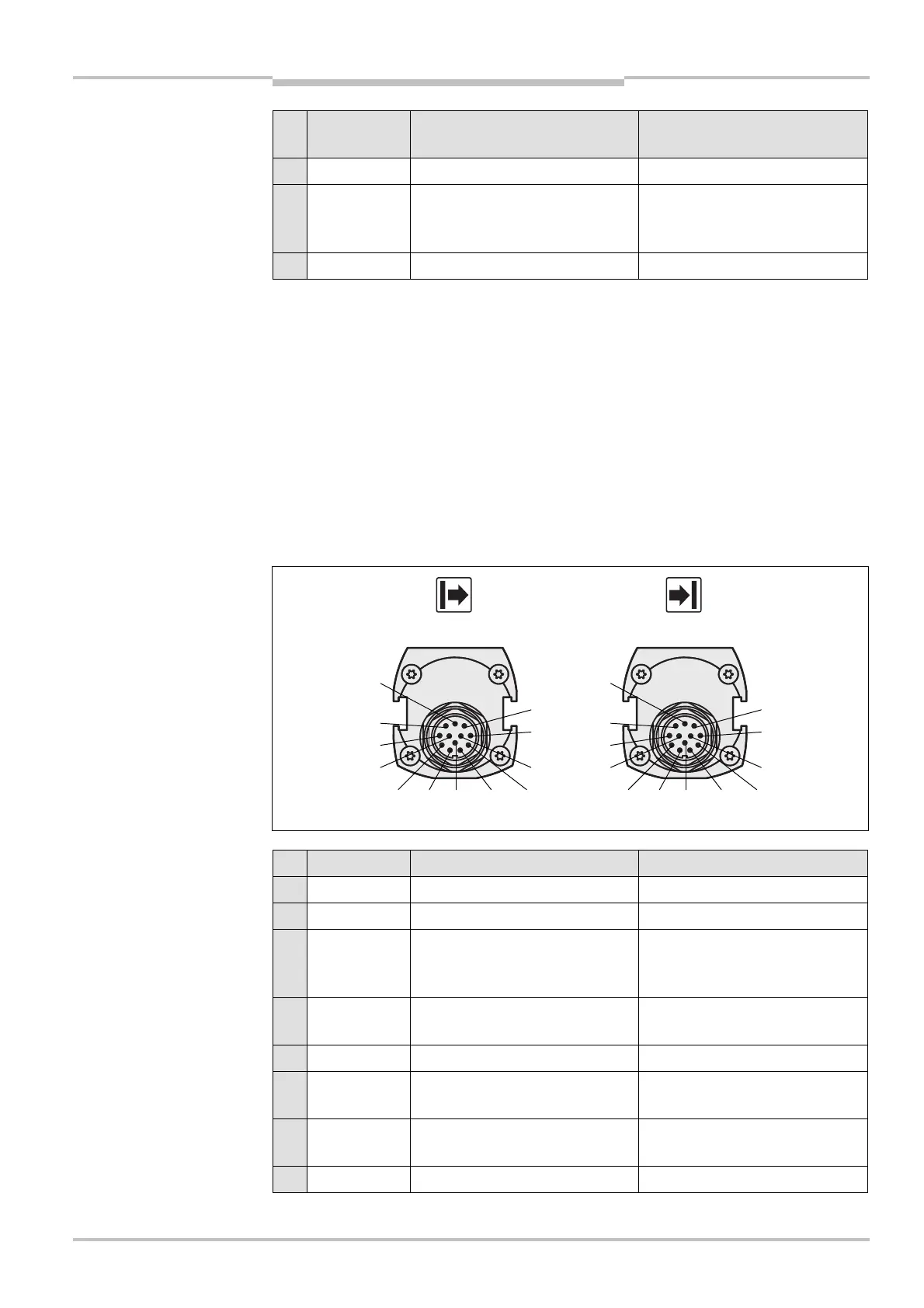

Fig. 31: Pin assignment
system connection M4000
Area 60/80 M26
× 11 + FE
system connection M4000
Area 60/80 M26
× 11 + FE
