Operating Instructions Chapter 5
M4000 Adv., Adv. A/P, Area
8010797/PA53/27-06-05 © SICK AG • Industrial Safety Systems • Germany • All rights reserved
35
Mounting
Observe the safety distance of the system during mounting. On this subject read
chapter 5.1 “Determining the safety distance” on page 30.
Mount the multiple light beam safety device such that the risk of failure to detect is
excluded. Ensure that the protective device cannot be bypassed by crawling
underneath, reaching over, climbing between 2 beams, jumping over or moving the
multiple light beam safety device.
Once the system is mounted, one or several of the enclosed self-adhesive information
labels must be affixed:
– Use only information labels in the language which the users and operators of the
machine understand.
– Affix the information labels such that they are easily visible by the users and
operators during operation. After attaching additional objects and equipment, the
information labels must not be concealed from view.
– Affix the information label “Important Notices” to the system in close proximity to
sender and receiver.
When mounting a M4000 with integrated laser alignment aid, ensure that the laser
warning labels on the device remain visible. If the laser warning labels are covered, e.g.
on installation of the M4000 in a device column (accessory), you must apply the laser
warning labels supplied with the receiver in the appropriate place on the cover.

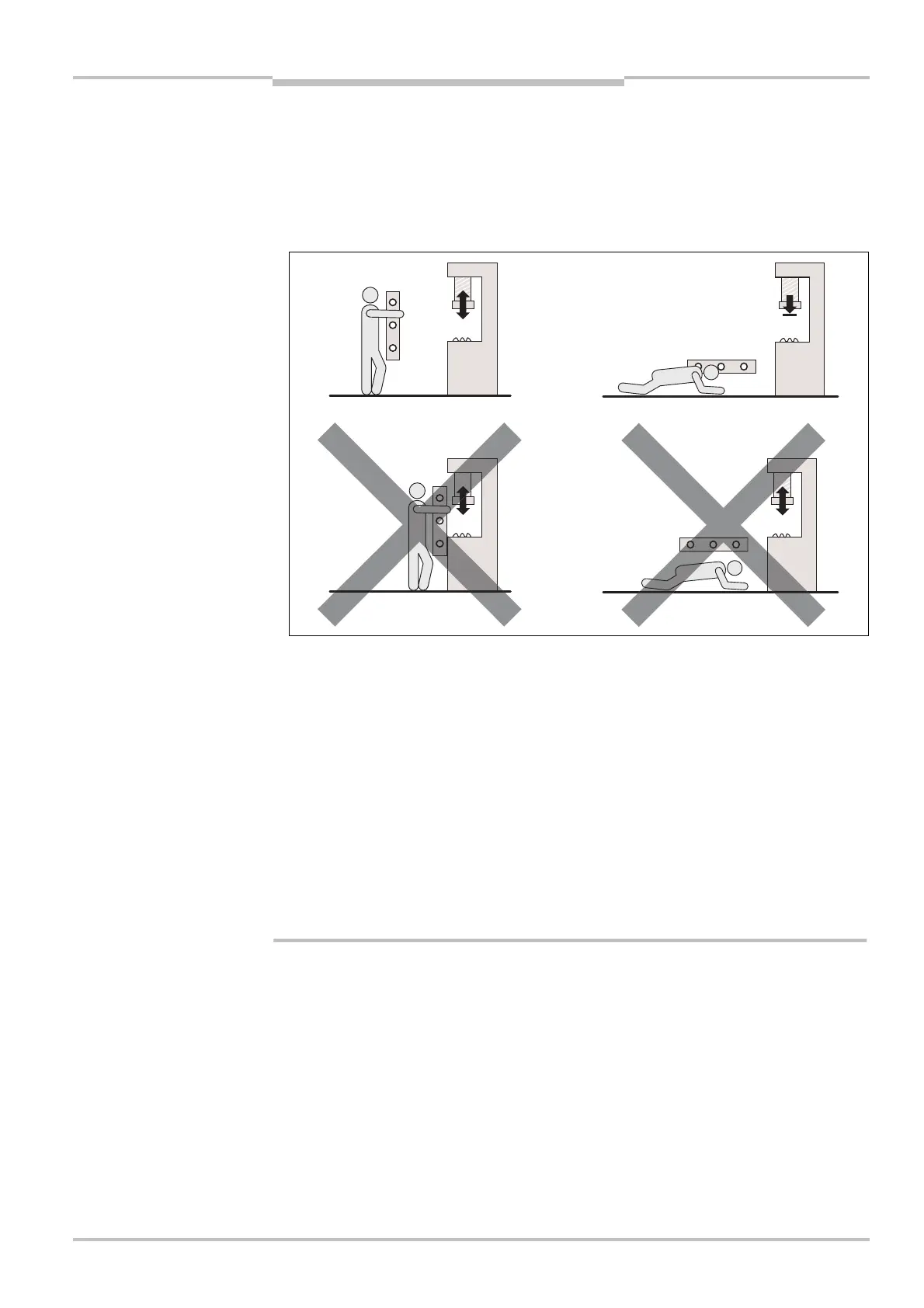

Fig. 21: The correct
installation (above) must
eliminate the errors (below)
of reaching through and
crawling beneath
