SICK M4000 Advanced Manual

Chapter 5 Operating Instructions
M4000 Adv., Adv. A/P, Area
42 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 8010797/PA53/27-06-05
Mounting
 When mounting the pivoting mounting bracket ensure that the bolts marked
, ,  and  remain accessible, allowing you later to adjust and lock the multiple
light beam safety device in position.
 When mounting the bracket, note the distance and the position of the sliding nuts as
described in chapter 11.3 “Dimensional drawings” on page 80f.
 The mounting screw is not included in the delivery.

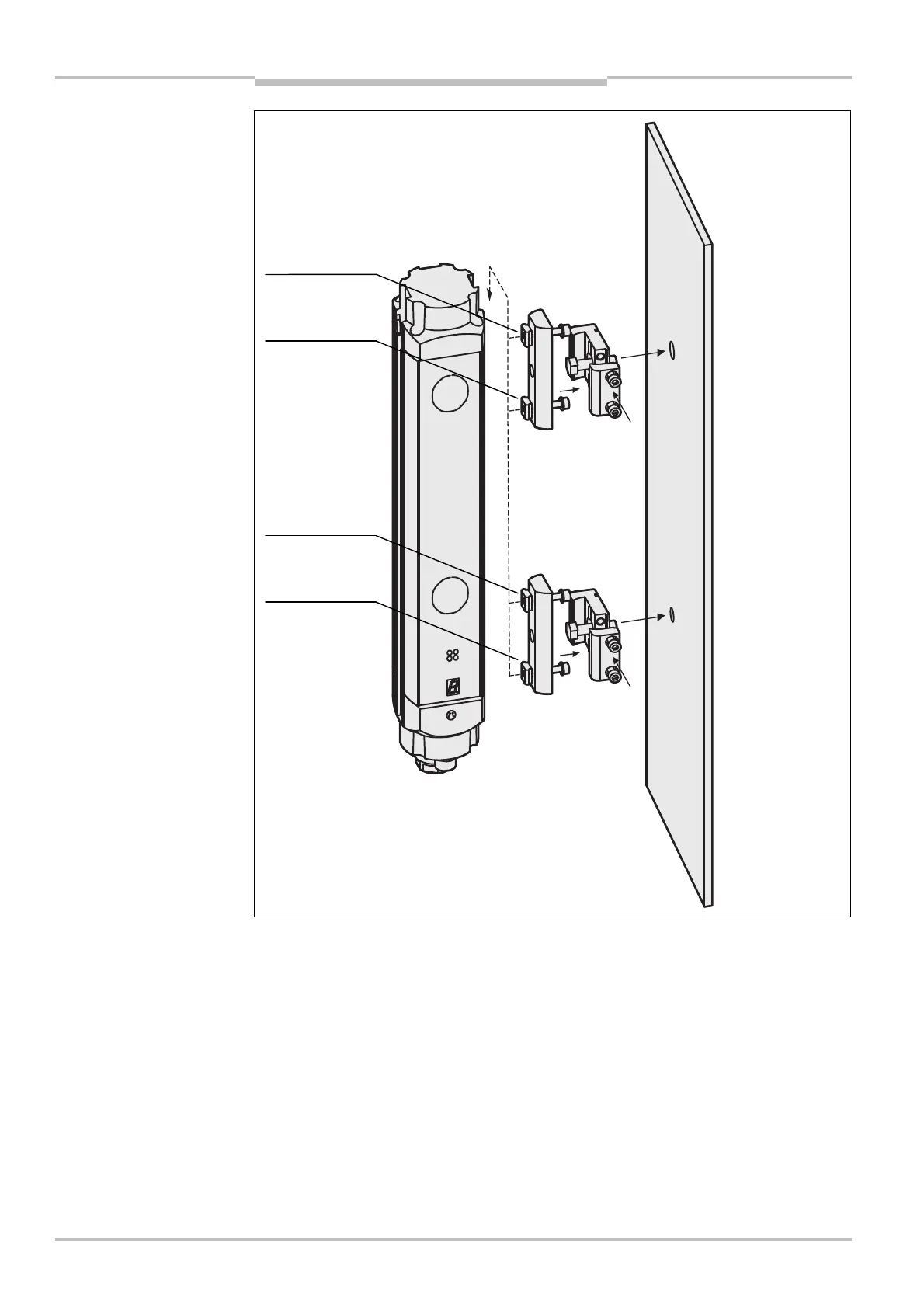

Fig. 29: Mounting the M4000
with pivoting mounting
bracket
Notes
Sliding nut




Sliding nut
Sliding nut
Sliding nut
AUDIN - 7 bis rue de Tinqueux - 51100 Reims - France - Tel : 03.26.04.20.21 - Fax : 03.26.04.28.20 - Web : http: www.audin.fr - Email : info@audin.fr

SICK M4000 Advanced Specifications

General

Type	Multiple light beam safety device
Enclosure rating	IP65
Supply voltage	24 V DC
Safety integrity level	SIL3
Performance level	PL e
Protection Rating	IP65
Operating Voltage	24 V DC
Number of beams	2 to 4 beams
Resolution	70 mm
Ambient operating temperature	-25 °C ... +55 °C
Angular Resolution	Not applicable
Operating Temperature	-25 °C ... +55 °C
