SICK M4000 Advanced Manual

Chapter 7 Operating Instructions
M4000 Adv., Adv. A/P, Area
54 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 8010797/PA53/27-06-05
Commissioning
M4000 Advanced A/P
Meaning during alignment of the M4000 Advanced A/PDisplay
2 beam 4 beam
 The first light beam is not
aligned.
None of the light beams is
aligned.
 – Only the first light beam is
aligned.
 – Only the last light beam is
aligned.
 The first light beam is aligned,
but the alignment is still slightly
off.
All the light beams hit the
receiver, but the alignment is
still slightly off.
No indication and
green LED
illuminated.
The alignment is now true; the devices must be locked in this
position.

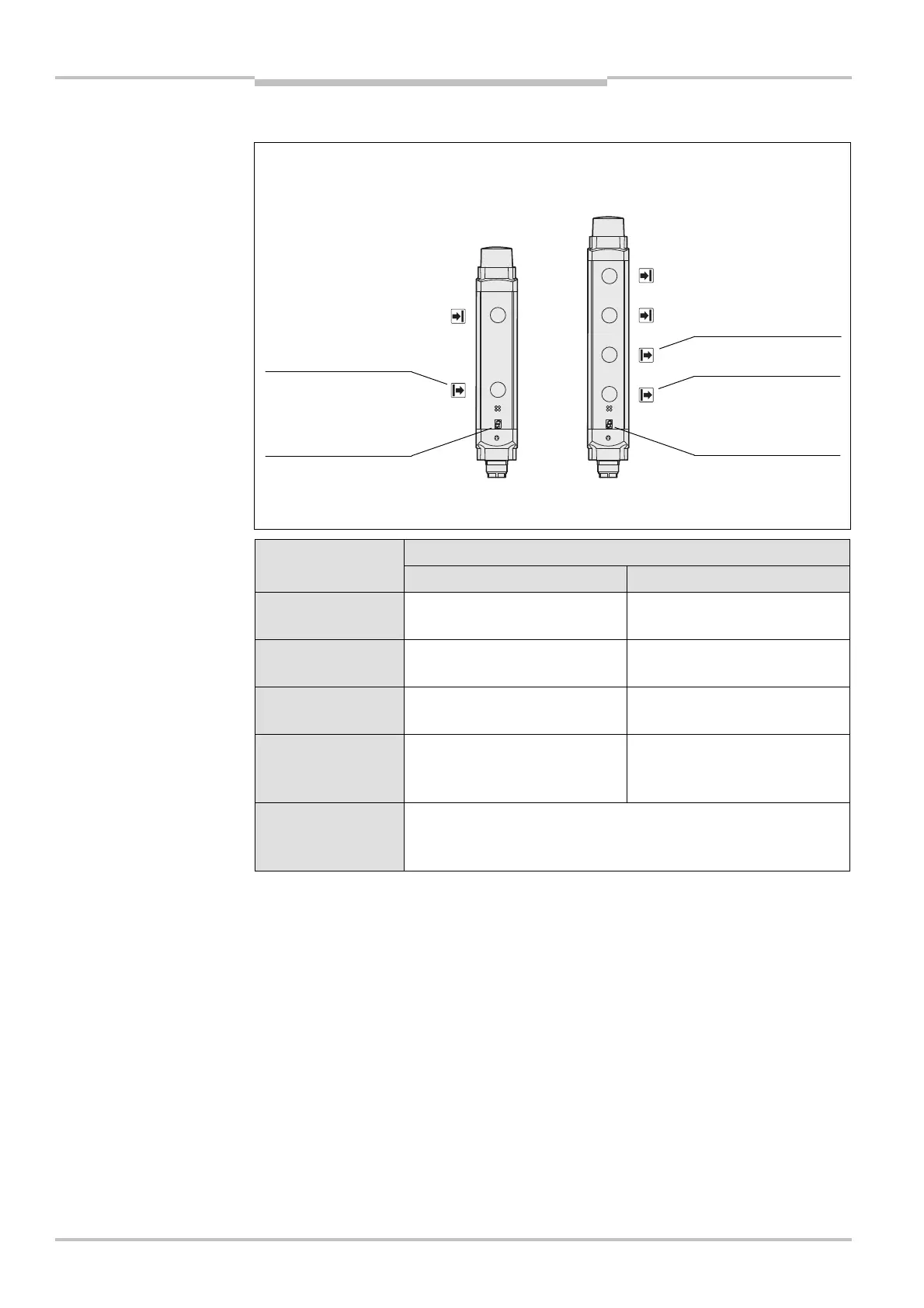

Fig. 39: Illustration of the
beam order of the
M4000 Advanced A/P
Tab. 23: Indications on the
76segment display during
alignment of the
M4000 Advanced A/P
M4000
Advanced A/P
(2 beam)
M4000
Advanced
A/P
(4 beam)
First
light
beam
76segment display
First
light
beam
76segment display
Last
light
beam
AUDIN - 7 bis rue de Tinqueux - 51100 Reims - France - Tel : 03.26.04.20.21 - Fax : 03.26.04.28.20 - Web : http: www.audin.fr - Email : info@audin.fr

SICK M4000 Advanced Specifications

General

Type	Multiple light beam safety device
Enclosure rating	IP65
Supply voltage	24 V DC
Safety integrity level	SIL3
Performance level	PL e
Protection Rating	IP65
Operating Voltage	24 V DC
Number of beams	2 to 4 beams
Resolution	70 mm
Ambient operating temperature	-25 °C ... +55 °C
Angular Resolution	Not applicable
Operating Temperature	-25 °C ... +55 °C
