Engineering via SICAM WEB
SICAM A8000 / CP-8000 • CP-8021 • CP-8022 Manual Unrestricted 371
DC8-037-2.02, Edition 10.2017
You can extend the work area by means of clicking on the sidebars left and/or right beside the
work area.

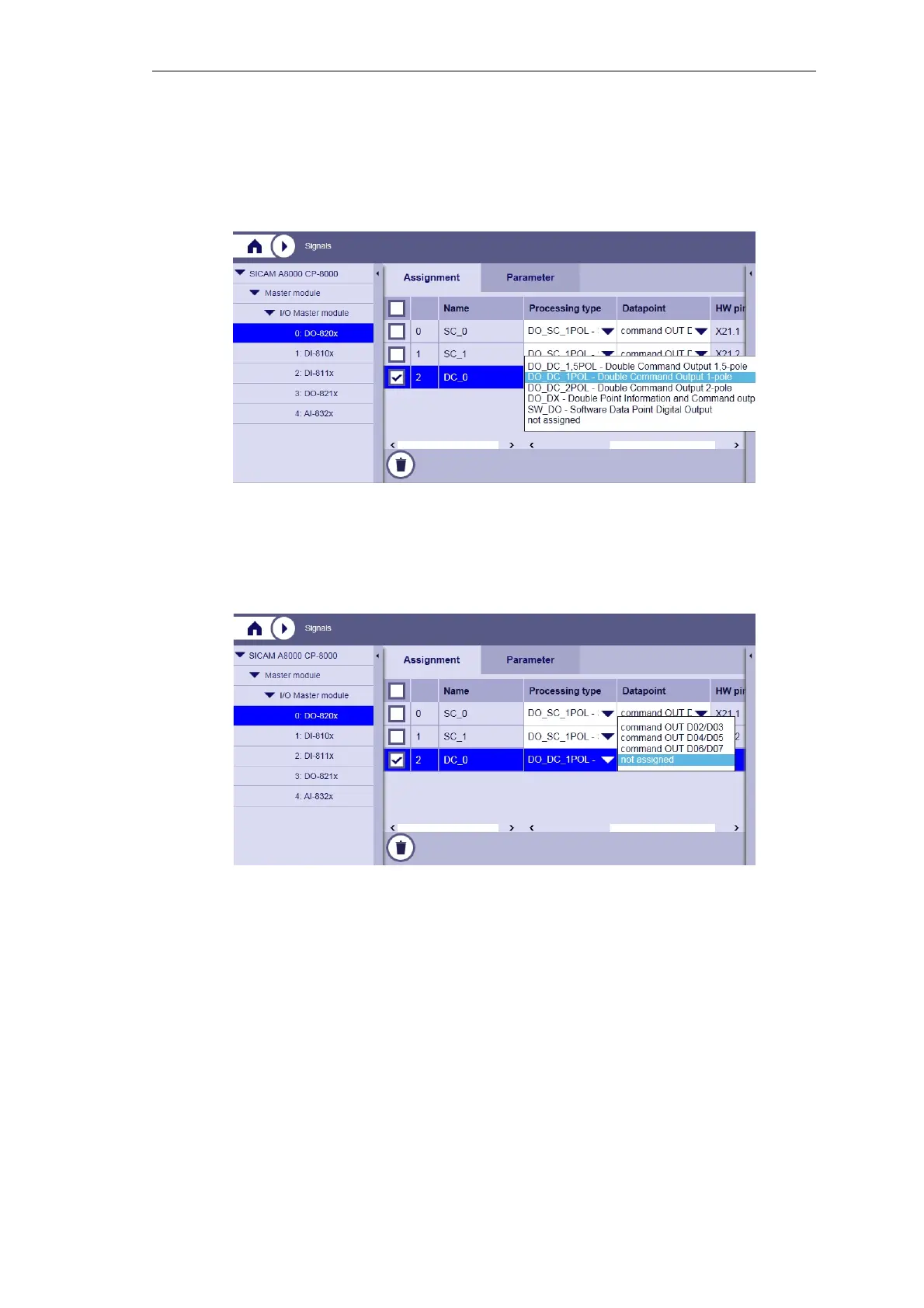

• In the corresponding dropdown list, select the processing type for the respective signal
In the dropdown list only those processing types are offered that are compatible with the TI of
the signal.
• In the corresponding dropdown list, select the DATAPOINT for the respective signal
In the dropdown list only those datapoints are offered that are compatible with the processing
type and that are not yet in use.
The HW pin is automatically assigned, as soon as you have defined processing type and
datapoint of the signal.
