Use Cases
588 Unrestricted SICAM A8000 / CP-8000 • CP-8021 • CP-8022 Manual
DC8-037-2.02, Edition 10.2017
E.1 Usage as Telecontrol Substation
Features
• Communication with the control system via IEC 60870-5-104
• 1 IP address
• 1 subnet mask
• 1 default router
• Communication to the process with local peripherals or serial communications protocols
(e.g. MODBUS, …)
• Parameter Network settings | IP address | Mode of Ethernet ports =
1 IP address (connected ports in switch mode)
(in this case both Ethernet interfaces use the MAC address of X1)

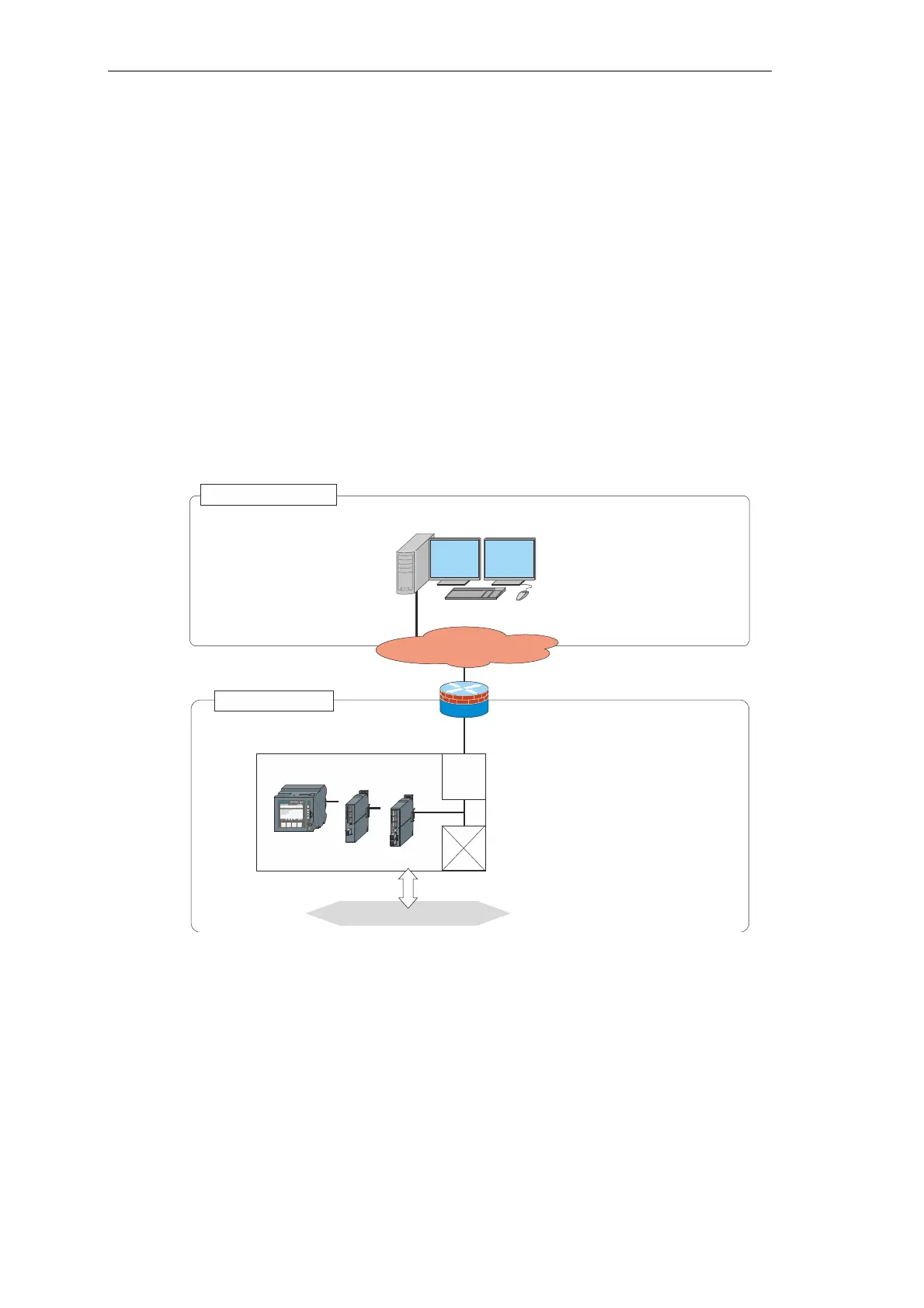

In this configuration CP-8000, CP-8021 or CP-8022 can be reached with the set IP ad-
dress via both Ethernet interfaces (X1 or X4). The unused port is not deactivated.
Office Zone
CP-8000
Process
ESC
CP-8021
CP-8022
172.17.0.22
PREx / ET84
IP address
172.16.0.3
255.255.0.0
172.16.0.254
Subnet mask
Default router
IP address 172.16.0.254
Substation Zone
Control Center Zone
