Installation and Circuitry
SICAM A8000 / CP-8000 • CP-8021 • CP-8022 Manual Unrestricted 181
DC8-037-2.02, Edition 10.2017

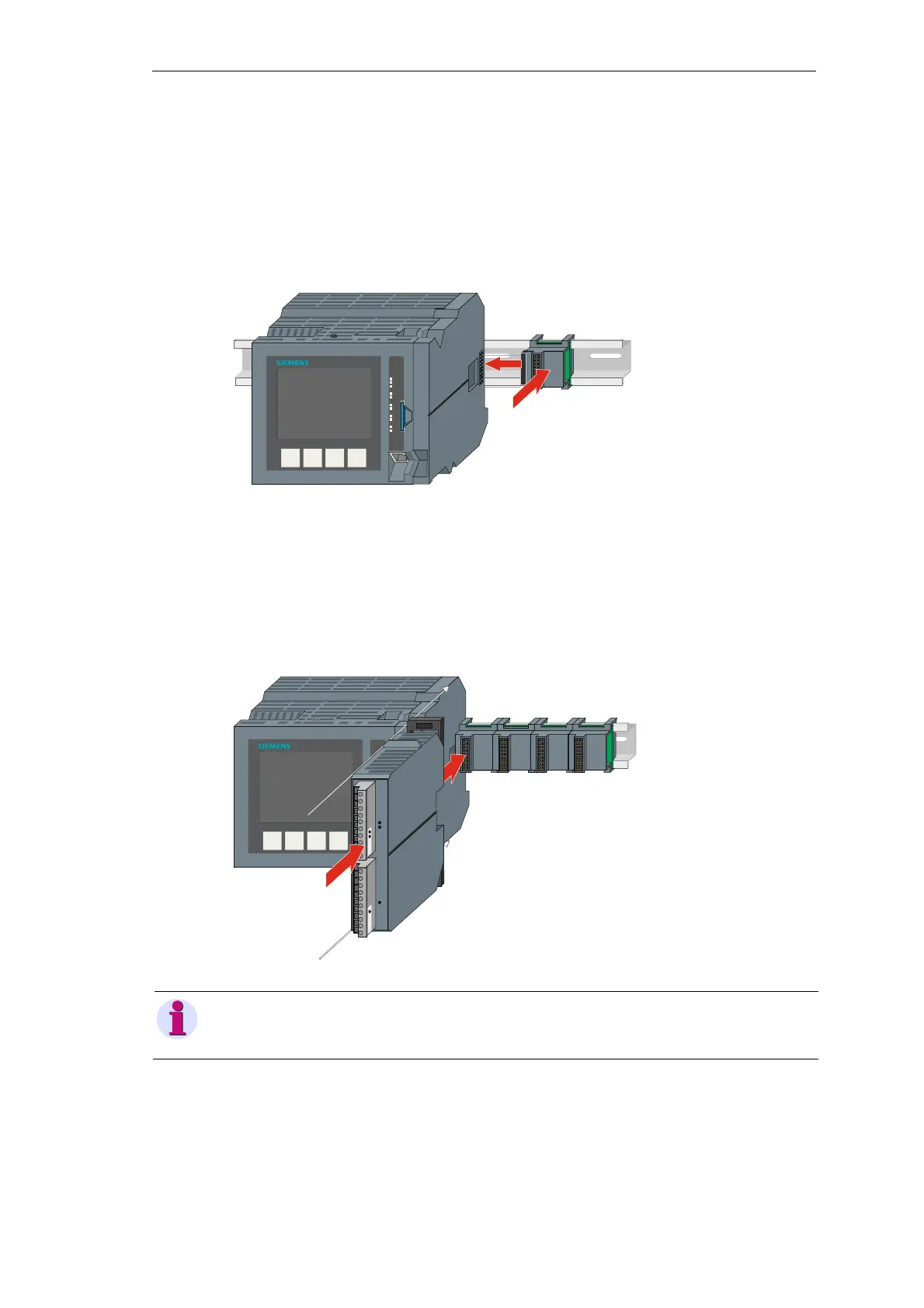

6.4.4.2 Mounting of the Bus Connector for SICAM I/O Modules
Each SICAM I/O Module is equipped with a bus connector (CM-8812). This must be equipped
separately from the I/O Module. You must disconnect the bus connector before mounting.
Click the first bus connector right beside the coupling module on the DIN rail j and push it in-
to the bus plug of the coupling module k. Both elements must be aligned seamlessly.
Afterwards you can attach the bus connectors of further SICAM I/O Modules in the same way.
6.4.4.3 Mounting of the SICAM I/O Modules
The SICAM I/O Modules can be mounted as shown in following picture.
Note
The tongue and groove system integrated in the modules facilitates the correct combination. The module
is only connected correctly when the locking hook is snapped onto the DIN rail.
SICAM CMIC
F4F3F2F1
P OK
RY
ER
E TH
LK1
P K1
R S - 232
OH2
RT X2
R S - 485
OH3
RT X3
E TH
LK4
P K4
SD
X4
k
j
SICAM A8000 CP-8000
SI CA M CM I C
F4F3F2F1
POK
RY
ER
E TH
LK1
PK1
R S-232
OH2
RTX2
R S-485
OH3
RTX3
E TH
LK4
PK4
SD
X4
RY
SICAM A80 00 CP-8000
