General Information
SICAM A8000 / CP-8000 • CP-8021 • CP-8022 Manual Unrestricted 31
DC8-037-2.02, Edition 10.2017

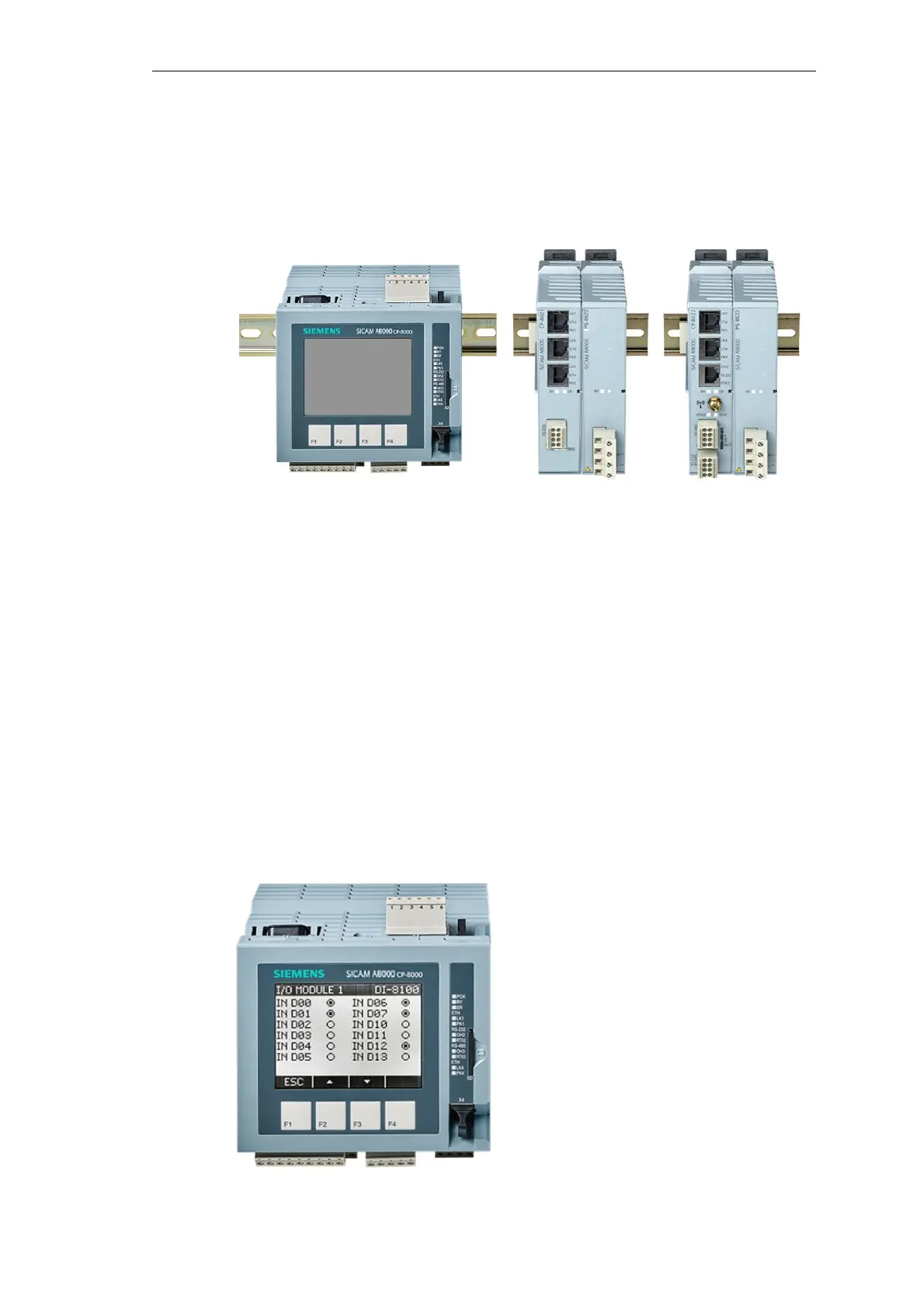

1.1.3 Mechanical Design
The mechanical design is focused on achieving highest ease in handling. As a result,
CP-8000/CP-802x is designated for mounting on a DIN rail (TS35).
The communication interfaces are designed according to the RJ45 standard or as removable
terminals.
Process signals can be connected via removable screw terminals directly at CP-8000 or at
additionally equipped I/O Modules. This efficient and simple way of interfacing permits a direct
sensor/actuator wiring without requiring the use of intermediate terminals. Wherethrough the
peripheral signals can be acquired very close to their point of origin, a wide cabling can be re-
duced to a minimum.
When the system is exchanged no connections need to be detached, since the screw termi-
nals carry the wiring. Thereby the assembly effort required for the connection is considerable
less.
With delivery, the screw terminals are plugged on the device.
1.1.4 Local Operation with CP-8000
In addition to status LEDs, CP-8000 provides function keys and a display on the front of the
housing in order to enable a variety of .
