SICAM A8000 / CP-8000 • CP-8021 • CP-8022 Manual Unrestricted 591
DC8-037-2.02, Edition 10.2017

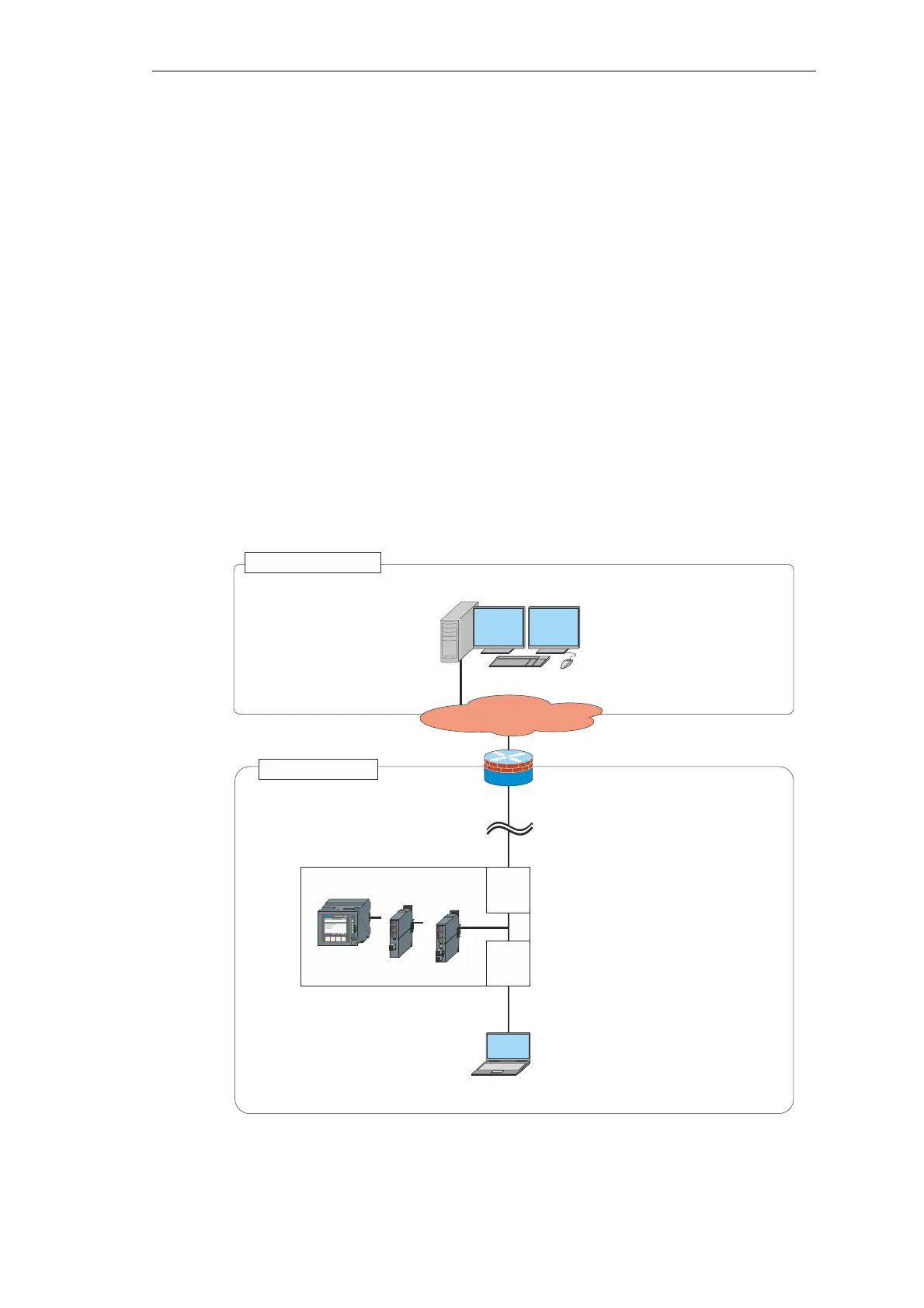

E.4 Usage as Telecontrol Substation with Integrated Switch
for SICAM TOOLBOX II Connection
Features
• Communication with the control system via IEC 60870-5-104
(Ethernet interface, X1 or X4, can be set by parameter)
• Communication with SICAM TOOLBOX II via http/https
(Ethernet interface, X1 or X4, can be set by parameter)
• CP-8000, CP-8021 or CP-8022 serves as switch between control system and
SICAM TOOLBOX II
By means of SICAM TOOLBOX II, which is connected via the integrated switch, it is pos-
sible to reach the local SICAM A8000 and further SICAM RTUs components via the “Con-
trol Center Zone“. It depends on the network configuration which can be reached.
• 1 IP address
• 1 subnet mask
• 1 default router
• Parameter Network settings | IP adress | Mode of Ethernet Ports =
1 IP address (connected ports in switch mode)
Office Zone
X4
X1
Router
SICAM TOOLBOX II
E SC
CP-8000
CP-8021
CP-8022
Control Center
IP address
172.16.0.4
255.255.0.0
172.16.0.254
Subnet mask
Default router
IP address
172.17.0.22
Subnet mask 255.255.0.0
IP address 172.16.0.254
PREx / ET84
IP address
Subnet mask
Default router
172.16.0.3
255.255.0.0
172.16.0.254
Substation Zone
Control Center Zone
