7.7.2.1.3 LAN/WAN Connection via Ethernet Interface
The parameterization via LAN/WAN is suitable if the engineering PC and (several)
CP-8000/CP-802x are operated in a network.

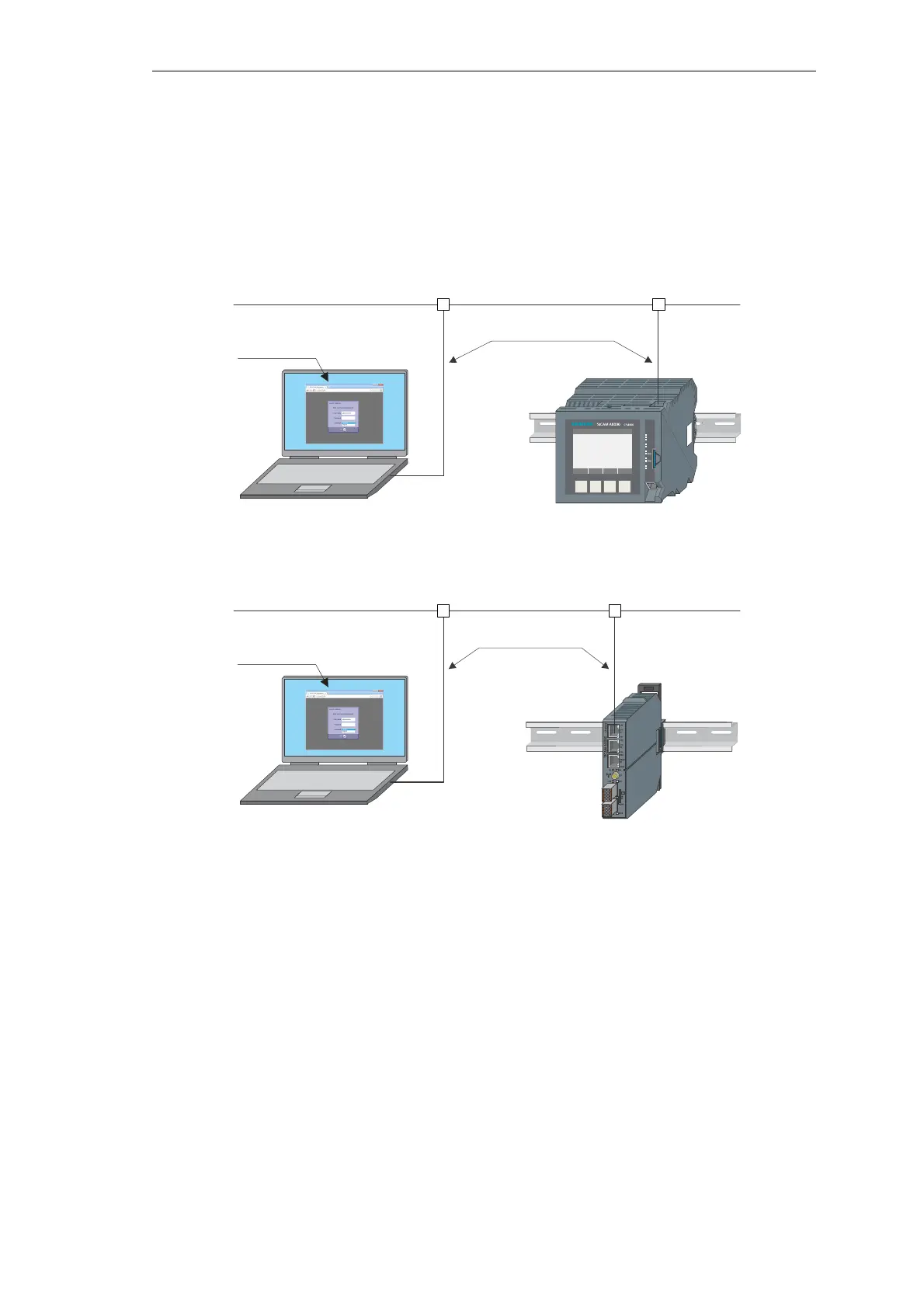

Engineering PC and CP-8000 are connected with a cross connected patch cable via one of
the Ethernet interfaces (X1 or X4).
Engineering PC and CP-802x are connected with a cross connected patch cable via one of
the Ethernet interfaces (X1 or X4).
F4
F3F2F1
POK
RY
ER
ETH
LK1
PK1
RS-232
OH2
RS-485
OH3
ETH
LK4
PK4
SD
X4
Ethernet TCP/IP IEC 60870-5-104
CP-8000
Standard patch cable
Web browser
CP-802x
Ethernet TCP/IP IEC 60870-5-104
Standard patch cable
Web browser
