System Overview
SICAM A8000 / CP-8000 • CP-8021 • CP-8022 Manual Unrestricted 45
DC8-037-2.02, Edition 10.2017
2.1.5.3 External SICAM TM I/O Modules
The external SICAM TM I/O Modules can be used only with CP-8000.
Up to 6 external SICAM TM I/O Modules can be used. Thereby, also a 2-line arrangement is
possible with TM I/O Modules extension cable CM-6810.
Note
With CP-8000 the coupling module CM-6811 is required.

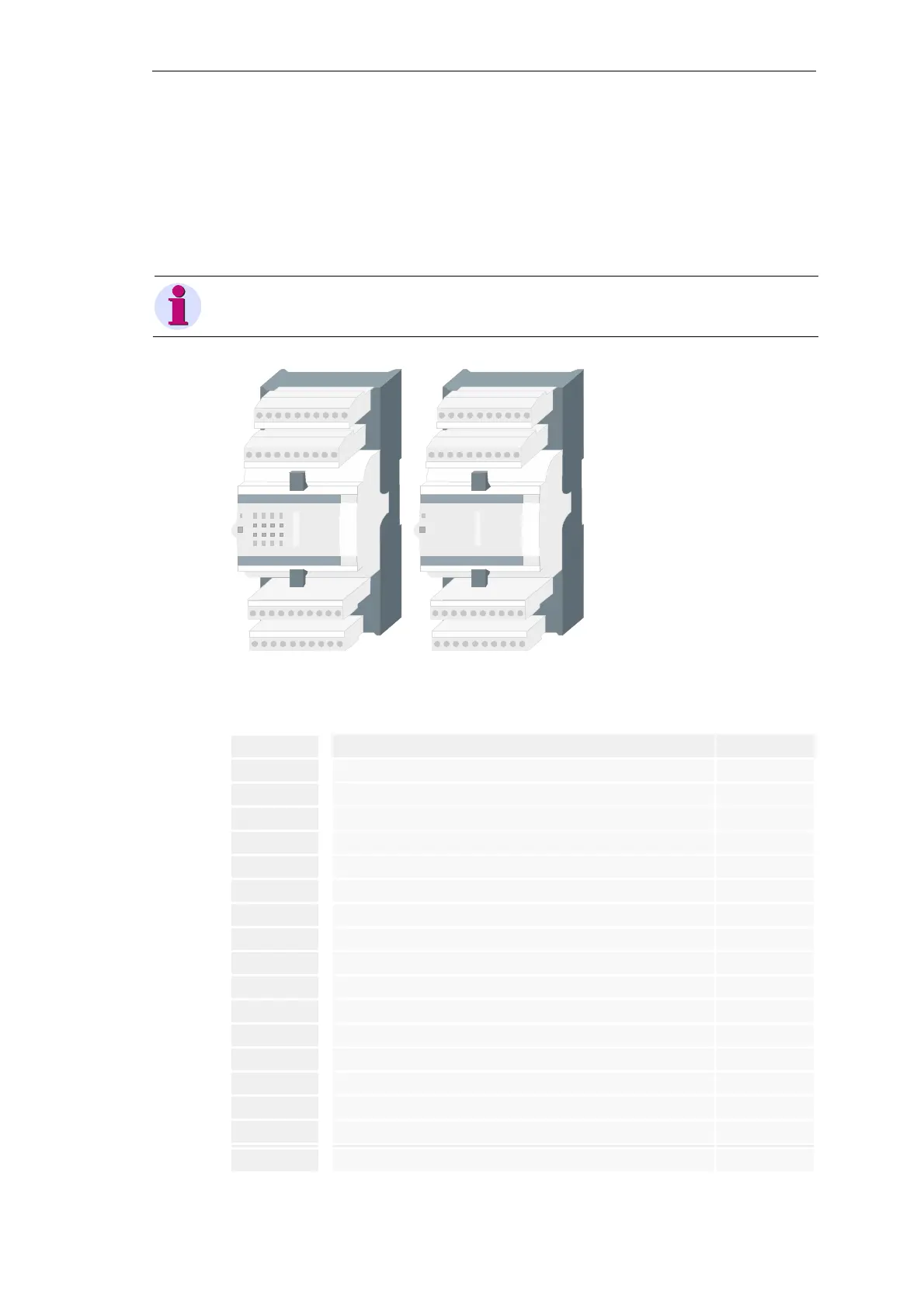

SICAM TM I/O Modules (type overview)
Product Overview
Type Designation Max. power
DI-6100 Binary input 2x8 DC 24 to 60 V 170 mW
DI-6101 Binary input 2x8 DC 110/220 V 170 mW
DI-6102 Binary input 2x8 DC 24 to 60 V, 1 ms 170 mW
DI-6103 Binary input 2x8 DC 110/220 V, 1 ms 170 mW
DI-6104 Binary input 2x8 DC 220 V 170 mW
DO-6200 Binary output transistor 2x8 DC 24 to 60 V 600 mW
DO-6212 Binary output relays 8x DC 24 to 220 V / AC 230 V 800 mW
DO-6220 Checked command out basic module 560 mW
DO-6221 Checked command out basic module measurement 1380 mW
DO-6230 Checked command output relay module 130 mW
AI-6300 Analog input 2x2 ±20 mA/±10 V 480 mW
AI-6307 Analog input 2x2 ±2.5 mA/±5 mA/±10 V 480 mW
AI-6308 Analog input 2x2 ±1 mA/±2 mA/±10 V 480 mW
AI-6310 Analog input 2x2 Pt100/Ni100 480 mW
AO-6380 Analog output 4x ±20 mA/±10 mA/±10 V 1900 mW
TE-6430 Counter input 2x DC 24 to 60 V 600 mW
CM-6811 Coupling module for SICAM TM I/O Modules
