6.11.1.2 Multi-Point Traffic via Glass Fiber Optic
6.11.1.2.1 CP-8000

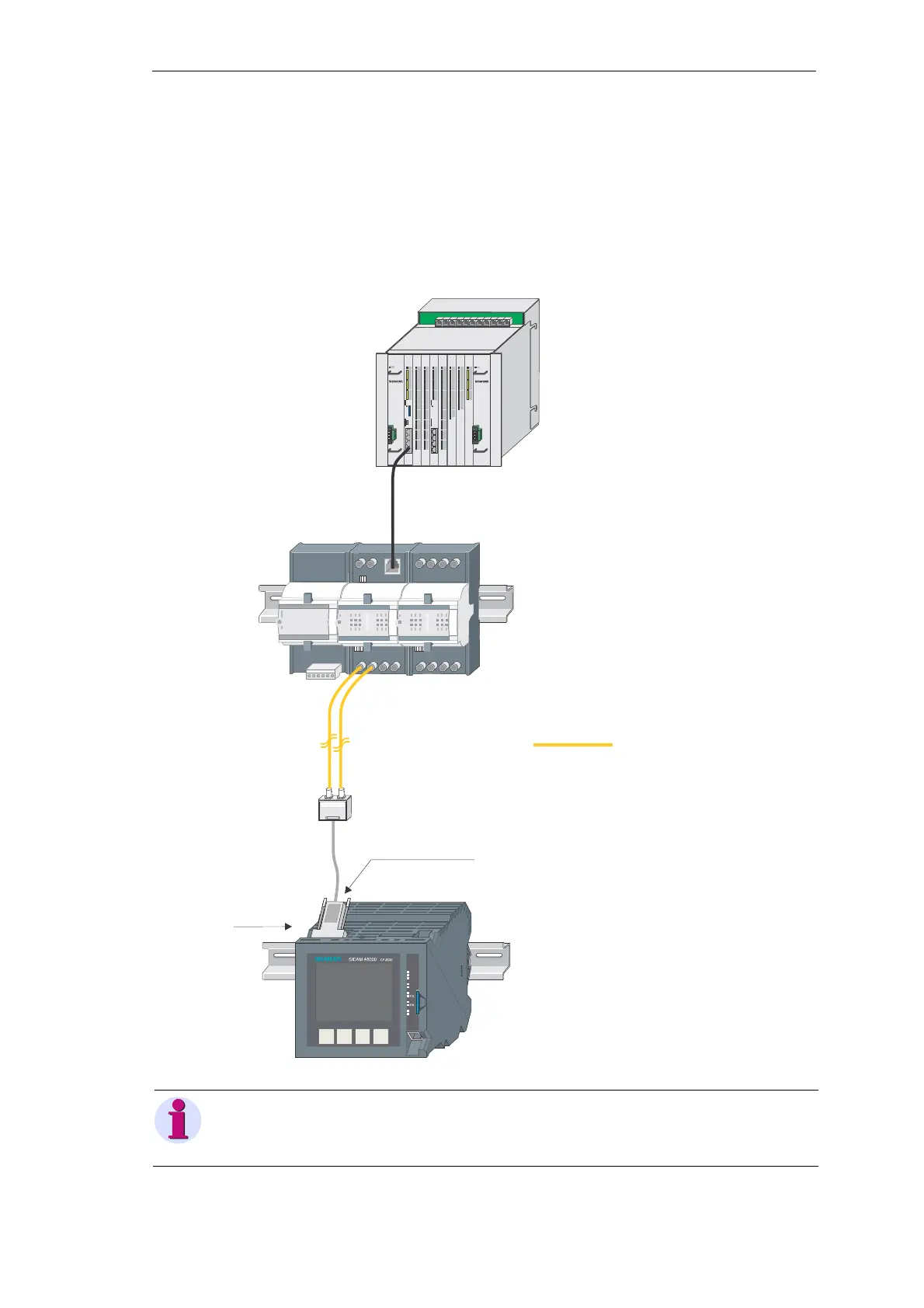

Connection via Star Coupler and CM-0847
Note
CM-0847 replaces CM-0827 which is used only in existing plants.
A maximum of 6 star couplers CM-0822 may be attached next to each other.
F4
F3
F2
F1
POK
RY
ER
ETH
LK1
PK1
RS-232
OH2
RS-485
OH3
ETH
LK4
PK4
SD
X4
CM-0847
(
CM-0827)
PS-663x
CM-0822
SICAM AK SICAM AK
SICAM AK 3
RS-232
(X2)
CP-8000
D-sub/RJ45 adapter
female
Fiber optic cable
max. 1.5 km
