11.1 Operation and Display Elements

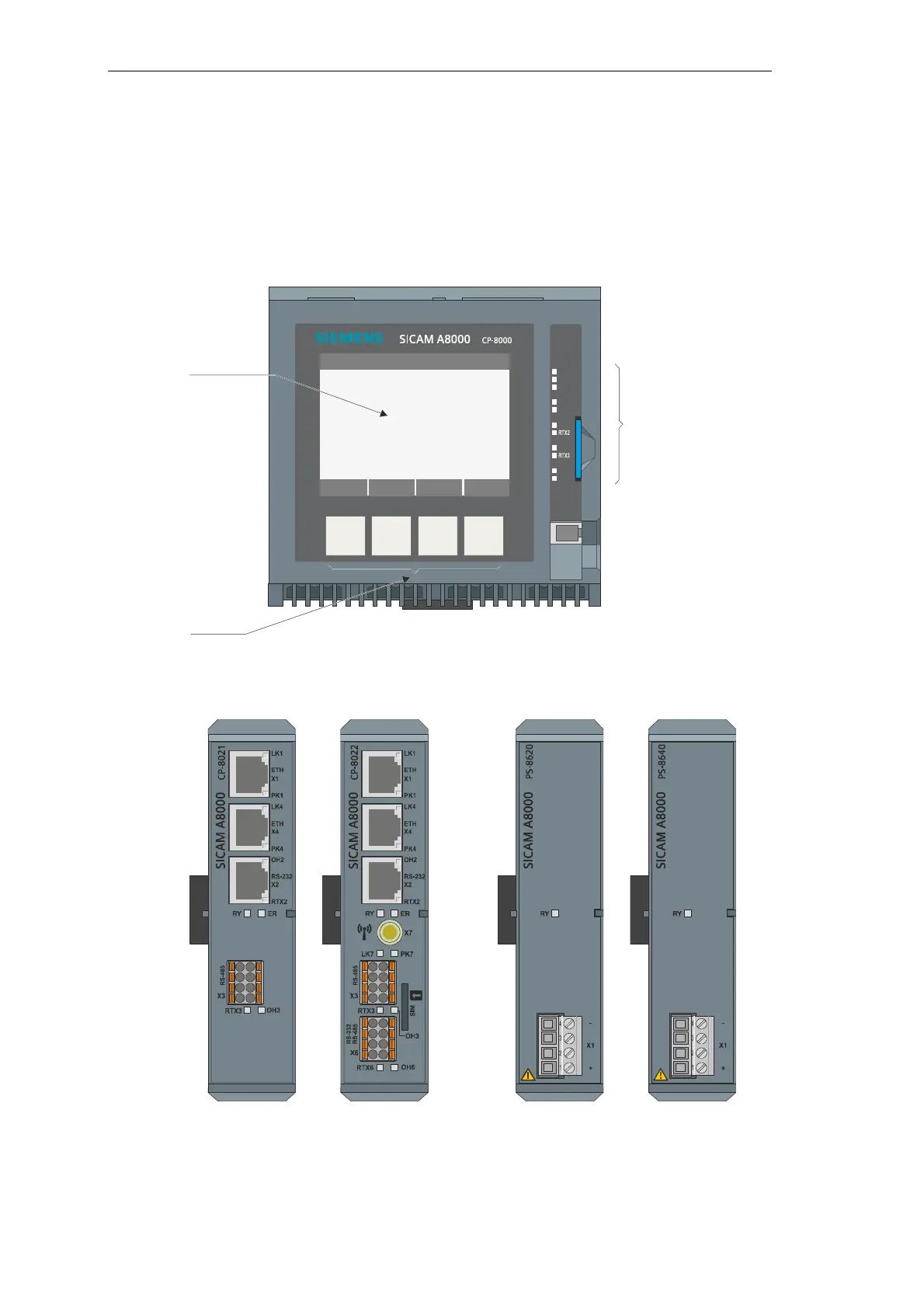

The operation and display elements of CP-8000/CP-802x are located on the front of the re-
spective housing.
CP-8000 provides an LED status display and an integrated LCD text display.
CP-8000
PS-862x and CP-802x provide an LED status display each.
CP-8021 CP-8022 PS-862x PS-864x
F4F3F2F1
POK
RY
ER
ETH
LK1
PK1
RS-232
OH2
RS-485
OH3
ETH
LK4
PK4
SD
X4
Display
Status and
Function LEDs
Keys
