General Information
36 Unrestricted SICAM A8000 / CP-8000 • CP-8021 • CP-8022 Manual
DC8-037-2.02, Edition 10.2017

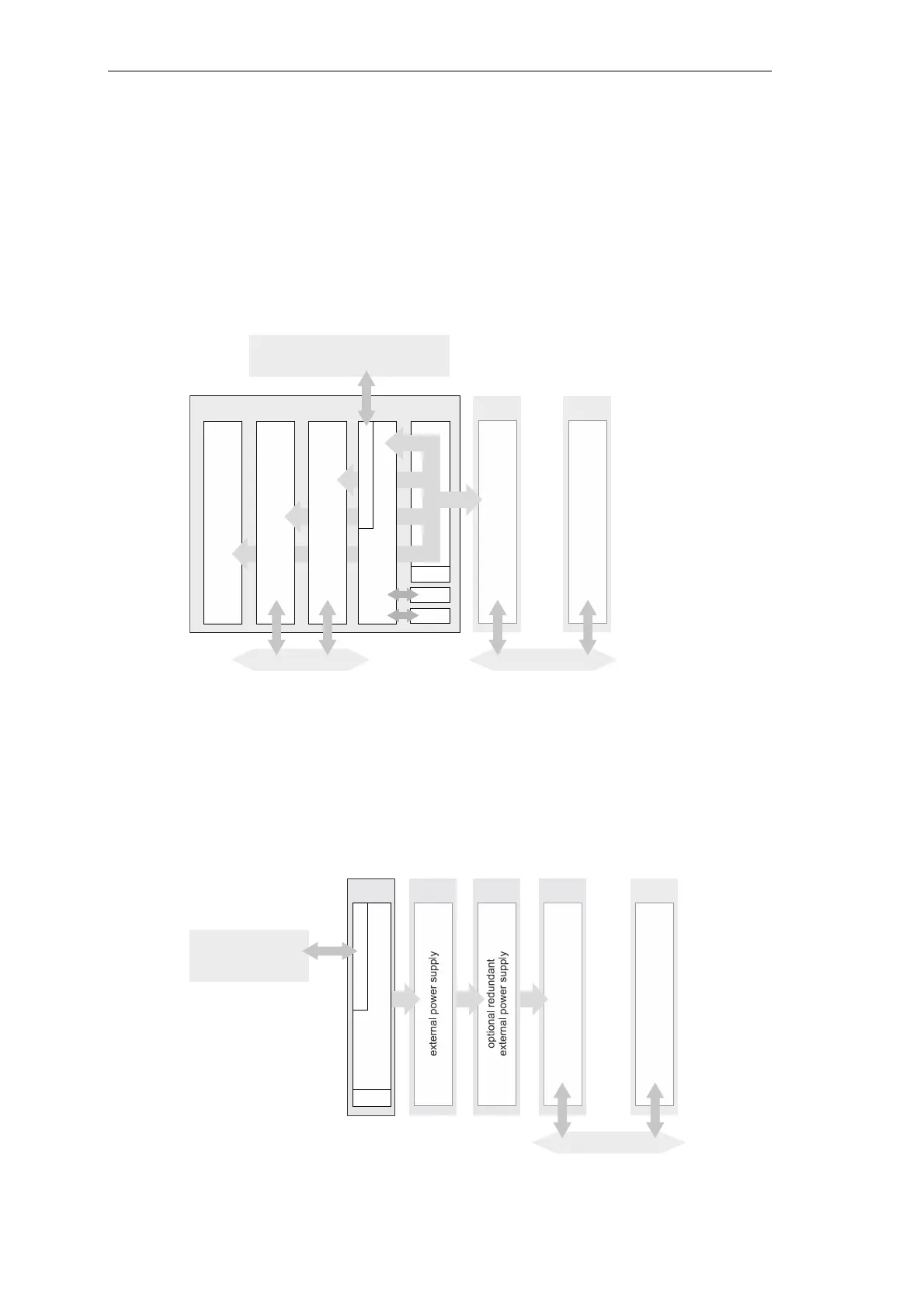

1.3 System Architecture
1.3.1 CP-8000
CP-8000 consists of a power supply, a Master Module, up to 4 protocol elements, and
2 internal I/O Modules.
Additionally, up to 6 external I/O Modules can be attached via a coupling module.
1.3.2 CP-8021 and CP-8022
CP-8021 and CP-8022 consist each of a Master Module with up to 4 optional protocol ele-
ments. The power supply is provided by an external power supply module. For purpose of re-
dundancy also 2 power supply modules are possible.
Additionally, up to 8 external I/O Modules can be attached.
SICAM CP-8000
up to
alternatively up to 6
SICAM I/O modules
TM
external SICAM I/O module 7
external SICAM I/O module 2
ProcessProcess
Keys
Display
SD card
Bus
Master module
Protocol element
internal I/O module 1
internal I/O module 0
internal power supply
Higher-level automation unit
or control center
Bus
Bus
SICAM
CP-802x
Bus
up to
external SICAM I/O module 7
external SICAM I/O module 0
Process
SD Card
Master module
Protocol element
Higher-level
automation unit
or control center
