Engineering via SICAM WEB
342 Unrestricted SICAM A8000 / CP-8000 • CP-8021 • CP-8022 Manual
DC8-037-2.02, Edition 10.2017
9.1.7.3 Selection of the Transmission Facility

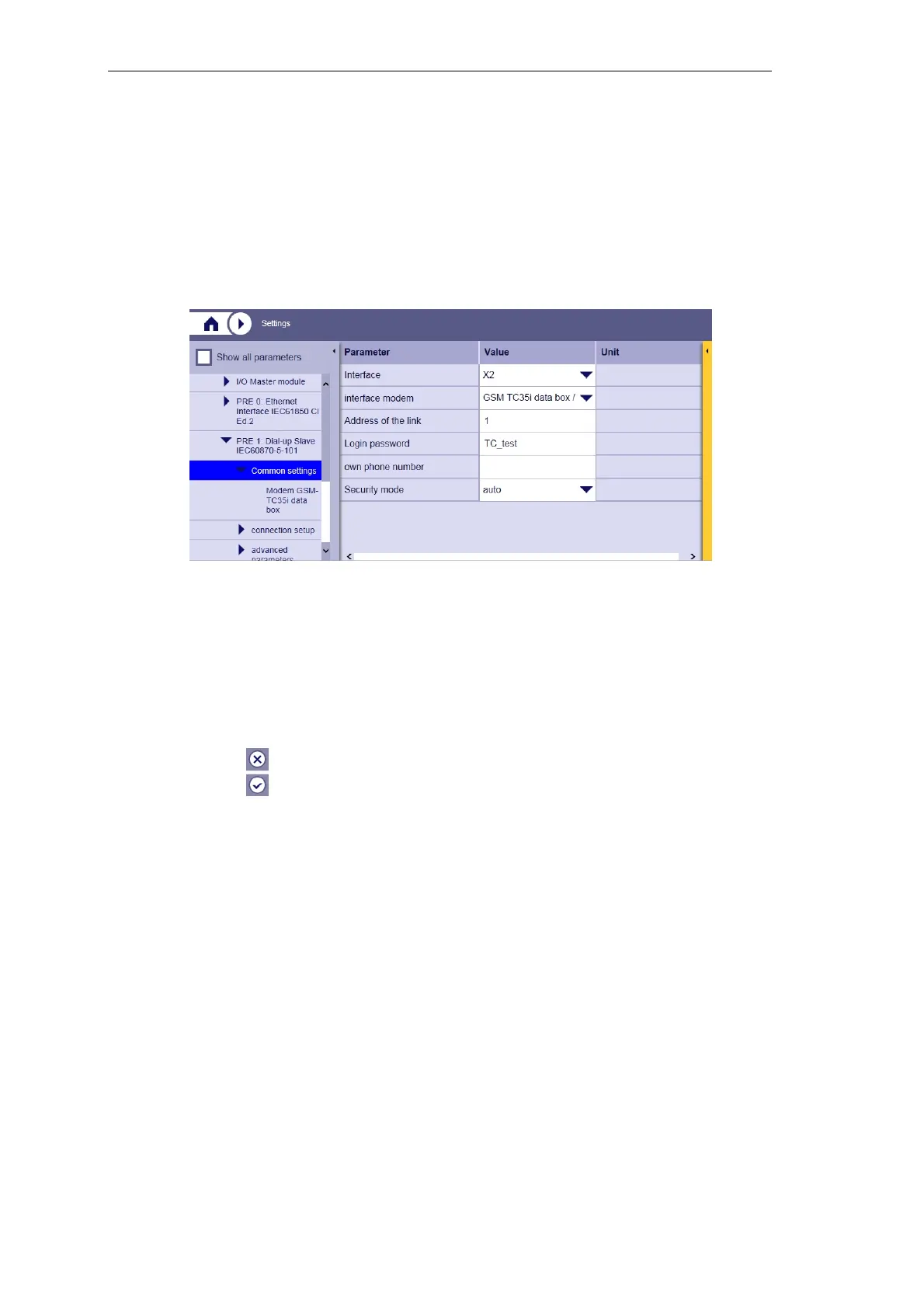

After the assignment of a physical interface, you can select a transmission facility usable for
the respective protocol element with the parameter Interface modem.
Dependent on the selected transmission facility, in the directory tree under
SICAM A8000 CP-80xx | Master module | PRE <0…3>: <protocol> | Common settings
a dynamic subdirectory is created.
In this subdirectory, you can adapt the settings on the protocol element to the values of the
transmission facility. Example: the speed for the transmission to the remote station by means
of parameter Baud rate.
You find further details thereto in the manual SICAM RTUs Common Functions Protocol Ele-
ments, respectively in the section "Optimized Parameters for selected Transmission Facili-
ties".
After saving the settings a restart request appears.
• Click , if you want to change further parameters
• Click to perform a restart
