1.1.6 Expandibility
If the scope of signals of a substation should ever be insufficient, additional I/O Modules can
be equipped or further CP-8000/CP-802x can be connected via the communication interfaces.
Freely programmable user programs for local control or regulating functions round out the
versatile attributes of the system.
F4F3F2F1
POK
RY
ER
ETH
LK1
PK1
RS-232
OH2
RS-485
OH3
ETH
LK4
PK4
SD
X4

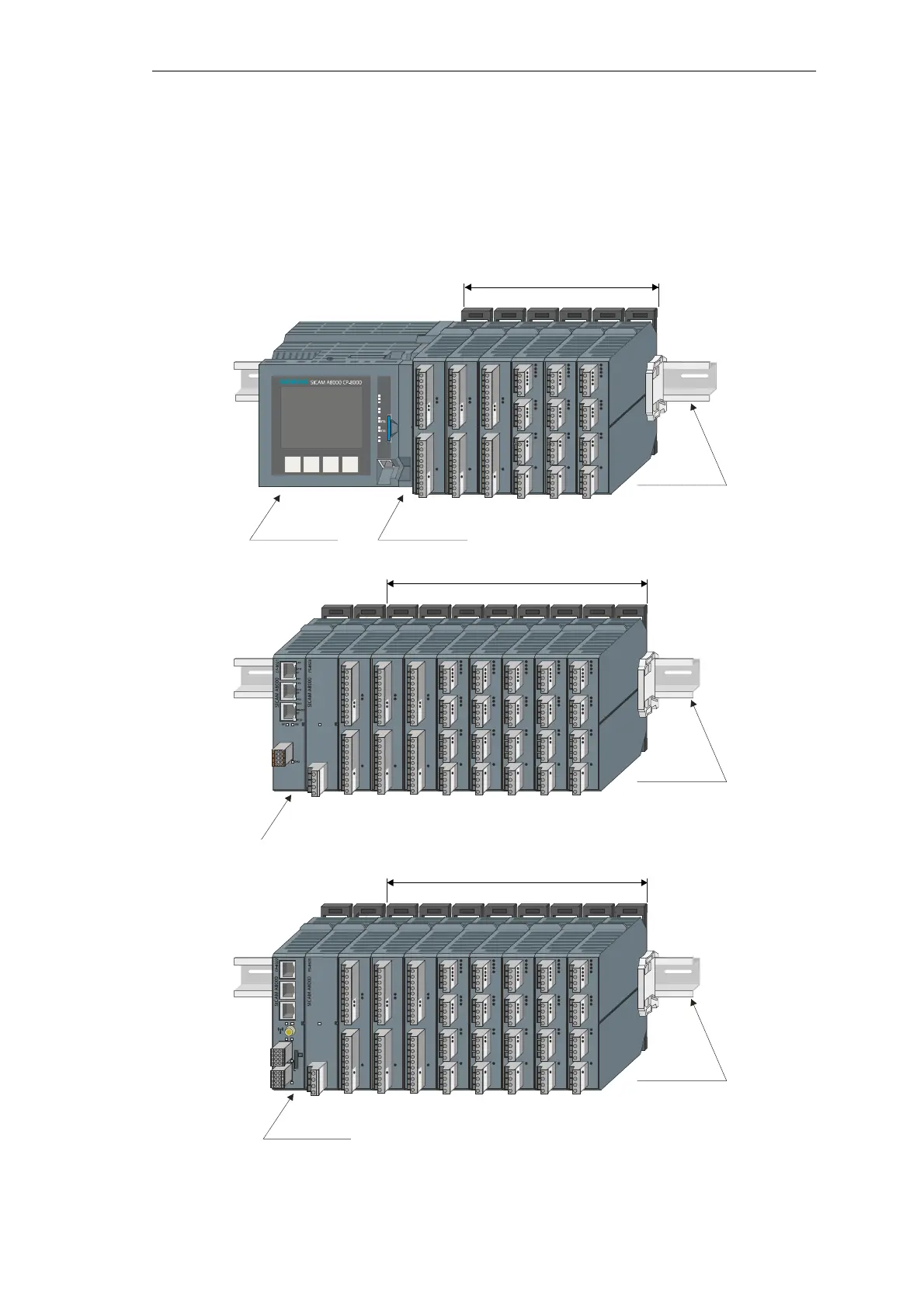

CP-8000
max. 6 I/O modules
TS35 rail
Coupling module
CP-8021
max. 8 I/O modules
TS35 rail
CP-8022
max. 8 I/O modules
TS35 rail
