6.5.4 Coupling of external SICAM I/O Modules
CP-802x can be expanded by up to 8 external SICAM I/O Modules. Thereto the following
steps are essential:
• Mounting of the bus connector for SICAM I/O Modules
• Mounting of the SICAM I/O Modules
6.5.4.1 Mounting of the Bus Connector for SICAM I/O Modules
Each SICAM I/O Module is equipped with a bus connector (CM-8812). This must be equipped
separately from the I/O Module. You must disconnect the bus connector before mounting.

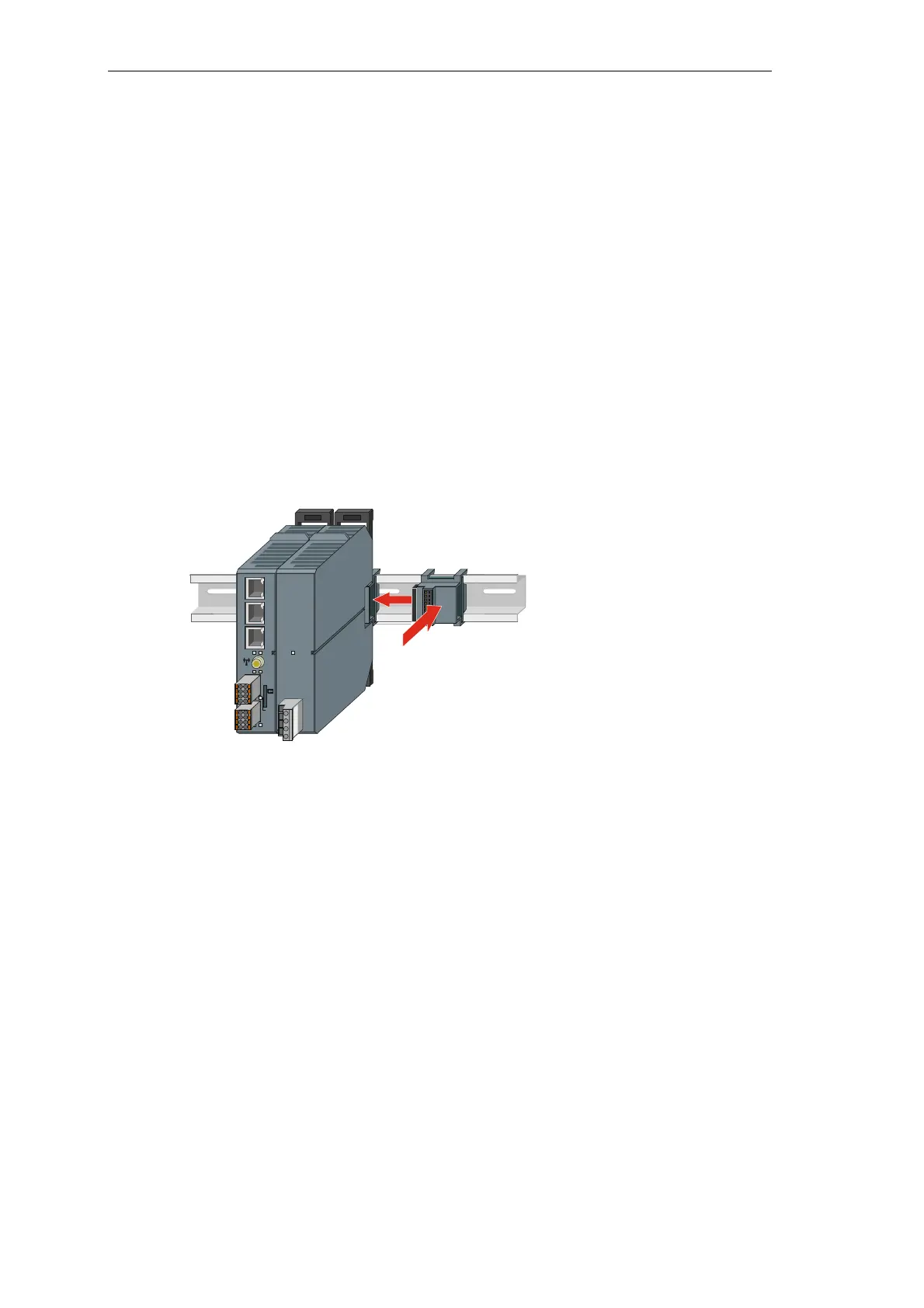

Click the first bus connector right beside the Power Supply Module on the DIN rail j and
push it into the bus plug of the Power Supply Module k. Both elements must be aligned
seamlessly.
Afterwards you can attach the bus connectors of further SICAM I/O Modules in the same way.
