Preparing the Engineering
274 Unrestricted SICAM A8000 / CP-8000 • CP-8021 • CP-8022 Manual
DC8-037-2.02, Edition 10.2017

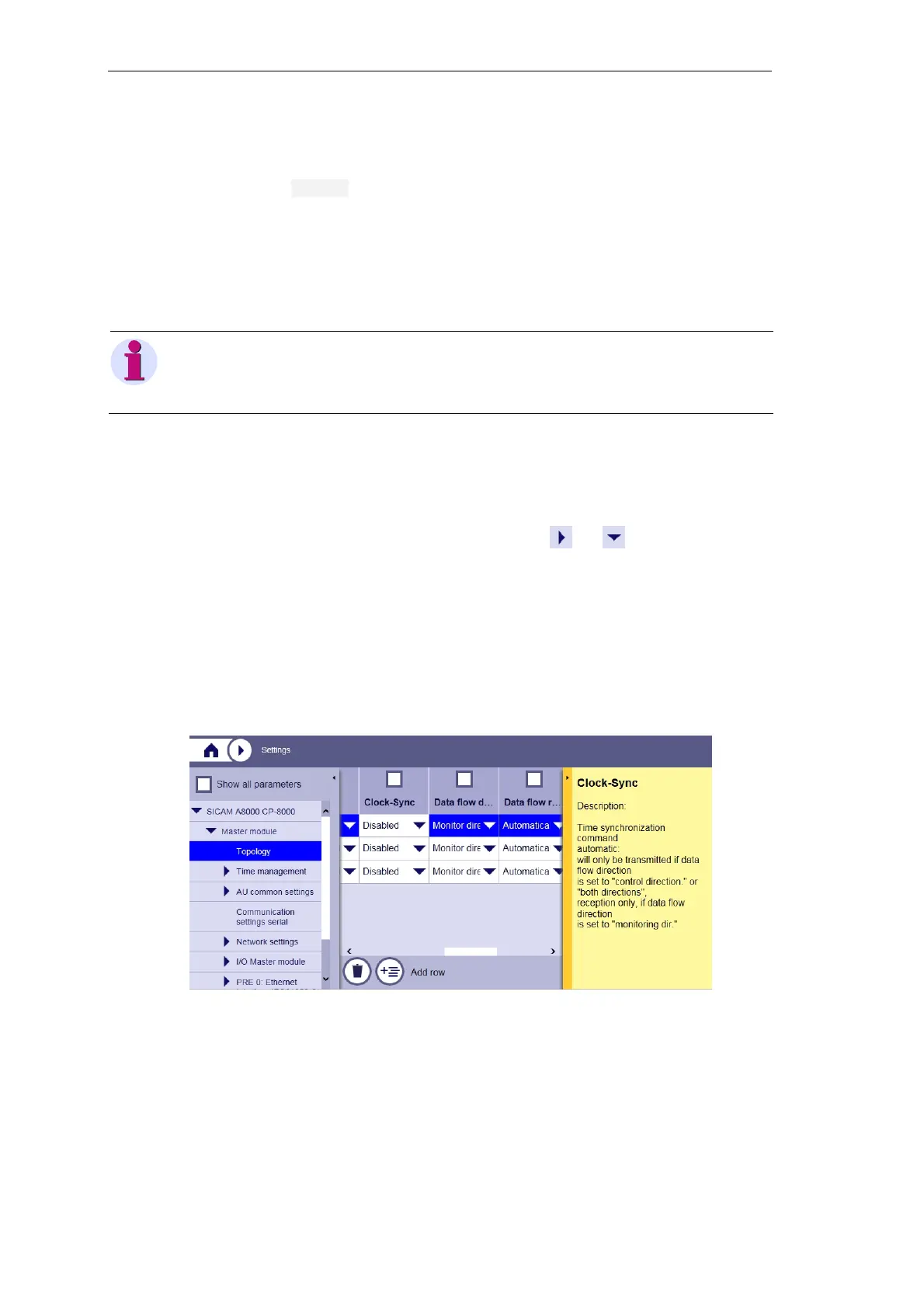

7.8.2.3 Parameter Entry
In the submenu Settings you find all configuration data of the device.
You have the possibility to change configuration parameters. In the left window area, all con-
figuration data is shown as a hierarchical directory tree:
• CP-8000/CP-802x
─ Master Module
Note
At present, a modification of periphery parameters (node I/O Master Module) is not possible.
At present, navigation is possible via mouse only (via finger in case of touch screen).
In order to carry out modifications, you have to log in as administrator.
This is how to retrieve information about parameters:
• In the directory tree, select any node
• You can expand or collapse each directory by clicking or
To the right of the directory tree, all parameters of the selected parameter group or table pa-
rameters (such as topology information, dataflow messages and so on) are shown in a table.
• Select the parameter group or parameter you want
• In the table, click on a value of a parameter
• For showing/hiding the description of the selected parameter, click on the yellow bar locat-
ed to the right of the work area
